High-Flow Bag Filters for Air-Conditioning Condensate Water Filtration

             16th Aug. 2025, A large commercial complex in Middle East generates a significant amount of condensate water from its central air-conditioning system. The condensate water is directly fed into the cooling tower make-up water line. However, because the condensate contains dust, microorganisms, rust particles, and other suspended impurities, the following issues were frequently observed:

• Pipeline clogging and reduced water flow
• Decline in heat-exchange efficiency
• Frequent blockage of cooling tower spray nozzles
• Increased maintenance requirements for downstream treatment equipment
• Higher energy consumption of the HVAC system

To improve system stability and reduce maintenance costs, the client sought an efficient pre-filtration solution with requirements for large flow capacity, low pressure drop, easy maintenance, and low operating cost.

Filtration Requirements Analysis

Condensate Water Characteristics：

Technical Requirements：

• High-flow filtration: ≥40–50 m³/h per filter element
• Filtration accuracy: 1–20 μm
• Pressure drop <0.1 bar
• Fast replacement and continuous operation capability

Filtration Solution: High-Flow Bag Filter System

The system uses High-Flow Bag Filters + Stainless Steel Housing, replacing traditional filter bags or standard PP cartridges.

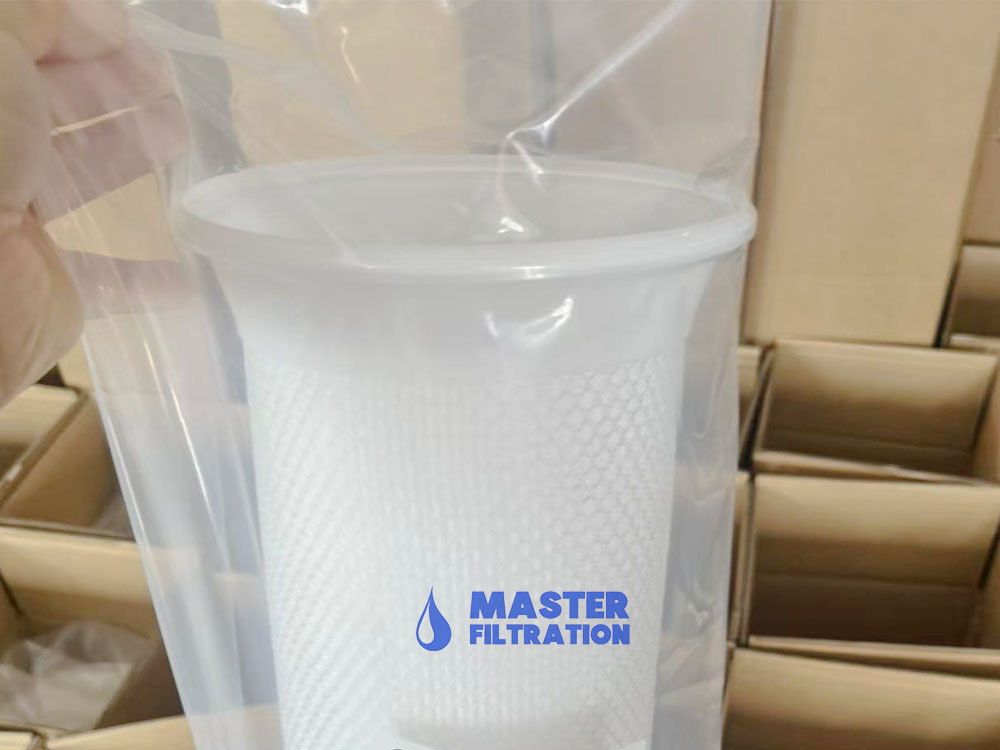

(1) Filter Element Advantages

Pleated high-surface-area design, offering 3–5× the filtration area of traditional bags
Wide micron rating options (0.5–50 μm)
PP construction with excellent corrosion resistance
O-ring seal to ensure no bypass leakage

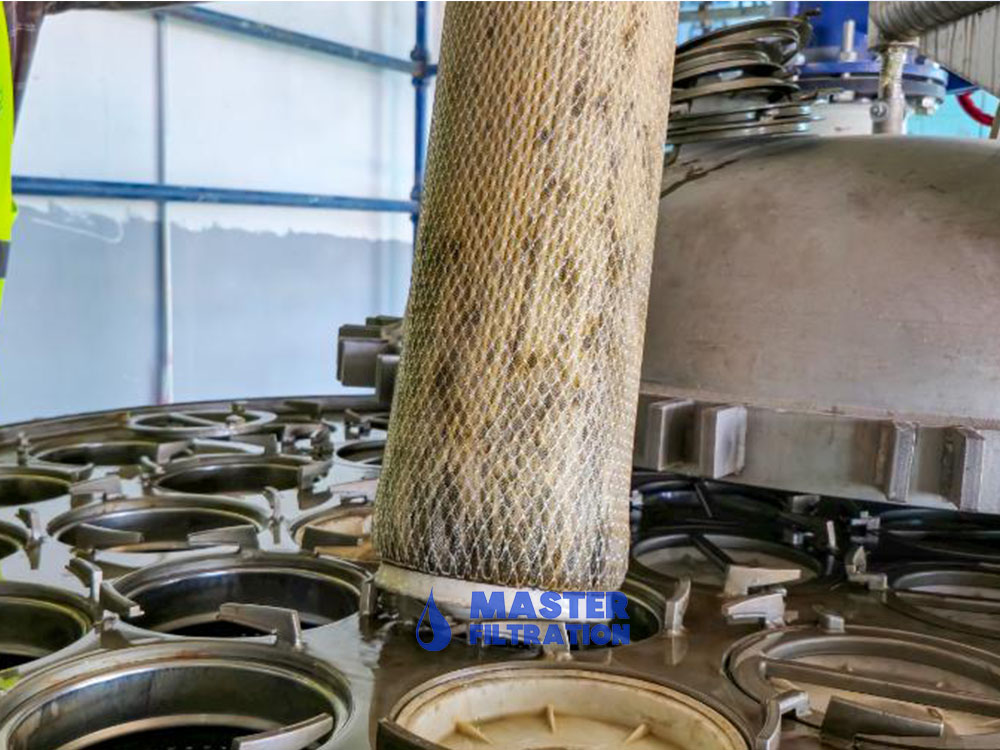

(2) Housing System Features

21 high-flow filter elements per vessel
Small footprint with large flow handling capacity
Quick-opening cover for 3–5 minute element replacement
Full stainless-steel construction for long service life

Operational Results

After a full cooling season of operation, the system delivered excellent performance:

(1) Significant Improvement in Water Quality
Turbidity reduced from 20 NTU → 2–5 NTU
Cooling tower nozzle blockage greatly reduced
Pipeline sediment decreased by ~40%

(2) Enhanced System Stability
Cooling tower operation became more stable
Circulation pump pressure loss reduced by 10–15%
Backwash frequency of downstream filters (sand filters/UF) decreased by ~30%
Overall HVAC energy consumption reduced by 5–8%

(3) Lower Operating Cost
Filter replacement cycle extended from 7 days → 30–45 days
Maintenance labor reduced by ~70%
Annual filtration material cost reduced by 20–30%
