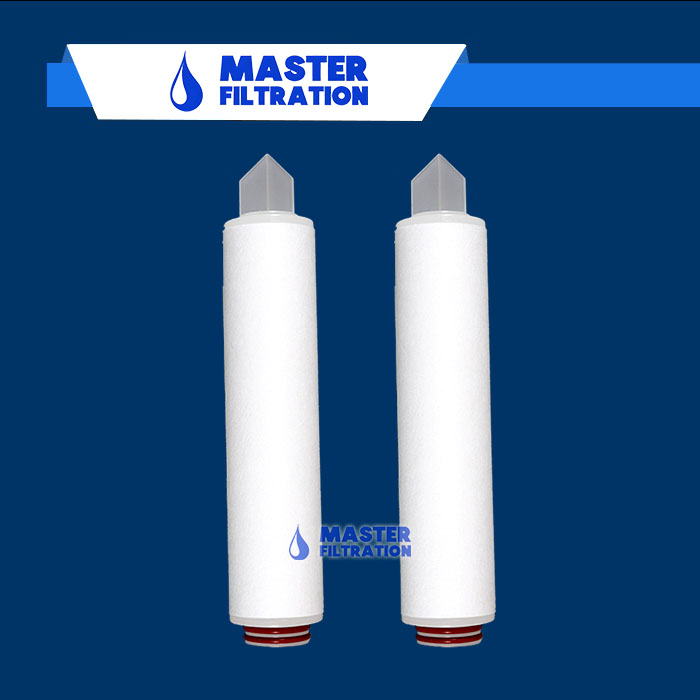

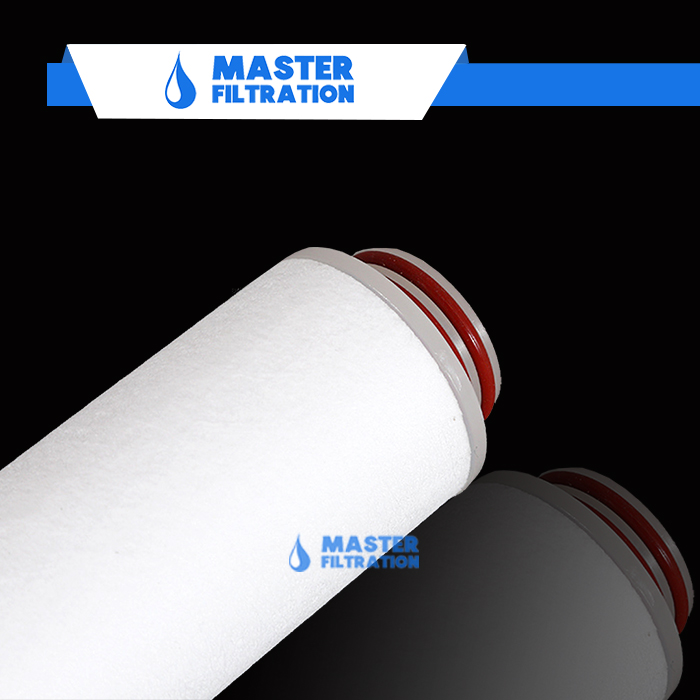

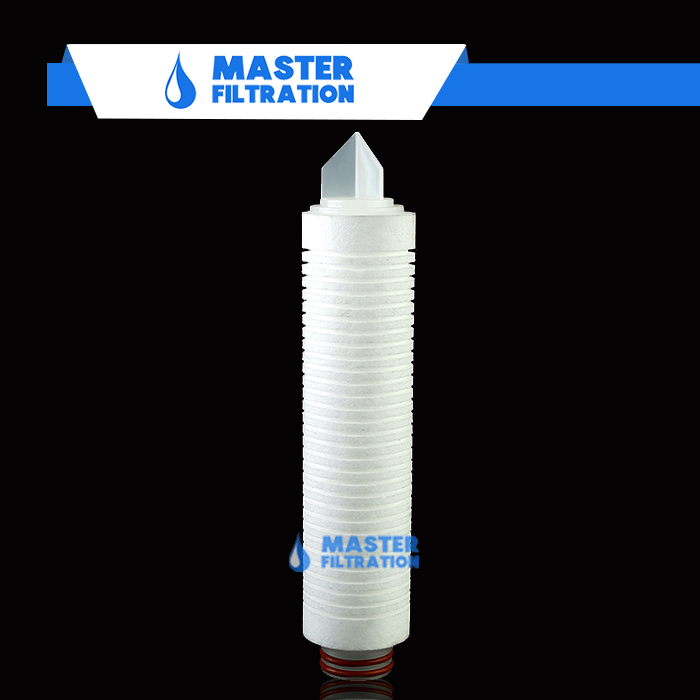

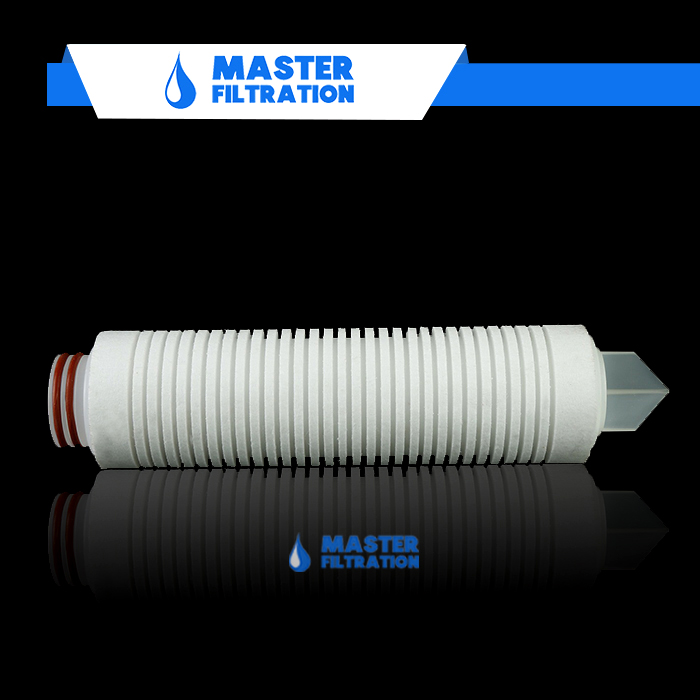

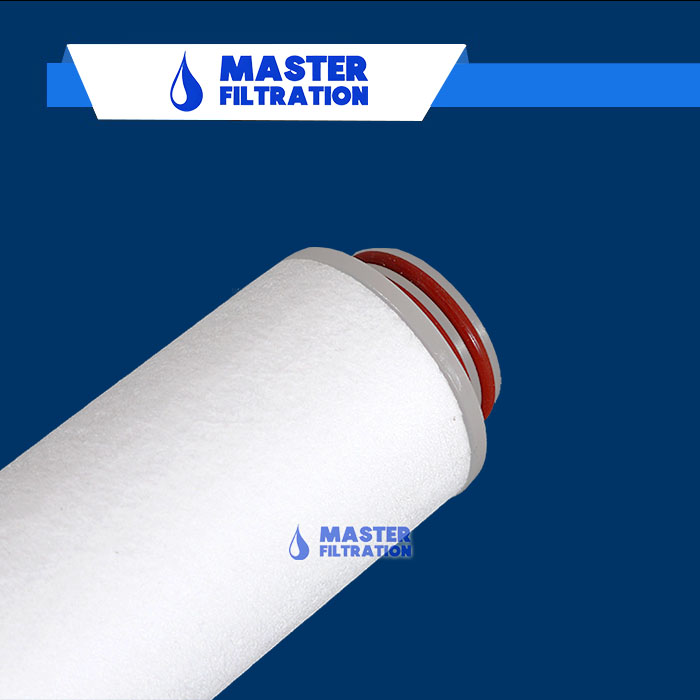

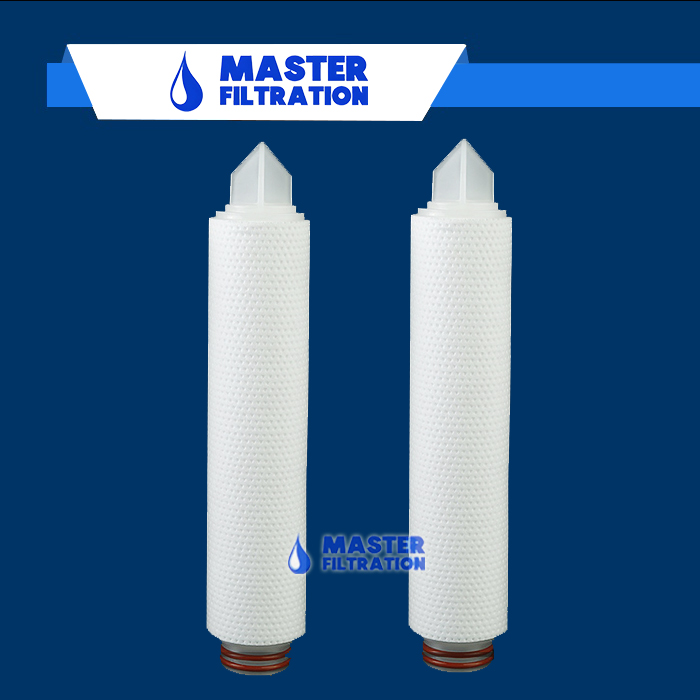

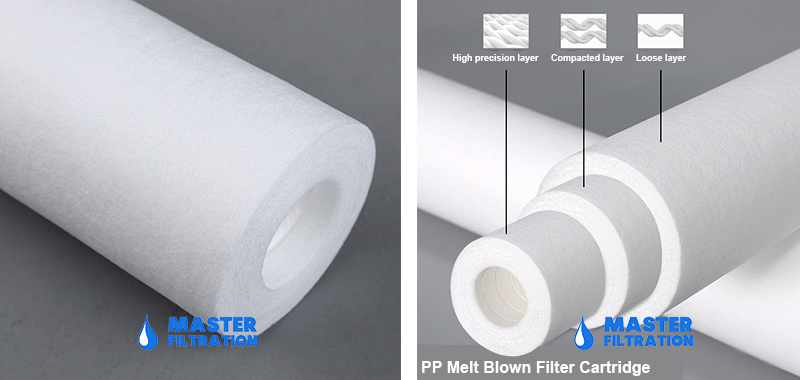

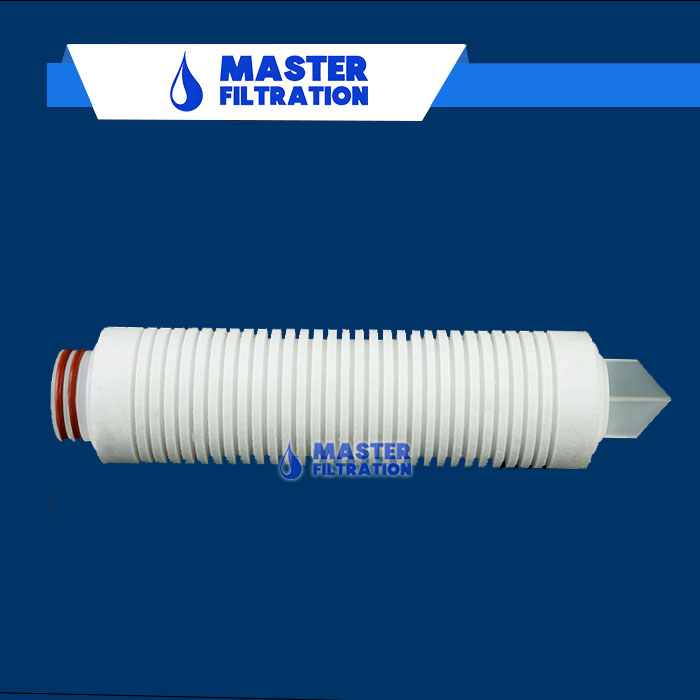

Master Filtration MFRF Series 222 226 End Cap PP Melt Blown Filter Cartridge, with 222, 226 and other various end cap, is suitable for different kinds of filter housing. By heating and melting, spinning and traction technology, the polypropylene (PP) fibers were used to bond themselves to form a three-dimensional curved microporous structure with larger surface area. The fiber diameter and density change controllably in the diameter direction of the filter cartridge, and thus it forms a multi-layer gradient pore dense inside and loose outside structure
.
The special multi-layer structure makes particles be intercepted layer by layer in liquid filtration.
The filter cartridge with excellent chemical resistance, high contaminant capacity is widely is used in water filtration, RO pre filtration, Oil Filtration and other industry fields.
- 222, 226 various end cap for different filter housing
- Highly effective in filtering certain VOC's, rusty, red worm
- Graded density pore structure for deep filtration
- Withstand mildly corrosive liquids and chemicals
- No adhensive to second pollution
- Free of surfactants, binders, and adhesives
- Low-pressure drop. High performance
- Good dust holding capacity
- Economical and efficient
- Longer service life
|
Cartridge Dimensions |
Length |
5''- 127mm,10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm |
|
Outer Diameter |
60mm ~115mm |
|
|
Inner Diameter |
28mm, 30mm |
|
|
Filtration Area(m2) |
0.4 m2 per 10" |
|
|
End cap: |
DOE, 226, 222, and other Ends |
|
|
Materials Of Construction |
Filter Media: |
Melt Blown Polypropylene（PP） |
|
Micron Rating: |
1, 5, 10 ,20, 50, 70,100um |
|
|
Inner core: |
Polypropylene（PP） |
|
|
O-rings/gaskets(Only for 226, 222 Ends): |
Silicone, Nitrile, EPDM, Viton |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 50℃(122°F) |
|
Max.Operating Temperature.: |
80°C (176°F) at △P≤ 1.0 bar (14 psi) |
|
|
Max. Differential Pressure |
|
|
|
Normal Flow direction: |
4.0 bar (58psi) at 25°C (77°F) |
|
|
Reverse flow directi on: |
2.0 bar (29psi) at 25°C (77°F). |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
End Cap Connection |
O.D |
Seal material |
Core |
|
MFRF |
5=5" |
1=1μm |
A=226/FIN |
60=60mm |
S=Silicone |
P=PP |
|
10=10" |
3=3μm |
B=226/Flat |
63=63mm |
E = EPDM |
Blank=No core |
|
|
20=20" |
5=5μm |
C=222/FIN |
115=115mm |
N=NBR |
|
|
|
30=30" |
10= 10μm |
D=222/Flat |
|
V = Viton |
|
|
|
40=40" |
20= 20μm |
|
|
|
|
|
|
50=50" |
50= 50μm |
|
|
|
|
|
|
60=60" |
70= 70μm |
|
|
|
|
|
|
|
100= 100μm |
|
|
|
|
|
|
|
150= 150μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
