Master Filtration Series

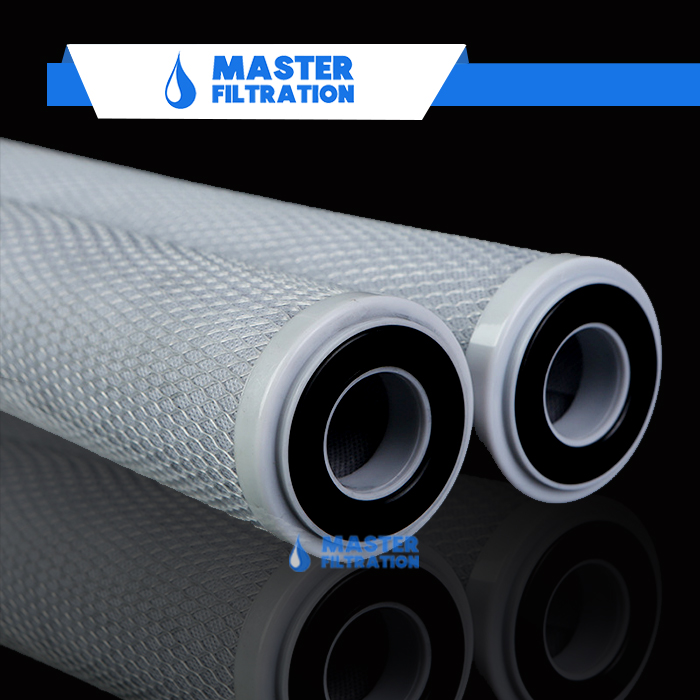

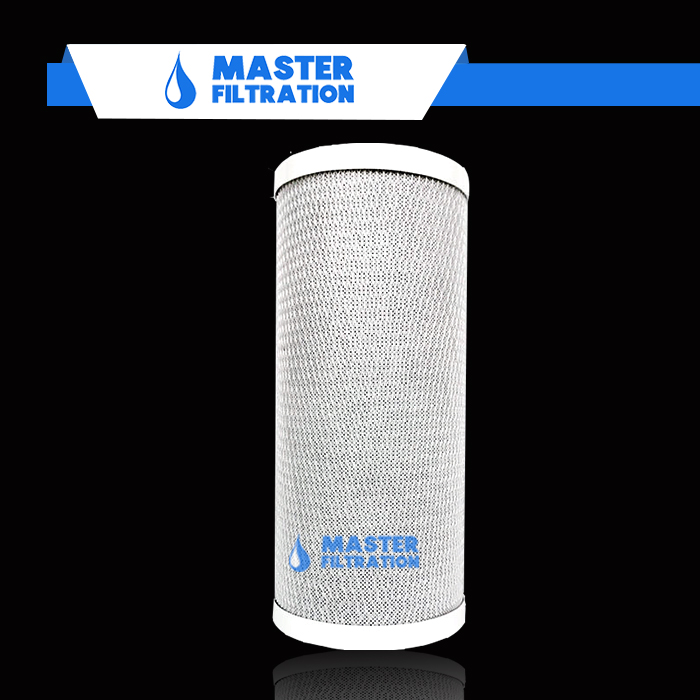

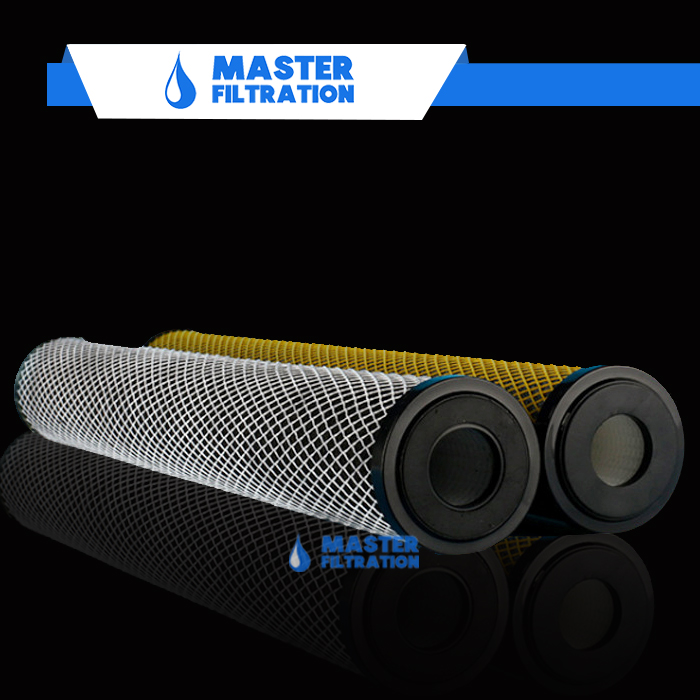

MFCT Series Activated Carbon Filter Cartridge

Activated Carbon Filter Cartridge uses fruit, coconut shell or coal activated carbon as raw materials, with special processing, can effectively remove VOC’S, pesticides, chlorine and other radioactive substances in water, sediment reduction down to 5 microns and has decolorization, odor removal function. These cartridges are manufactured entirely from safety compliance materials.
Request a Quote
View Specs





Master Filtration MFCT Series Activated Carbon Filter Cartridge uses fruit, coconut shell or coal activated carbon as raw  materials, with special processing, can effectively remove VOC’S, pesticides, chlorine and other radioactive substances in water, sediment reduction down to 5 microns and has decolorization, odor removal function. These cartridges are manufactured entirely from safety compliance materials. They are suitable for potable water filtration, as well as several industrial, commercial & food service applications.

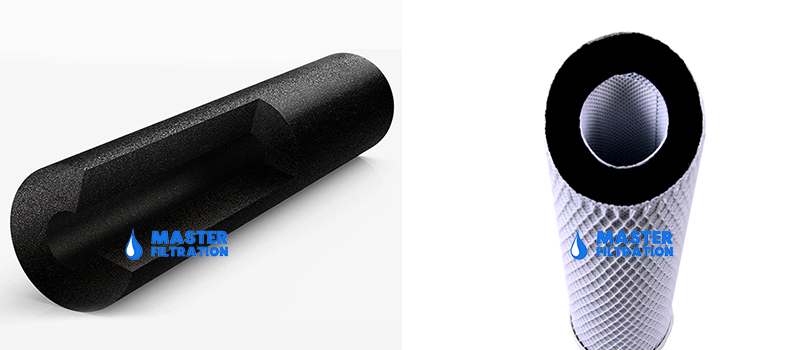

The inner PP frame strengthens the filter cartridge anti-pressure ability. Covered frame with two layer PP microfiber felt blocks larger than 10 microns particles. The activated carbon outside is also clad two layer PP microfiber felt for trapping 10-20 micron particles in the liquid, which achieves CTO filter cartridge dual filtration and purification function.











  • Highly effective in filtering certain VOC's, Chlorine, taste, and odor
  • No leaching carbon ash, good adsorption capacity
  • Free of surfactants, binders, and adhesives
  • Low-pressure drop. High performance
  • Extra dust holding capacity
  • Longer service life







Cartridge Dimensions

Length

10"- 254mm, 20"- 508mm, 30"-762mm,40"- 1016mm

Outer Diameter

65, 70,115mm

Inner Diameter

28, 30mm

Filtration Area(m2)

0.4 m2 per 10"

Materials Of Construction

Filter Media:

Coal Activated Carbon/Coconut Shell Carbon

Micron Rating:

5, 10 um

Inner core:

PP

Outer Cage:

Polypropylene Non-Woven Cloth

End caps:

PP

Orings/gaskets:

Silicone

Removal Efficiency:

90%

Operating conditions

Normal Operating Temperature:

 55(140)

Normal Flow direction:

4.0 bar (58 psi) at 25 (77)

Reverse flow direction:

2.0 bar (29 psi) at 25 (77).

Others

Flow rate:

 300L/H 10"

Surface area:

800~1000/g

Carbon tetrachloride adsorption rate:

50~60%

Benzene adsorption capacity:

 20~25%

Iodine adsorption value:

800~1100mg/g

Methylene blue adsorption value:

14~16ml/g

Remark

We are factory and support customized specifications







Model

Length

Removal Rating

Diameter

MFCT

  975=9.75"

0.5=0.5μm

A=OD65mm; ID30mm

987=9.87"

 1=1μm

B=OD70mm; ID28mm

10=10"

5=5μm

C=OD115mm; ID28mm

   20=20"

10=10μm



30=30"
