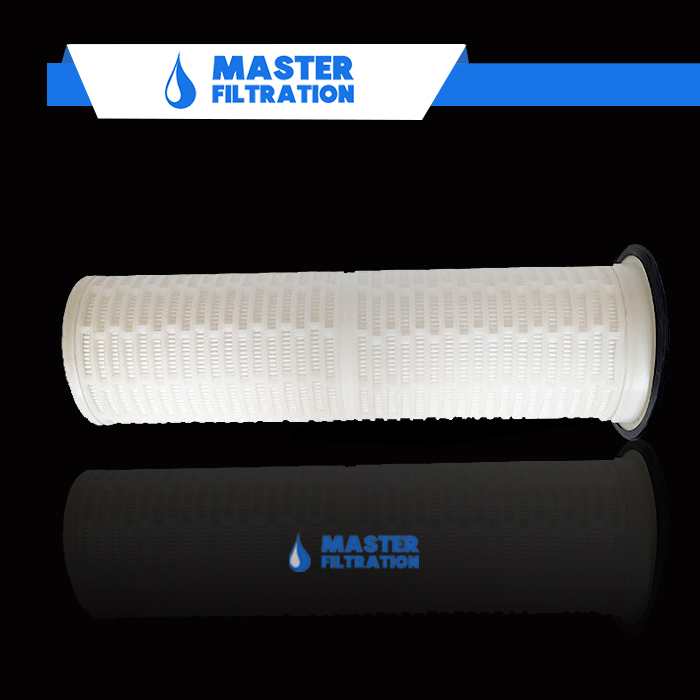

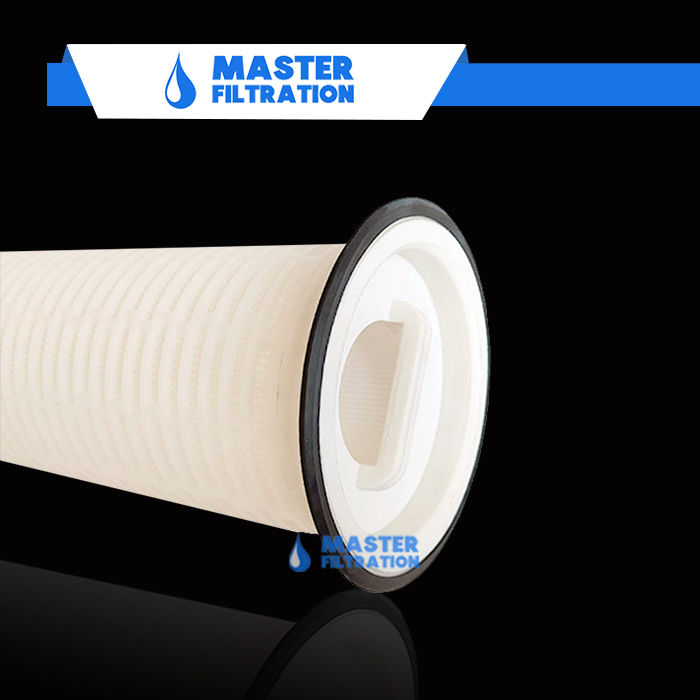

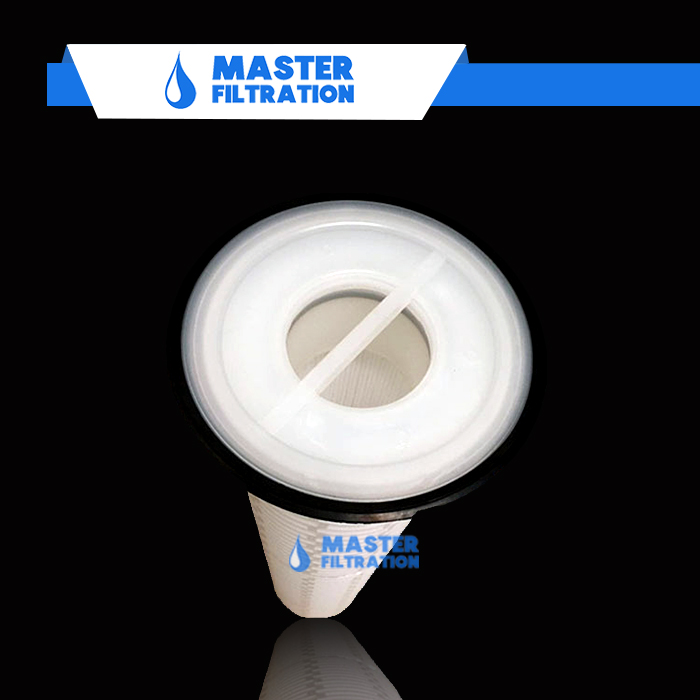

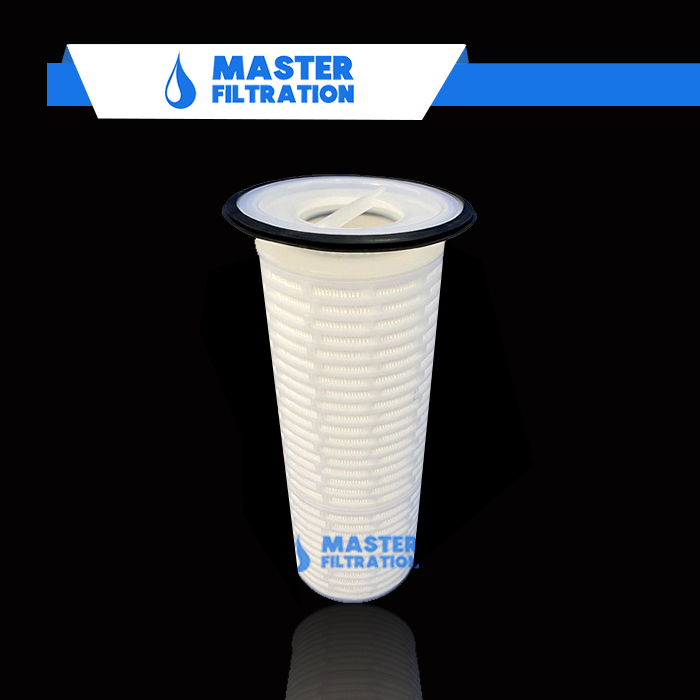

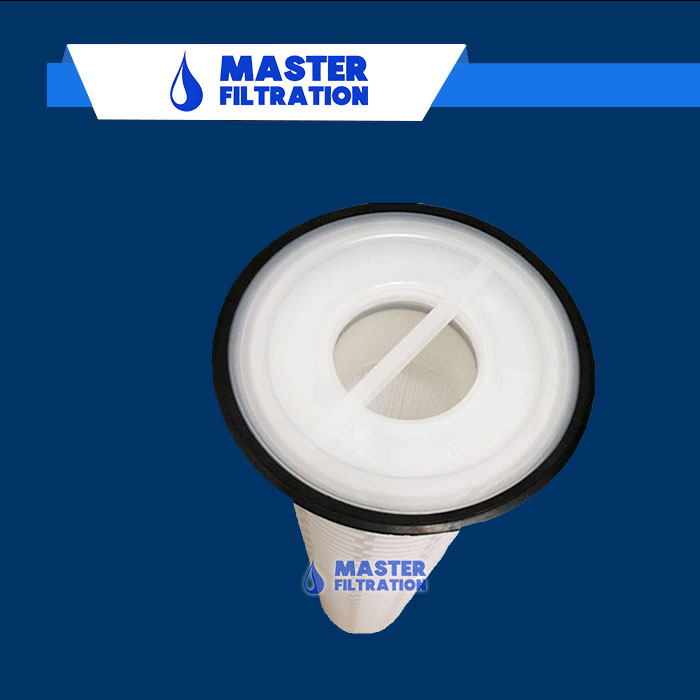

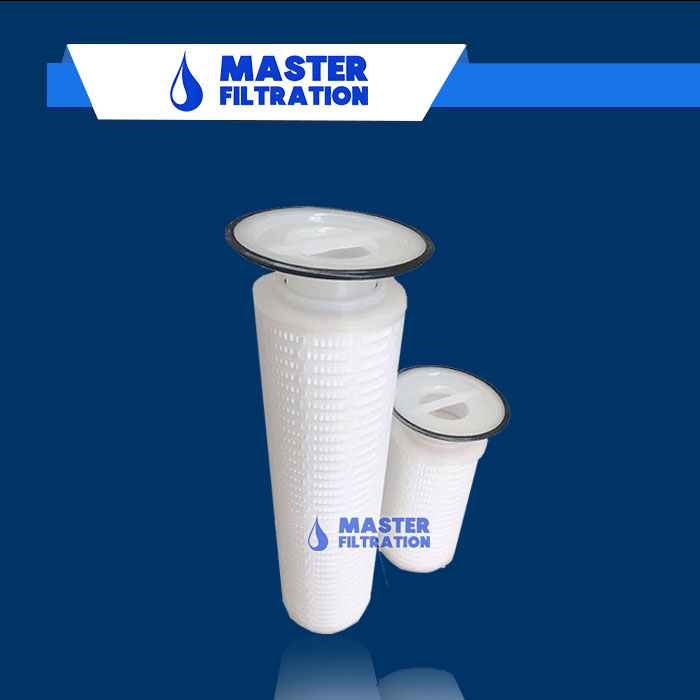

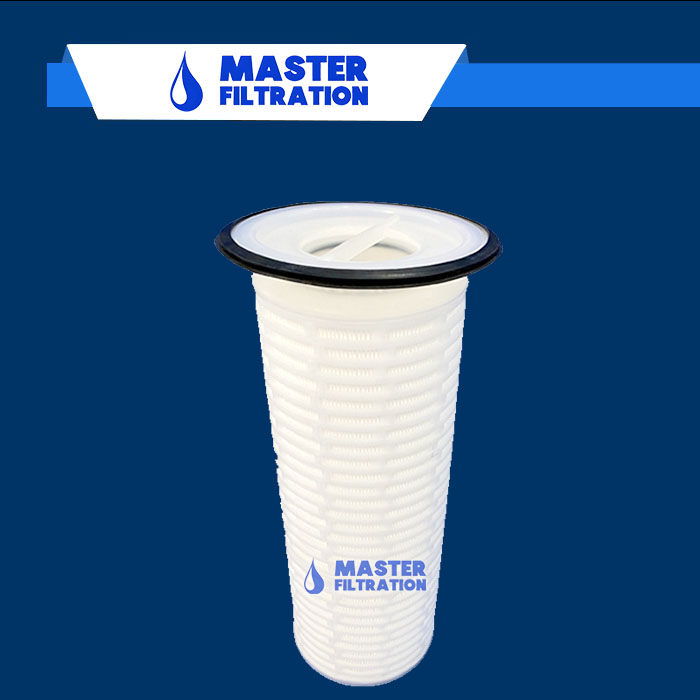

Master Filtration MFHD Series Bag Type High Flow Pleated Filter Cartridge, large filtering area is the normal filter bag 7~8 times. High large flow ability, and long lifetime. Multilayer gradient pore filter structure improve high filtration efficiency. Double sealant O-seal and U-seal ring design eliminates bypass leakage. From the inside to outside fluid flow direction to ensure particles are trapped in the filter cartridges.This bag type high flow filter cartridge can be directly installed in the bag type filter housing to reduce the replacement frequency and maintenance cost. it is used to replace #1 & #2 filter bag.
- Multilayer gradient pore design, deep filtration
- High flow and high contamination
- Directly replace #1 & #2 liquid filter bag
- From inside to outside direction, block particles in filter cartridge
- Multiple precision and length selectable
- Lower labor and maintenance cost
|

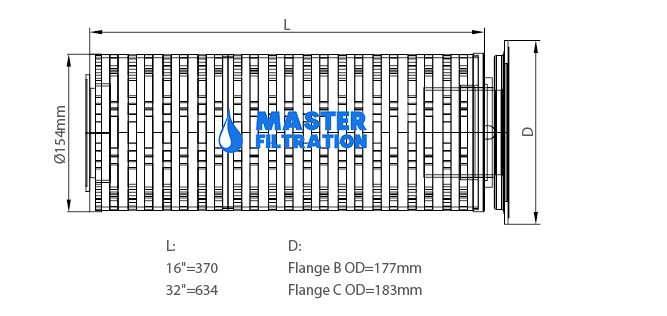

Cartridge Dimensions |
Length |
16 ”(370mm) replace 1# liquid filter bag |
|
|
32 ”(634mm) replace 2# liquid filter bag |
|
|
Outer Diameter |
6.0 inches (152mm) |
|
|
Micron Rating: |
1 5 10 15 20 40 70 100 um (customized) |
|
|
Materials |
Filter Media: |
Polypropylene pp, fiber glass |
|
Support Layers: |
Polypropylene pp |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
82℃ (PP) ; 121℃ (Fiber glass) |
|
|
Max. Differential Pressure |
3.44bar@82℃ (PP); 3.44bar@121℃(Fiber glass) |
|
|
Recommended replacement pressure : |
2.4Bar @ 20℃ |
|
|
Remark |
We are factory and support customized order |
|
|
Model |
Length |
Removal Rating |
Seal material |
Filtration Type |
Filter housing Type |
|
MFHD |
16=16" |
0.5= 0.5μm |
S=Silicone |
A=Absolute filtration |
S=side entry housing |
|
32=32" |
1=1μm |
E=EPDM |
B=Nominal filtration |
T=top entry housing |
|
|
|
3=3μm |
N=NBR |
|
|
|
|
|
5=5μm |
V=Viton |
|
|
|
|
|
10= 10μm |
|
|
|
|
|
|
20= 20μm |
|
|
|
|
|
|
40= 40μm |
|
|
|
|
|
|
70= 70μm |
|
|
|
|
|
|
100= 100μm |
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
