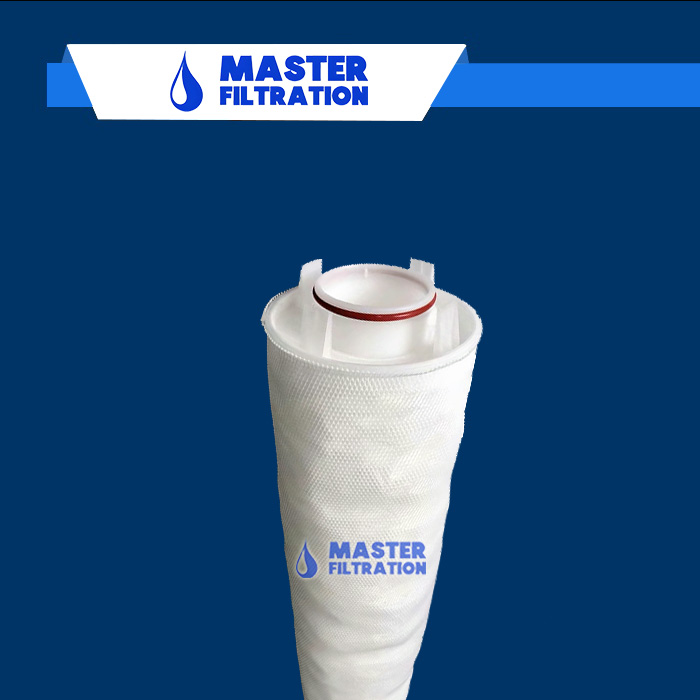

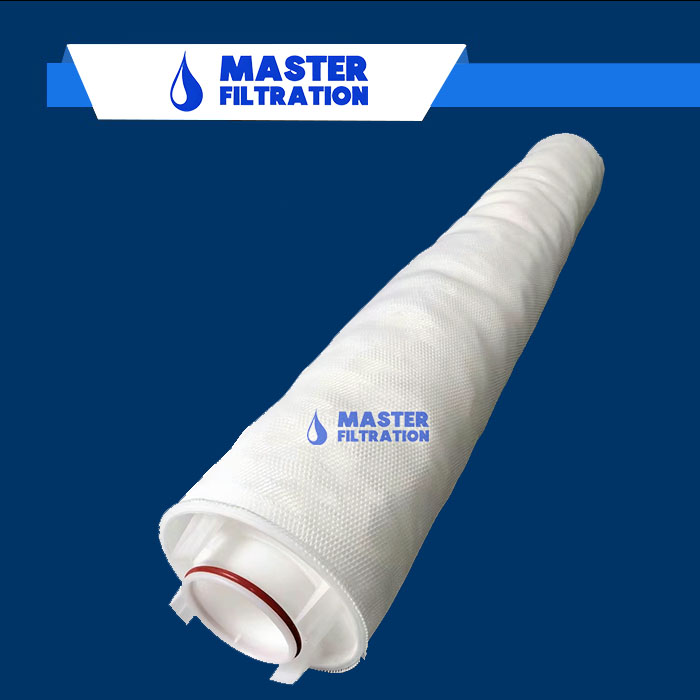

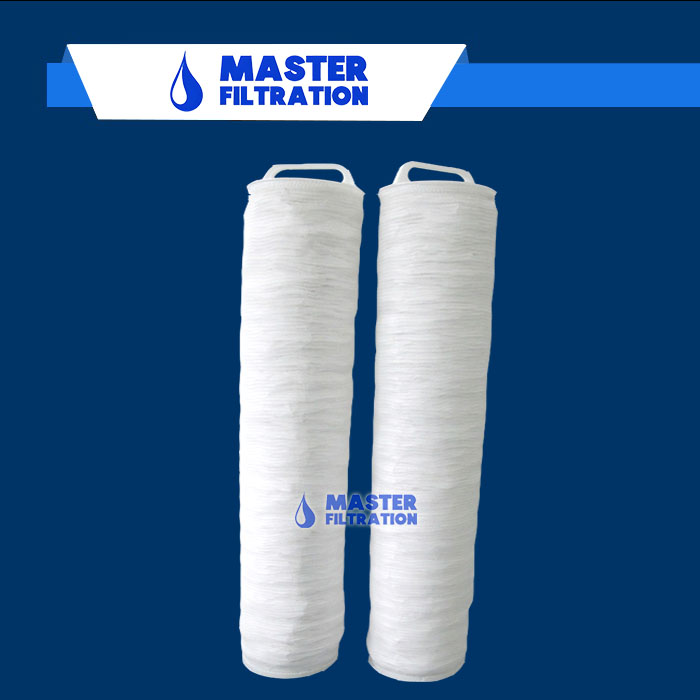

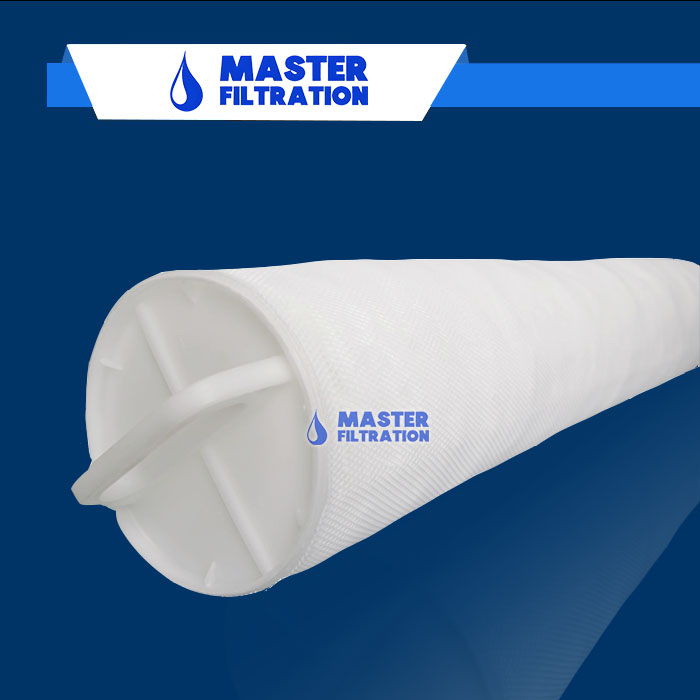

Master Filtration MFHH Series Horizontal 6.5'' Large Diameter High Flow Pleated Filter Cartridge Replaces 3M, 6.5 inches (165mm) big diameter, 3 inches inner diameter, horizontal pleated form, with about 25 meter length filter media, has a up to 12m2 large filtration area and high pollution capacity. it can meet various flow rate requirements and greatly reduces filter cartridge quantity & filter housing size. This type high flow filter cartridge is 1.8 times of filtration area of a same size high flow filter cartridge, which is equivalent to 20pcs ordinary filter cartridges, so that the maximum flow of a single filter cartridge can reach 110 tons/hour.
- Surface and deep filtration combination
- High flow, single filter cartridge flow rate can reach 70m3/h
- Easier to install and replace, save space and labor cost
- Horizontal pleated technology, greatly increase filtration area
- Large external diameter design, high contaminant capacity
- Wide various filter accuracy selectale:1~100um
- Welding technology, avoid secondary pollution
- Inner support frame, increase pressure resistance ability

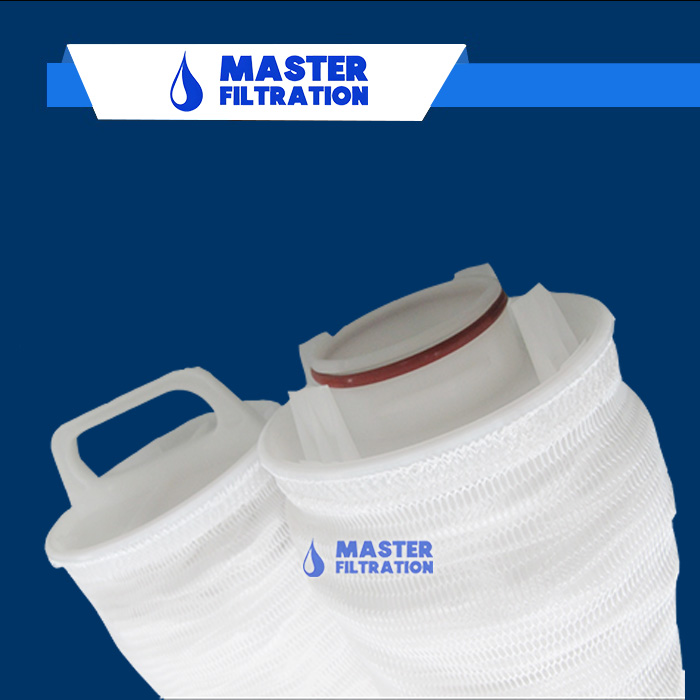

- Gasket design to decease bypass leakage
- Long serve life
|
Cartridge Dimensions |
Length |
40"-1016mm; 60"- 1524mm; |
|
Outer Diameter |
6.5 inches (165mm) |
|
|
Micron Rating: |
1 5 10 15 20 40 70 100 um (customized) |
|
|
Materials |
Filter Media: |
Polypropylene pp, fiber glass |
|
Support Layers: |
Polypropylene pp |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|

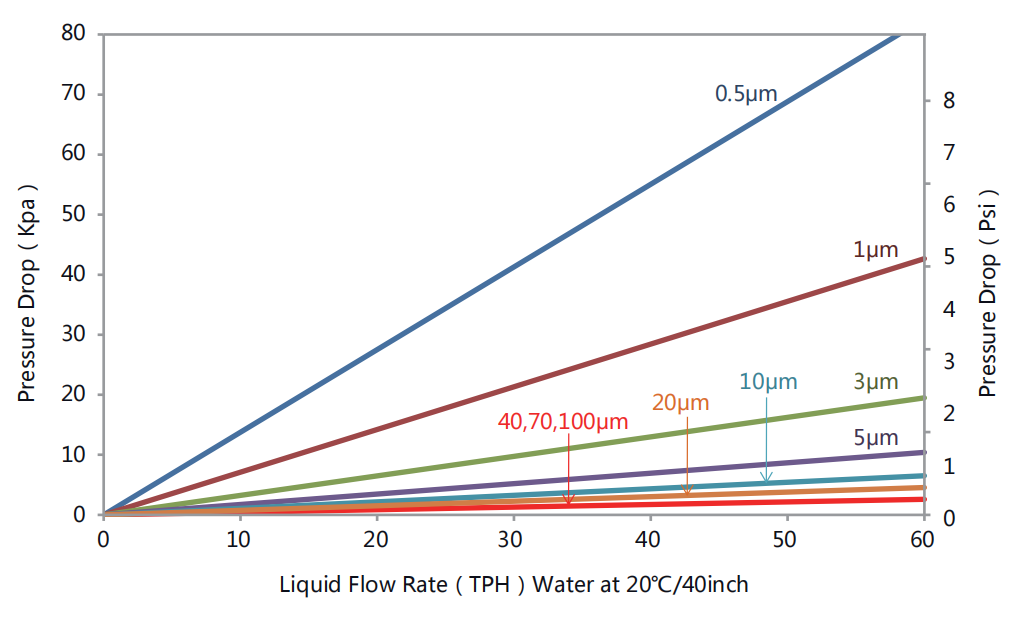

Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
82℃ (PP) ; 121℃ (Fiber glass) |
|
|
Max. Differential Pressure |
3.44bar@82℃ (PP); 3.44bar@121℃(Fiber glass) |
|
|
Recommended replacement pressure : |
2.4Bar @ 20℃ |
|
|
Remark |
We are factory and support customized specifications |
|
|
Model |
Length |
Removal Rating |
End Cap Type |
Seal material |
Core |
|
MFHH |
40=40" |
0.5= 0.5μm |
A=4 paw end |
S=Silicone |
P=PP |
|
60=60" |
1=1μm |
E=EPDM |
|
||
|
|
3=3μm |
B= round end |
N=NBR |
|
|
|
|
5=5μm |
|
V=Viton |
|
|
|
|
10= 10μm |
|
C=Buna |
|
|
|
|
20= 20μm |
|
|
|
|
|
|
40= 40μm |
|
|
|
|
|
|
70= 70μm |
|
|
|
|
|
|
100= 100μm |
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
