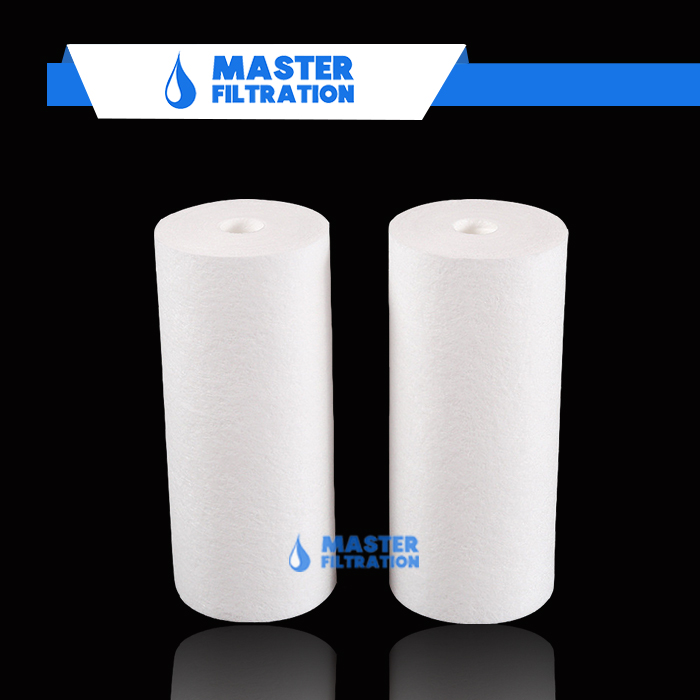

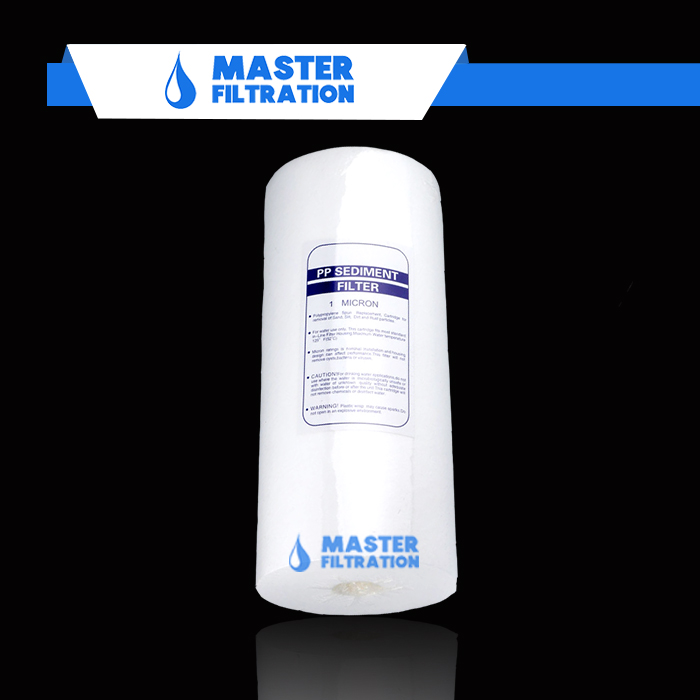

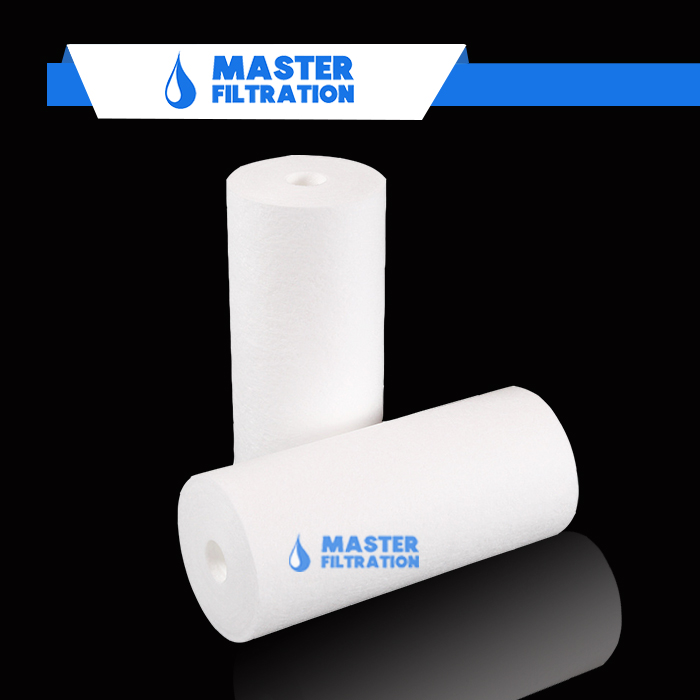

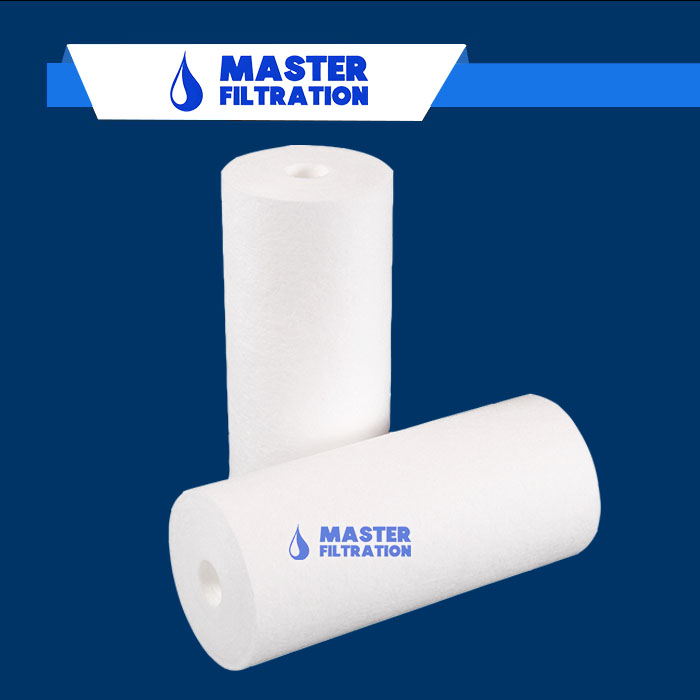

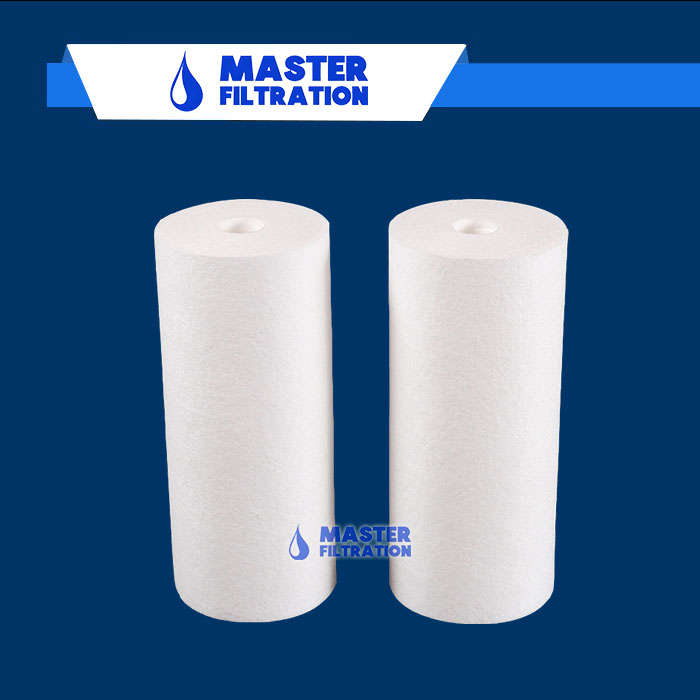

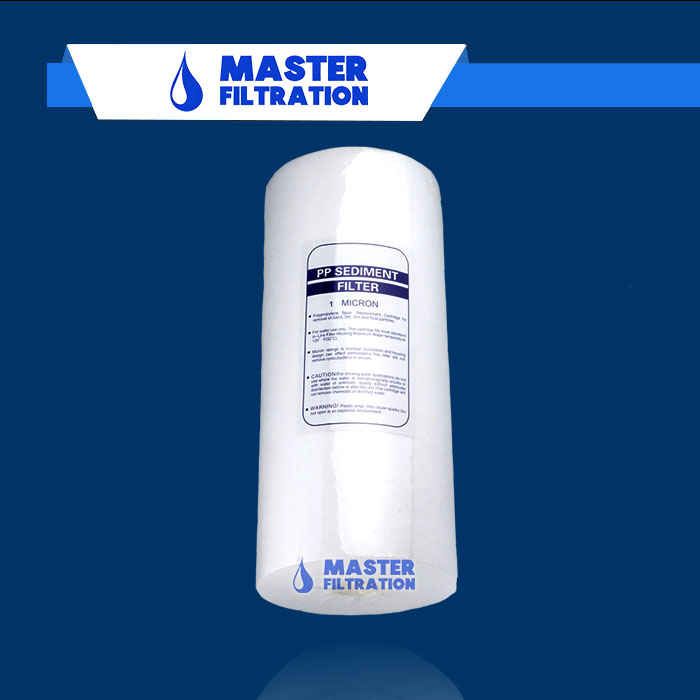

Master Filtration MFRJ Series Jumbo PP Melt Blown Filter Cartridge, with 115mm large diameter, adopts non-toxic and odorless polypropylene particles, after hot melting, spraying, traction to form tubular filter cartridge. The raw material is polypropylene, so it is called PP melt-blown filter cartridge. It is not only widely used in the water treatment industry, but also has outstanding chemical compatibility to be use for strong acid, alkali, organic solvent liquid filtration. High contaminant capacity, longer service life, low cost.
- 99% high filtration efficiency and accuracy
- Small filtration resistance, large filter flow rate and contaminant capacity
- 115mm big diameter, longer service life
- Working pressure difference more than 0. 4Mpa is not deformation
- Temperature does not exceed 80℃
- Good hydrophilic and oilphilic, well used for oil-water separation
- Graded density pore structure for deep filtration
- Withstand mildly corrosive liquids and chemicals
|
Cartridge Dimensions |
Length ( DOE end) |
5''- 127mm,10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm |
|
Outer Diameter |
115mm |
|
|
Inner Diameter |
28mm, 30mm |
|
|
Filtration Area(m2) |
0.4 m2 per 10" |
|
|
End cap: |
DOE, 226, 222, and other Ends |
|
|
Materials Of Construction |
Filter Media: |
Melt Blown Polypropylene（PP） |
|
Micron Rating: |
1, 5, 10 ,20, 50, 70,100um |
|
|
Inner core: |
Polypropylene（PP） |
|
|
O-rings/gaskets(Only for 226, 222 Ends): |
Silicone, Nitrile, EPDM, Viton |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 50℃(122°F) |
|
Max.Operating Temperature.: |
80°C (176°F) at △P≤ 1.0 bar (14 psi) |
|
|
Max. Differential Pressure |
|
|
|
Normal Flow direction: |
4.0 bar (58psi) at 25°C (77°F) |
|
|
Reverse flow directi on: |
2.0 bar (29psi) at 25°C (77°F). |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
Diameter |
End Cap |
Seal Material |
Core |
|
MFRJ |
975=9.75" |
1=1μm |
A=OD63,ID28mm |
Blank = DOE |
S=Silicone |
P=PP |
|
987=9.87" |
3=3μm |
B=OD63,ID30mm |
E=226/FIN |
E = EPDM |
Blank=without core |
|
|
10=10" |
5=5μm |
C=OD115,ID28mm |
F=226/Flat |
N=NBR |
||
|
20=20" |
10= 10μm |
|
G=222/FIN |
V = Viton |
|
|
|
30=30" |
20= 20μm |
|
H=222/Flat |
Blank=without |
|
|
|
40=40" |
25= 25μm |
|
|
|
|
|
|
50=50" |
50= 50μm |
|
|
|
|
|
|
60=60" |
75= 75μm |
|
|
|
|
|
|
|
100= 100μm |
|
|
|
|
|
|
|
150= 150μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
