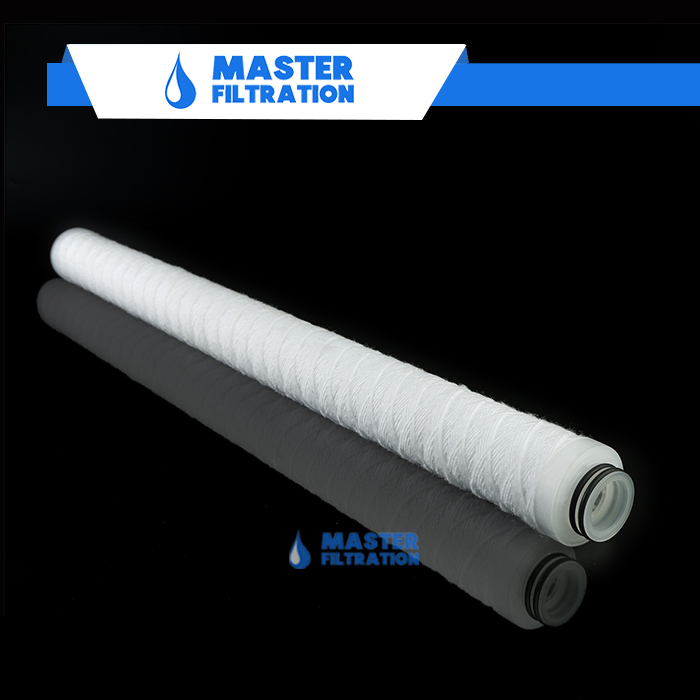

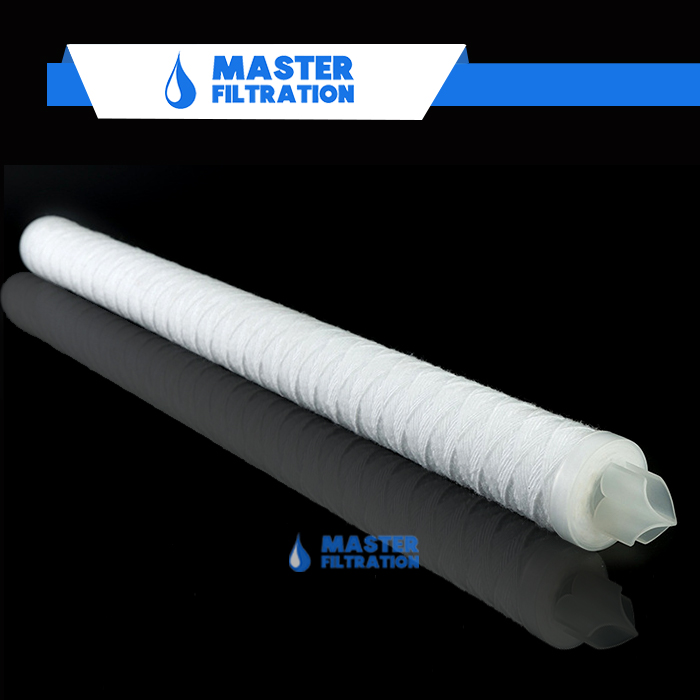

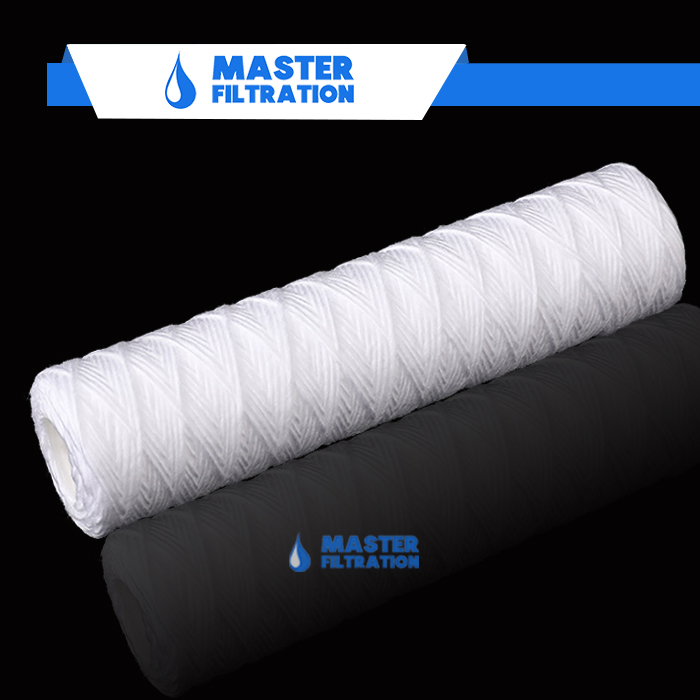

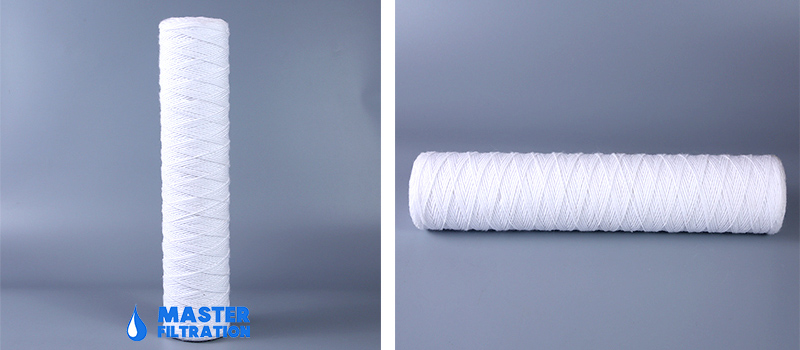

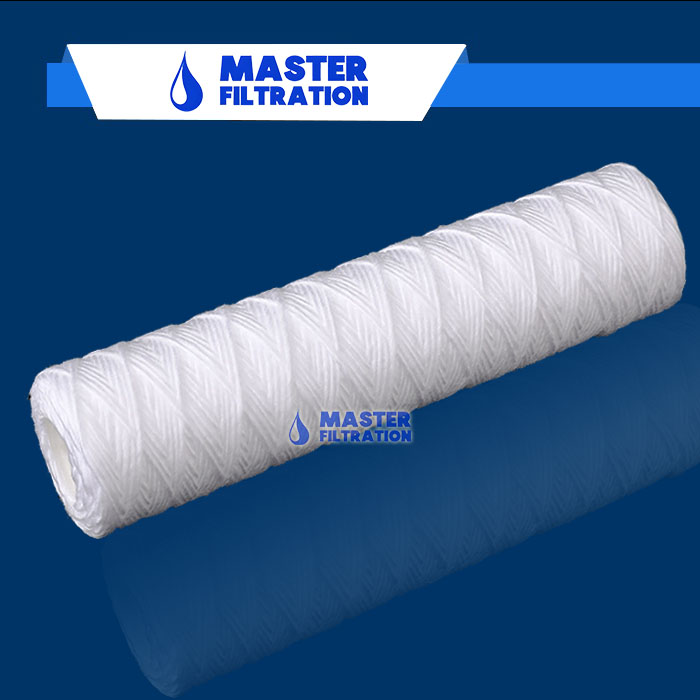

MFYS Series String Wound Filter Cartridge
Master Filtration MFYS Series String Wound Filter Cartridge, uses fiber textile yarn (polypropylene fiber, degreasing cotton, fiber glass etc.) to wrap on pp frame with a specific way, forming big to small gradient pore structure, with good deep filtration effect . The yarn winding density determines filtration precision. It can effectively remove the suspended matter and particles in seawater desalination pre-filter treatment, RO system precision filter cartridge, power plant condensate water filter cartridge, wastewater filtration system, ect.
- Various filter media setectable, suitable for different liquid filtation
- Gradient filtration design, deep filtration
- Strong pressure resistance,up to 0.5MPa
- No adhensive to secondary pollution
- Good chemical compatibility
- Long serve life
|
Cartridge Dimensions |
Length(DOE Ends): |

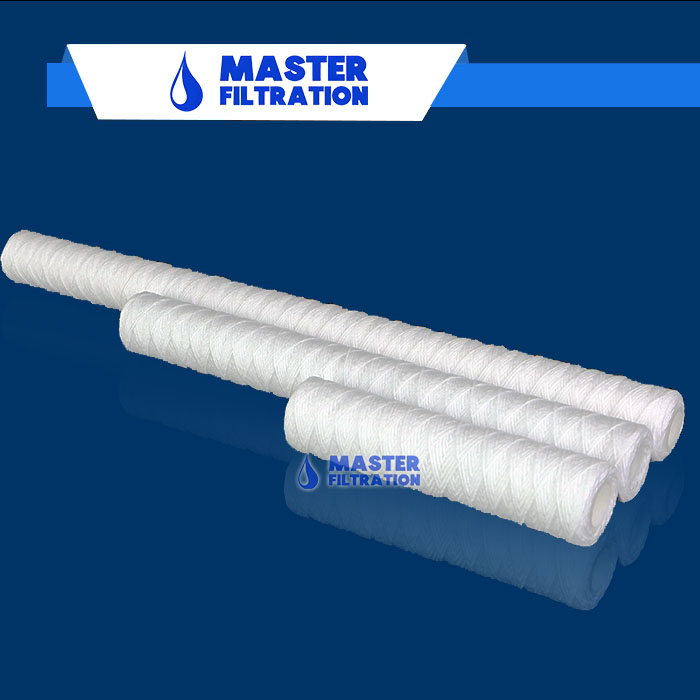

10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm,70''-1778mm |
|
Outer Diameter: |
60, 63mm |
|
|
Inner Diameter: |
28mm, 30mm |
|
|
Filtration Area(m2): |
0.4 m2 per 10" |
|
|
End cap: |
DOE,222 226 and other ends |
|
|
Materials Of Construction |
Filter Media: |

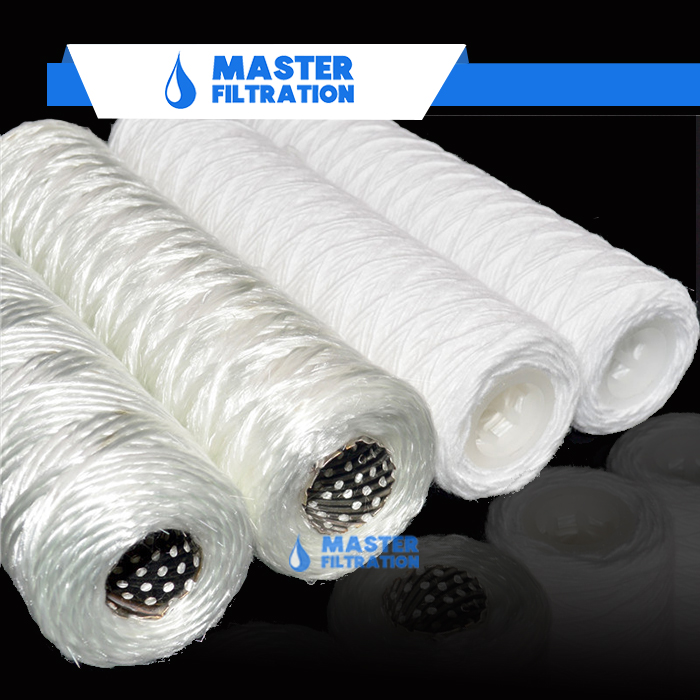

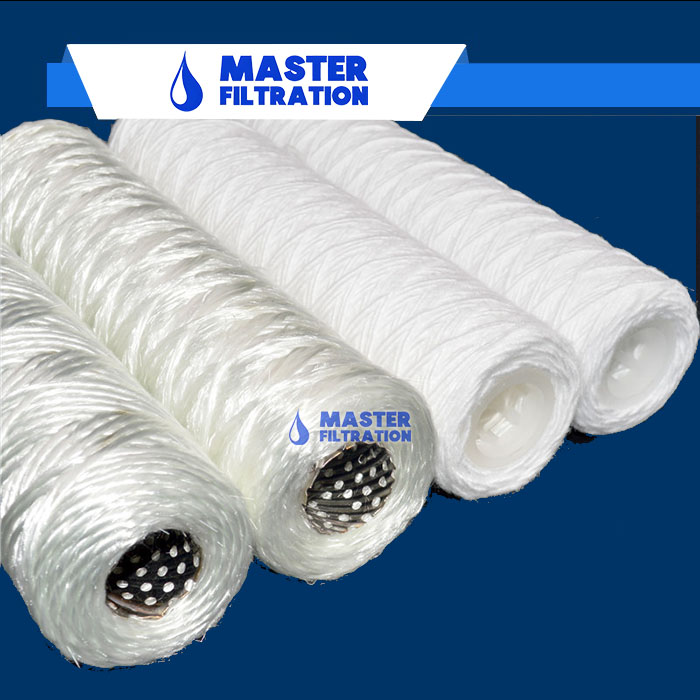

Polypropylene/Degreasing Cotton/Glass Fiber |
|
Micron Rating: |
1, 5, 10, 20,30,50,70,100um |
|
|
Inner core: |
Polypropylene/Stainless Steel |
|
|
O-rings/gaskets(Only for 226, 222 Ends): |
Silicone, Nitrile, EPDM, Viton |
|
|
Operating conditions |
Normal Operating Temperature.: |
≤50℃ |
|
Max.Operating Temperature.: |
|
|
|
Polypropylene: |
80℃ (176°F) at △P≤ 1.0 bar (14psi) |
|
|
Degreasing Cotton: |
150 ℃(300°F) at △P≤ 1.0 bar (14psi) |
|
|
Glass Fiber： |
220°C (428°F) at △P≤ 1.0 bar (14 psi) |
|
|
Max. Differential Pressure |
|
|
|
Polypropylene: |
4.0 bar(58psi) at 25°C (77°F) |
|
|
Degreasing Cotton: |
5.0 bar(72psi) at 25°C (77°F) |
|
|
Glass Fiber： |
5.0 bar(72psi) at 25°C (77°F) |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Outside Diameter |
Inner Diameter |
Removal Rating |
Length |
End Cap |
Seal Material |
Core |
|
MFYS |
G=60mm |
28=28mm |
1=1μm |
10=10" |
Blank = DOE |
S=Silicone |
p=pp |
|
G=63mm |
30=30mm |
3=3μm |
20=20" |
|
E = EPDM |
S=Stainless steel |
|
|
|
|
5=5μm |
30=30" |
|
N=NBR |
||
|
|
|
10= 10μm |
40=40" |
|
V = Viton |
|
|
|
|
|
20= 20μm |
50=50" |
|
Blank=without |
|
|
|
|
|
30= 30μm |
60=60" |
|
|
|
|
|
|
|
50= 50μm |
70=70" |
|
|
|
|
|
|
|
75= 75μm |
|
|
|
|
|
|
|
|
100= 100μm |
|
|
|
|
|
|
|
|
150= 150μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
