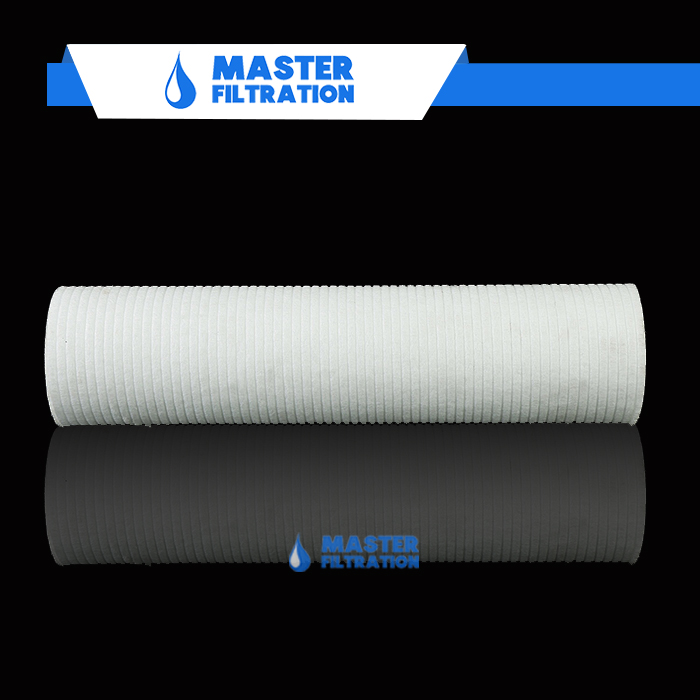

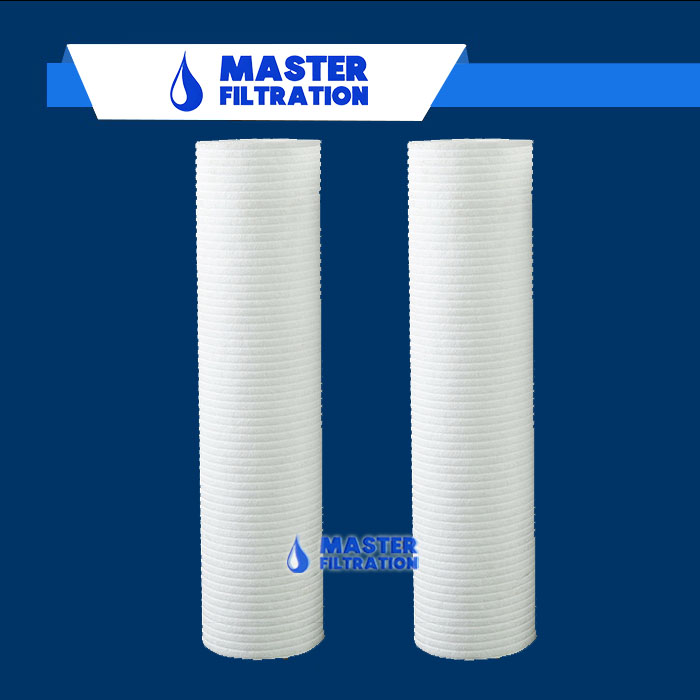

Master Filtration MFRE Series Surface Embossed PP Melt Blown Filter Cartridge, adopt embossing technology to emboss at surface of normal pp melt blown filter cartridge to increase filtration area. It are sturdied with a fixed pore structure. The filter cartridge with excellent chemical resistance, high contaminant capacity are widely is used in water filtration, RO pre filtration, Oil Filtration.
- Surface embossing design, increase filtration area
- Highly effective in filtering certain VOC's, rusty, red worm

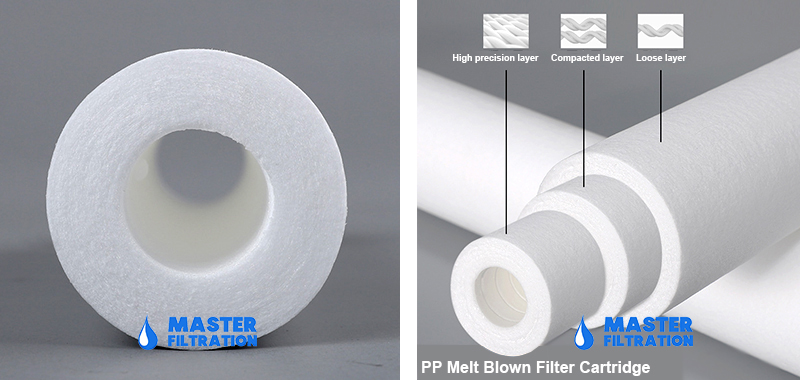

- Three layer gradient filtration structure,deep filtration and high contaminant capacity
- PP particles directly hot melting, no any adhensive
- 100% pure PP, good chemical compatibility
- Able to match various end cap, strong installation adaptability
- Economical and high efficient
- Long serve life
|
Cartridge Dimensions |
Length |
5''- 127mm,10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm |
|
Outer Diameter |
60mm ~115mm |
|
|
Inner Diameter |
28mm, 30mm |
|
|
Filtration Area(m2) |
0.4 m2 per 10" |
|
|
End cap: |
DOE, 226, 222, and other Ends |
|
|
Materials Of Construction |
Filter Media: |
Melt Blown Polypropylene（PP） |
|
Micron Rating: |
1, 5, 10 ,20, 50, 70,100um |
|
|
Inner core: |
Polypropylene（PP） |
|
|
O-rings/gaskets(Only for 226, 222 Ends): |
Silicone, Nitrile, EPDM, Viton |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 50℃(122°F) |
|
Max.Operating Temperature.: |
80°C (176°F) at △P≤ 1.0 bar (14 psi) |
|
|
Max. Differential Pressure |
|
|
|
Normal Flow direction: |
4.0 bar (58psi) at 25°C (77°F) |
|
|
Reverse flow directi on: |
2.0 bar (29psi) at 25°C (77°F). |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
End Cap Connection |
O.D |
Seal material |
Core |
|
MFRE |
5=5" |
1=1μm |
Blank = DOE |
60=60mm |
S=Silicone |
P=PP |
|
10=10" |
3=3μm |
A=226/FIN |
63=63mm |
E = EPDM |
Blank=No core |
|
|
20=20" |
5=5μm |
B=226/Flat |
115=115mm |
N=NBR |
|
|
|
30=30" |
10= 10μm |
C=222/FIN |
|
V = Viton |
|
|
|
40=40" |
20= 20μm |
D=222/Flat |
|
|
|
|
|
50=50" |
50= 50μm |
|
|
|
|
|
|
60=60" |
70= 70μm |
|
|
|
|
|
|
|
100= 100μm |
|
|
|
|
|
|
|
150= 150μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
