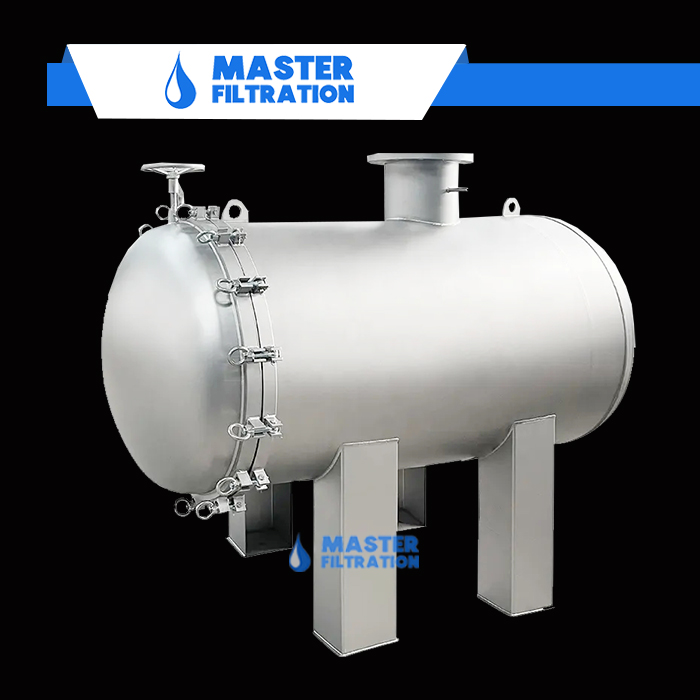

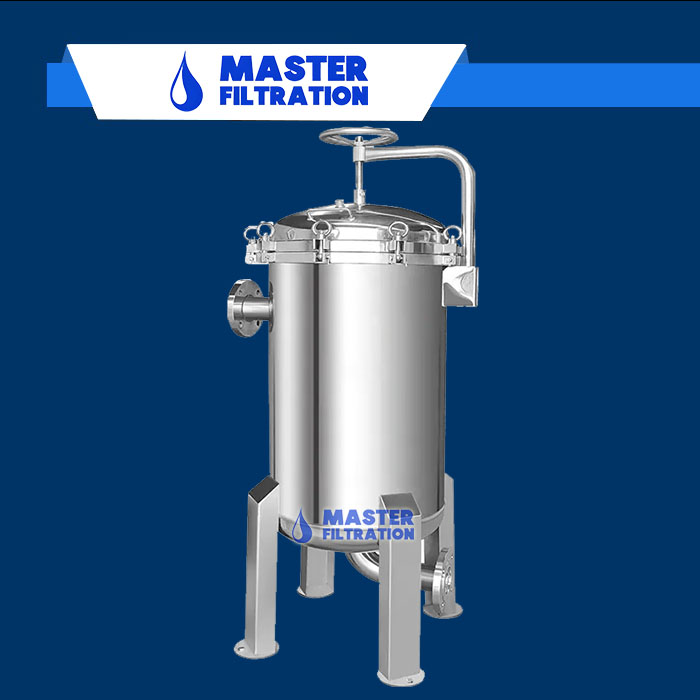

Master Filtration MFSH Series Stainless Steel High Flow Filter Housing has two kinds: the vertical high flow filterhousing and horizontal high flow filter housing. One high flow filter cartridge flow rate can reach 50m3/h. A 40 "high flow filter cartridge is equivalent to 20pcs PP meltblown filter cartridges; a 60" high flow pleated filter cartridge is equivalent to 30PP melt blown filter cartridge.High flow filtration efficiency, it is able to reduce equipment space, easier to replace and save cost, which is generally used in industry filtration for removing fine particles to purify liquid, adopting SS304 SS316L stainless steel material and high flow filter cartridge. This filter housing is normally mounted at the front or end of filter system, mainly used in multi-media pre-treatment filtration,reverse osmosis, ultra filtration filtration and other membrane filtration equipment to ensure filtration precision and protect membrane filtration elements from being damaged by large particles.
- Compact design structure needs lower working space
- High flow filtration efficiency, large filtration area

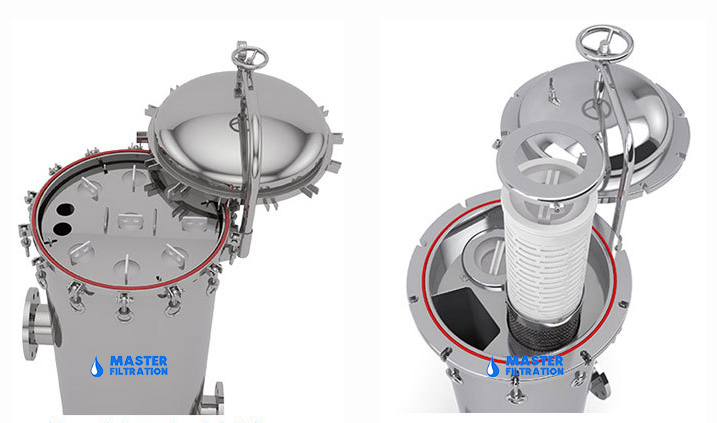

- Less filter cartridges reduce installation and replacement time and labor
- Deep pleated technology, 11kgs high contaminant capacity
- Wide filter accuracy: 1~100um
- Longer serve life time, more economic
- Strong chemical corrosion resistance
|
Filter housing material: |
SS304, SS316 |
|
Filter cartridge material: |
PP, PTFE, PES, FIBER GLASS, SS304,SS316 |
|
Filter cartridge size: |
40'', 60'' |
|
Design pressure: |
0.6~1.6Mpa |
|
Filter cartridge qty: |
1~20pcs |
|
Removal rating: |
0.1~100um |
|
Working temperature: |
0~100℃ |
|
Max differential pressure: |
2.4 bar |
|
Replacement differential pressure: |
2.0 bar |
|
Gasket: |
Silicone, NBR EPDM, FKM, PTFE |
|
Surface finishing: |
satin finish, polishing finish |
|

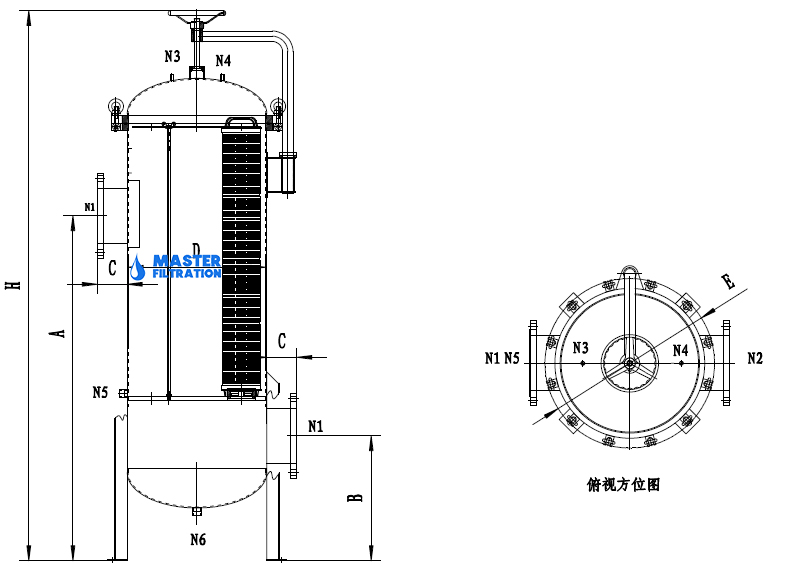

Model |
Filter cartridge qty (pcs) |
Filter cartridge length (inch) |
Diameter (mm) |
Height (mm) |
Inlet/outlet dia |
Flow rate (m3/h) |
|
MFSH-1 |
1 |
40" |
219 |
1580 |
DN50 |
30 |
|
MFSH-2 |
2 |
40" |
400 |
1900 |
DN65 |
60 |
|
MFSH-3 |
3 |
40" |
450 |
1980 |
DN80 |
90 |
|
MFSH-4 |
4 |
40" |
450 |
1980 |
DN100 |
120 |
|
MFSH-5 |
5 |
40" |
500 |
2100 |
DN125 |
150 |
|
MFSH-6 |
6 |
40" |
550 |
2200 |
DN150 |
180 |
|
MFSH-7 |
7 |
40" |
550 |
2200 |
DN200 |
210 |
|
MFSH-8 |
8 |
40" |
600 |
2200 |
DN200 |
240 |
|
MFSH-9 |
9 |
40" |
650 |
2300 |
DN250 |
270 |
|
MFSH-10 |
10 |
40" |
700 |
2350 |
DN250 |
300 |
|
MFSH-12 |
12 |
40" |
800 |
2400 |
DN250 |
360 |
|
MFSH-14 |
14 |
40" |
850 |
2400 |
DN250 |
420 |
|
MFSH-16 |
16 |
40" |
950 |
2450 |
DN300 |
480 |
|
MFSH-20 |
20 |
40" |
1000 |
2450 |
DN400 |
600 |
|
We are factory and support customized specifications. |
||||||
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
