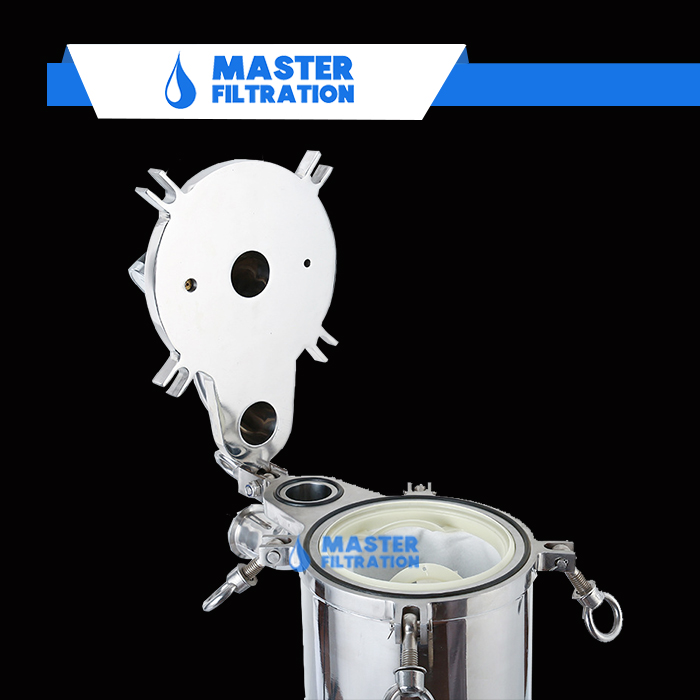

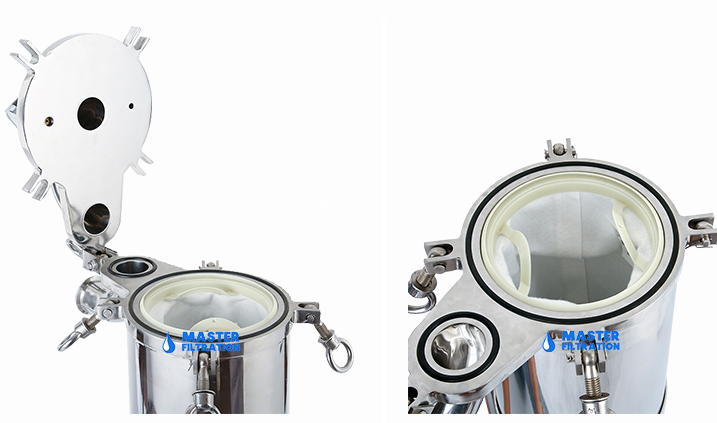

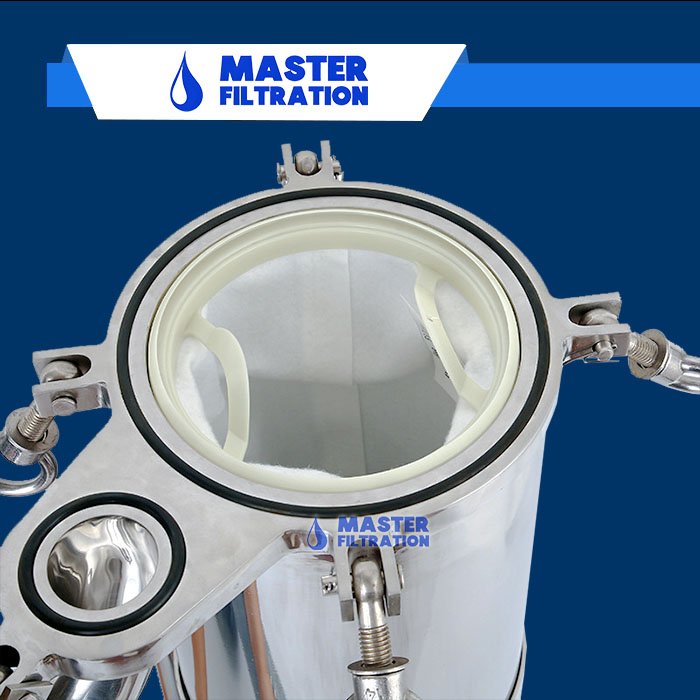

Master Filtration MFST Series Stainless Steel Top Entry Single Bag Filter Housing is a kind of pressure filter device, adopting top to side mode, which is mainly composed of filter cylinder, cover, quick opening mechanism, stainless steel filter basket and other components. Liquid flows into the filter bag through the top enter. Particles are blocked in filter bag and purified liquid flows out.
- Internal and external surface pickling passivation treatment, improve corrosion resistance
- Maximize utilization of filter housing space, avoid waste
- Quick to replace filter bag, prevent secondary pollution
- Top horn type wide inlet, reduce liquid impact on filter bag
- Hot temperature resistance, working temperature up to 100℃
- Polishing smooth metal mesh basket, no damage to filter bag
- Two sealant ring protection, avoid bypass leakage
- Long service life
|
Filter housing material: |
SS304, SS316 |
|
Filter bag material: |
PP, Polyester,Nylon,PTFE,SS304,SS316 |
|
Filter bag qty: |
1pcs |
|
Removal rate: |
0.5~1700um |
|
Working temperature: |
0~100℃ |
|
Max differential pressure: |
2.4 bar |
|
Replacement differential pressure: |
1.0 bar |
|
Gasket: |
Silicone, NBR, EPDM, FKM, PTFE |
|
Inlet&outlet: |
Flange,tri-clamp, thread |
|
Surface finishing: |
Satin finish, polishing finish |
|

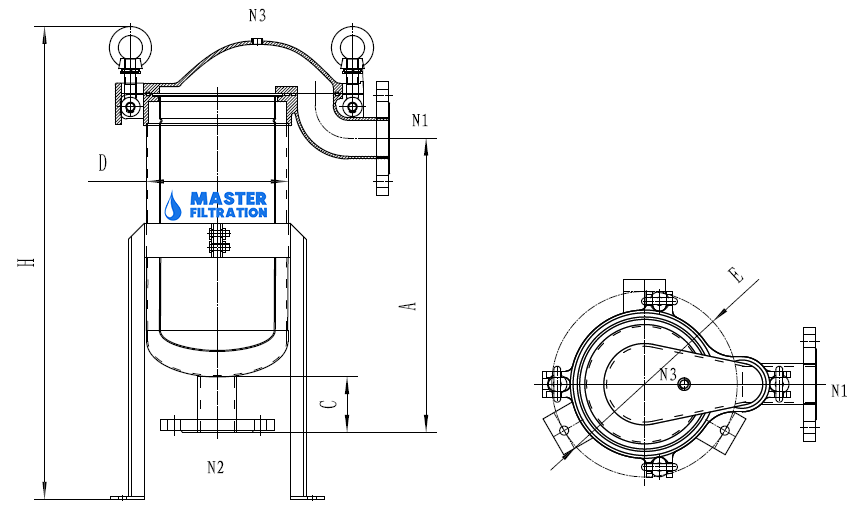

Model |
Bag size mm |
Diameter (mm) |
Height (mm) |
Inlet/outlet dia |
Flow rate (m3/h) |
Filtration area(㎡) |
|
MFST-1 |
180*430 |
219 |
750 |
DN50 |
15 |
0.25 |
|
MFST-2 |
180*810 |
219 |
1100 |
DN50 |
30 |
0.5 |
|
MFST-3 |
105*230 |
114 |
580 |
G1" thread |
6 |
0.08 |
|
MFST-4 |
105*380 |
114 |
720 |
G1" thread |
12 |
0.16 |
|
We are factory and support customized specifications. |
||||||
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
