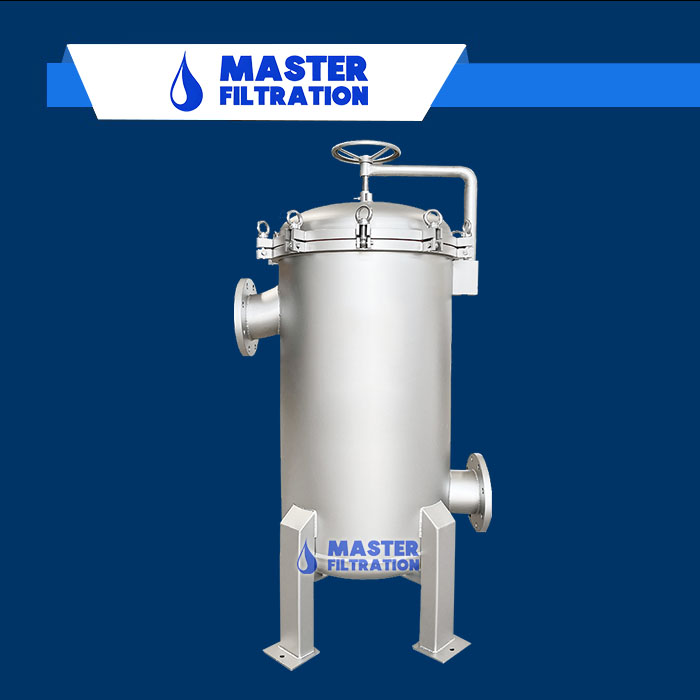

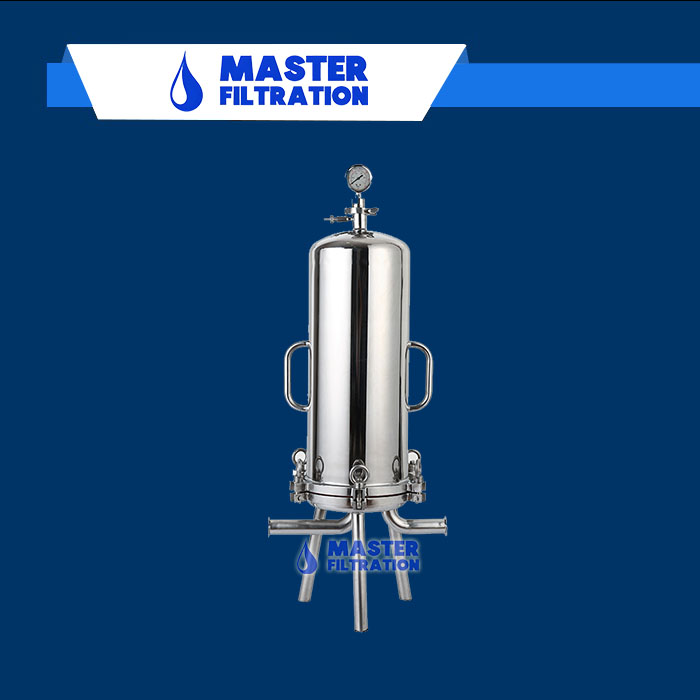

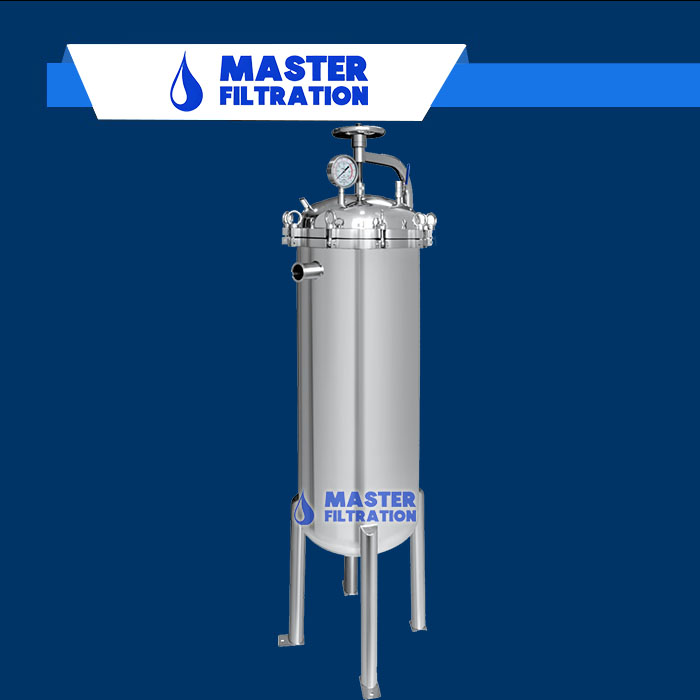

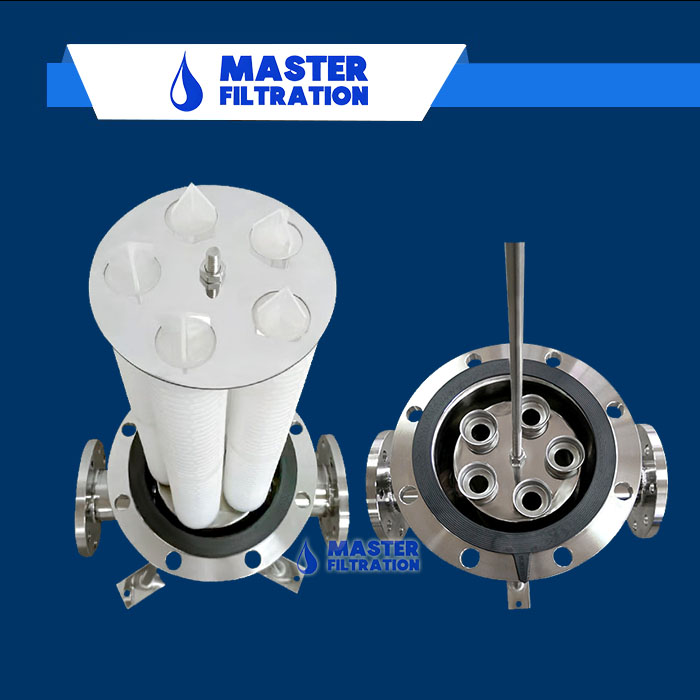

Master Filtration MFSC Series Stainless Steel Multi Cartridge High Precision Filter Housing, adopting cylindrical cylinder structure, made of 304 or 316L stainless steel, use pleated filter cartridge as filter element, and can filter liquid, gas above 0.1μm particles and bacteria. Various filter media cartridge:pp melt blown filter cartridge, wound string filter cartridge, pleated filter cartridge selectable.High filtration precision, fast filtration speed, no media shedding, no leakage, acid and alkali corrosion resistance, easy operation, can remove the bacteria and particles in the injection water and liquid medicine. it can make two, three, four stage filter housing according to customer demands. High precision filter housing is widely used in medicine, infusion, pure water, biological engineering sterilization.
Working principle
The liquid flows into the filter housing under pressure from the inlet. the particles are intercepted by filter cartridge, and the filtered liquid flows out from the outlet. After a period of time, when the inlet and outlet pressure difference increases, it means filter cartridges need to be washed, then open backwash valve to wash and the filter housing restores the normal filtering status.
- High filtration efficiency, able to filter up to 0.1um micro particles
- Filtration rate up to 99.9%
- Low filtration pressure difference
- Simple operation and convenient cleaning
- Repeatedly wash to use, economic
- Good corrosion resistance and stability
- High temperature resistance
- Multi filter cartridges quantity optional: 3~100pcs
|
Filter housing material: |
SS304, SS316 |
|
Filter cartridge material: |
PP, PTFE, PES, FIBER GLASS, SS304,SS316 |
|
Filter cartridge qty: |
3~100pcs |
|
Filter cartridge size: |
10'', 20'', 30'', 40'' |
|
Design pressure: |
0.6~1.6Mpa |
|
Removal rate: |
0.1~200um |
|
Working temperature: |
0~100℃ |
|
Max differential pressure: |
2.4 bar |
|
Replacement differential pressure: |
1.0 bar |
|
Gasket: |
Silicone, NBR EPDM, FKM, PTFE |
|
Surface finishing: |
Satin finish, polishing finish |
|

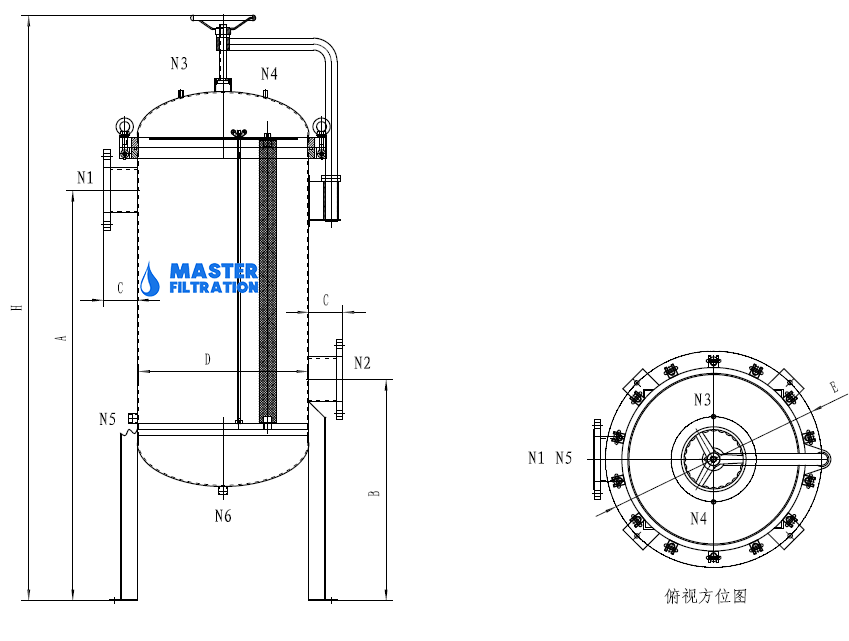

Model |
Filter cartridge qty (pcs) |
Filter cartridge length (inch) |
Diameter (mm) |
Height (mm) |

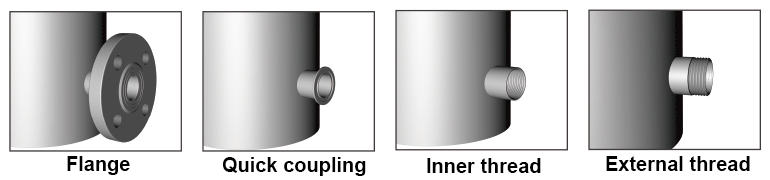

Inlet/outlet dia |
Flow rate (m3/h) |
|
MFSC-15 |
15 |
40" |
350 |
1850 |
DN65 |
30 |
|
MFSC-18 |
18 |
40" |
400 |
1900 |
DN65 |
36 |
|
MFSC-20 |
20 |
40" |
450 |
1930 |
DN80 |
40 |
|
MFSC-25 |
25 |
40" |
500 |
2030 |
DN100 |
50 |
|
MFSC-30 |
30 |
40" |
550 |
2030 |
DN100 |
60 |
|
MFSC-40 |
40 |
40" |
600 |
2130 |
DN125 |
80 |
|
MFSC-50 |
50 |
40" |
650 |
2150 |
DN150 |
100 |
|
MFSC-70 |
70 |
40" |
750 |
2260 |
DN200 |
140 |
|
MFSC-100 |
100 |
40" |
900 |
2360 |
DN200 |
200 |
|
We are factory and support customized specifications. |
||||||
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
