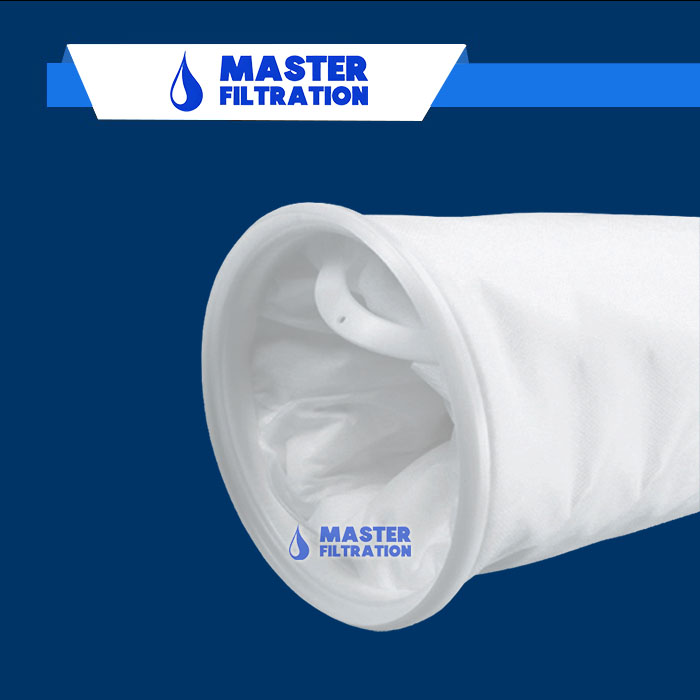

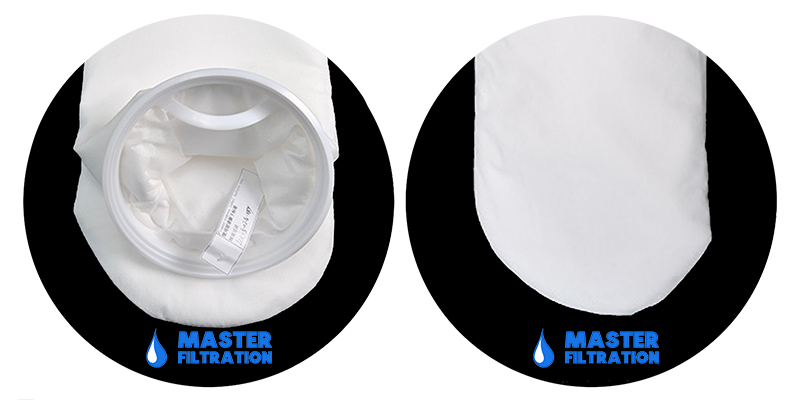

Master Filtration MFBO Series Multi Layer Oil Absorbing Filter Bag, is made of 3~15 different filter accuracy PP layer to form gradient filtration. PP material is oilophilic and hydrophobic. therefore, the multi layer pp liquid filter bag has good oil absorption capability and water filtation efficiency. The filtration efficiency rate can reach 99.9%. The best replacement pressure difference is 0.10Mpa and the maximum is 0.16Mpa.
- High filtration efficiency, effectively blocking small particles and oil
- Good chemical corrosion resistance,able to be used in acid, alkali and other corrosive liquids
- Excellent oil absorption capability, quickly absorbing 23 times oil of filter bag weight
- High speed cooling no silicone oil sewing machine, without silicone oil pollution
- Good porosity, small fiber pore structure, good air permeability, high flow rate
- Simple operation, easy installation and replacement
- Wide filtration accuracy setectable:0.2～200um
|
Liquid filter bag: |
MFBO-1 |
MFBO-2 |
MFBO-3 |
MFBO-4 |
MFBO-5 |
|
Size: |
180*450mm |
180*810mm |
105*230mm |
105*380mm |
150*560mm |
|
Flow rate (M3/H): |
20 |
40 |
6 |
12 |
20 |
|
Filtration area |
0.25 ㎡ |
0.5 ㎡ |
0.09 ㎡ |
0.16 ㎡ |
0.25 ㎡ |
|
Filtration volume: |
8 L |
17 L |
1.3 L |
2.5 L |
8L |
|
Filtration media: |
Polyester(PE), PP |
||||
|
Ring material: |
Galvanized ring, SS304, PP or PE plastic ring |
||||
|
Filtration class: |
1,5,10,25,50,80,100,125,150,200 micron (um) |
||||
|
Bag construction: |
Sewing/welding |
||||
|
Working temperature: |
PP<90℃；PE<130℃ |
||||
|
Application: |
Used for water, beverage, industry water, chemical liquid, oil, paint, seawater desalination, food, pharmaceuticals, biotech,dairy, brewing, semiconductor, RO filtration system. |
||||
|
Remark |
We are factory and support customized specification |
||||
|
MICRON, MESH CONVERSION CHART |
||||||
|
Micron |
1 |
2 |
5 |
10 |
15 |
20 |
|
Mesh |
12500 |
6250 |
2500 |
1250 |
800 |
625 |
|
|
|
|
|
|
|
|
|
Micron |
25 |
33 |
35 |
50 |
53 |
63 |
|
Mesh |
500 |
425 |
400 |
300 |
270 |
230 |
|
|
|
|
|
|
|
|
|
Micron |
80 |
88 |
100 |
125 |
150 |
200 |
|
Mesh |
200 |
170 |
150 |
120 |
100 |
80 |
|
|
|
|
|
|
|
|
|
Micron |
210 |
250 |
354 |
420 |
500 |
595 |
|
Mesh |
70 |
60 |
45 |
40 |
35 |
30 |
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
