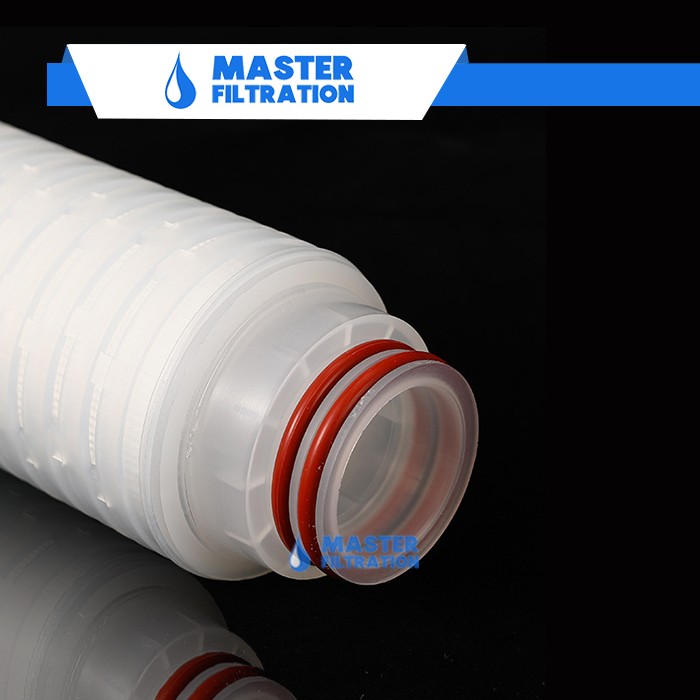

Cartridge Dimensions

Length(DOE end caps)

10"- 254mm, 20"- 508mm, 3C"-762 mm, 40"- 1016mm

Outer Diameter

69mm

Inner Diameter

28mm, 30mm

Filtration Area(m2)

0.65 m2 per 10"

Materials

Filter Media:

Polypropylene

Support Layers:

Polypropylene

Micron Rating:

0.1, 0.2, 0.45, 0.65, 1.0, 3.0, 5.0um (customized)

Inner core:

Polypropylene

Outer Cage, End caps:

Polypropylene

Seal Method:

Thermal Bonded, No Adhesives

O-rings/gaskets:

Silicone, Nitrile, EPDM. Viton, Teflon, etc

End cap:

DOE, 222,226,215 and others

Operating conditions

Normal Operating Temperature:

Upto 60℃ (140°F)

Max.Operating Temperature.:

80℃ (172°F) at  △P≤1.0 bar (14psi)

Max. Differential Pressure

Normal Flow direction:

4.2 bar (60 psi) at 25℃ (77°F)

Reverse flow direction:

2.1 bar (30 psi) at 25℃ (77°F).

PH Value compatibility:

1-13 PH

Sterilization:

Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:15 hours;

Flush with hot water at 82℃(180°F) for 30 minutes, at  △P≤1.0 bar (14psi) - Recommended.

Cartridge Safety

Endotoxin:

<0.25 EU/ml

Exlractables:

0.03g/10"

Remark

We are factory and support customized specification

Integrity Test （Imported Membrane）

Aperture(um)：

0.10

0.20

0.45

1.00

Minimum bubble point(Mpa)：

≥0.015

≥0.011

≥0.009

≥0.003

* Test Liquid: 95% isopropyl alcohol or ethyl alcohol at 25℃

Integrity Test （Imported Hydrophilic Membrane）

Aperture(um)：

0.10

0.20

0.45

Minimum bubble point(Mpa)：

≥0.016

≥0.012

≥0.009

* Test Liquid: 95% isopropyl alcohol or ethyl alcohol at 25℃

Model

 Length

Removal Rating

End Cap Type

 Seal Material

Core

   MFPA

5 = 5”

0.1 = 0.1μm

A = DOE

  S = Silicone

  P = PP core

 10 = 10”

0.22 = 0.22μm

 B = 226/fin

 E = EPDM

   S = SS core

 20 = 20”

0.45 = 0.45μm

C = 226/Flat

 B = NBR

 30 = 30”

 1 = 1μm

  D = 226/Fin/SS

  V = Viton®

 40 = 40”

3 = 3μm

  E = 226/Flat/SS

  T = Teflon®

 50 = 50”

5 = 5μm

   F = 222/Flat/SS

 10 = 10μm

 G = 222/Fin/SS

20 = 20μm

 H = 222/Flat

50 = 50μm

I = 222/Fin

 J = 213/Flat

Water Treatment

Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment.

Industrial

LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing.

Power Plant

CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment.

Petrochemical

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Food & Beverage

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Oil & Chemicals

Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint.

Microelectronics

LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater.

Pharmaceuticals

Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery.
