Membrane Pleated Filter Cartridges

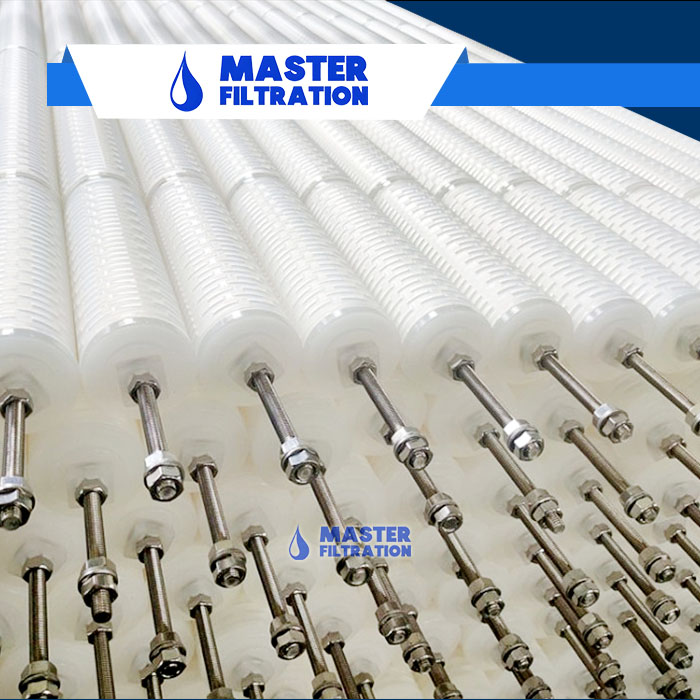

Master Filtration MFPC Series Condensate PP Pleated Filter Cartridge, using ultrafine polypropylene fiber membrane, specially design for power plant pre-filtration, condensate filtration to control solid particles such as metal and silicon in condensed water, effectively avoiding oxide dissolving at high temperature, when machine start up.
- Complete PP structure with good chemical applicability
- Extra long 60", 70" length, suitable for large flow application area
- Easy installation, able to directly fix in filter housing
- Gradient pore layer to block various size particles
- Hydrodynamic design, high efficiency filtration
- Repeated wash
|
Cartridge Dimensions |
Length |
60"- 1524mm; 70"-1778mm |
|
Outer Diameter |
64mm |
|
|
Filtration Area: |
6.5 m2 |
|
|
Materials |
Filter Media: |
Polypropylene pp |
|
Support Layers: |
Polypropylene pp |
|
|
Micron Rating: |
1 5 10 um (customized) |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
End cap: |
Threaded connector, 222 |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
85℃ (185°F) at △P≤1.0 bar (14psi) |
|
|
Max. Differential Pressure |
2.8 Bar @ 65℃ |
|
|
Cartridge Safety |
Endotoxin: |
<0.25 EU/ml |
|
Extractables: |
0.03g/10" |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
Outside diameter |
End Cap Connection |
Core |
|
MFPC |
60=60" |
1= 1μm |
A =66mm |
S=222 |
P=PP |
|
70=70" |
4= 4μm |
B = 69mm |
E = thread |
S=Stainless steel |
|
|
|
10= 10μm |
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Ink jet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
