Cartridge Dimensions

Length (DOE end caps)：

10"- 254mm, 20"- 508mm, 3C"-762 mm, 40"- 1016mm

Outer Diameter：

69mm

Inner Diameter：

28mm, 30mm

Filtration Area(m2)：

0.65 m2 per 10"

End cap:

DOE, 222,226,213 and others

Materials

Filter Media:

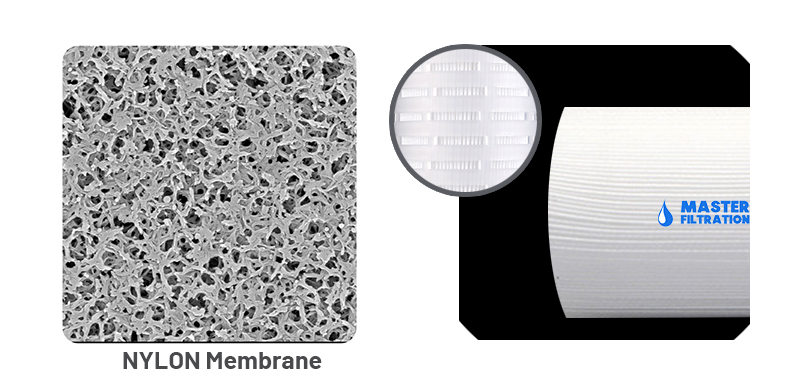

Hydrophilic Nylon66 N6 Membrane

Support Layers:

Polypropylene

Micron Rating:

0.1, 0.22, 0.45, 0.65,1.0, 3.0, 5.0um(customized)

Inner core:

Reinforced Polypropylene

Outer Cage, End caps:

Reinforced Polypropylene

Seal Method:

Thermal bonded, no adhesives

O-rings/gaskets:

Silicone, Nitrile, EPDM, Viton, Teflon, etc

Operating conditions

Normal Operating Temperature:

≤ 60℃：140℉)

Max.Operating Temperature.:

80℃ (176℉) at △P≤1.0 bar (14psi)

Max. Differential Pressure

Normal Flow direction:

4.2 bar (60 psi) at 25℃ (77℉)

Reverse flow direction:

2.1 bar (30 psi) at 25℃ (77℉).

PH Value compatibility:

6~14PH

Sterilization:

Steam Sterilization for 30 minutes at 135℃(275℉), cumulative Time: 3hours, autoclave 30 minutes (optional)

Cartridge Safety

Endotoxin:

<0.25 EU/ml

Exlractables:

0.03g/10"

Remark

We are factory and support customized specifications

Integrity Test (N6)

Aperture(um)：

0.10

0.20

0.45

0.65

1.00

Minimum bubble point(Mpa)：

≥0.38

≥0.27

≥0.19

≥0.13

≥0.09

* Test Liquid: pure water at 25℃

Integrity Test (N66)

Aperture(um)：

0.10

0.20

0.45

0.65

1.00

Minimum bubble point(Mpa)：

≥0.38

≥0.28

≥0.20

≥0.14

≥0.10

* Test Liquid: pure water at 25℃

Model

Length

Removal Rating

End Cap Connection

Seal material

Core

MFPN

10=10"

0.1= 0.1μm

A = DOE

S=Silicone

P=PP

20=20"

0.22= 0.22μm

B = 226/FIN

 E = EPDM

S=Stainless steel

30=30"

0.45= 0.45μm

C=226/Flat

N=NBR

40=40"

1=1μm

D=226/Fin/SS

 V = Viton

E=226/Flat/SS

T=Teflon

F=222/Flat

F=E-FKM

G=222/Fin

H=222/Fin/SS

I=222/Flat/SS

J=213/Flat

Water Treatment

Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment.

Industrial

LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing.

Power Plant

CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment.

Petrochemical

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Food & Beverage

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Oil & Chemicals

Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint.

Microelectronics

LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater.

Pharmaceuticals

Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery.
