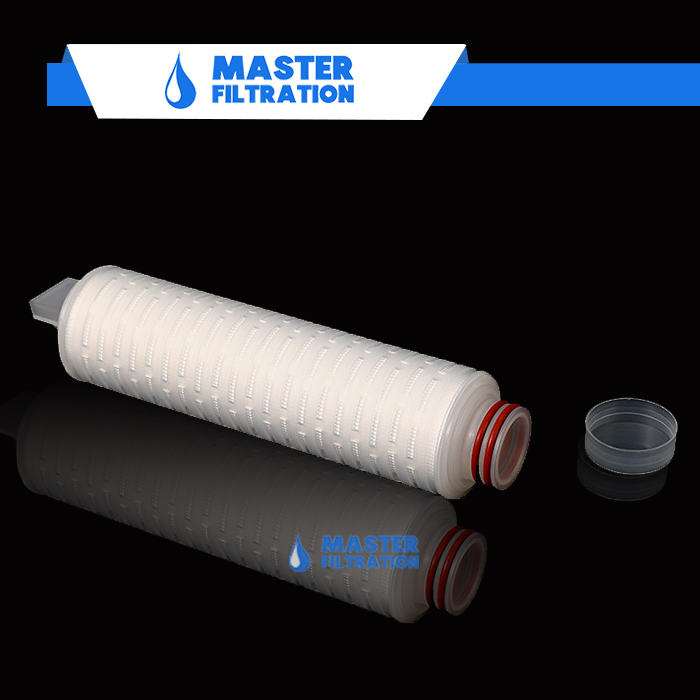

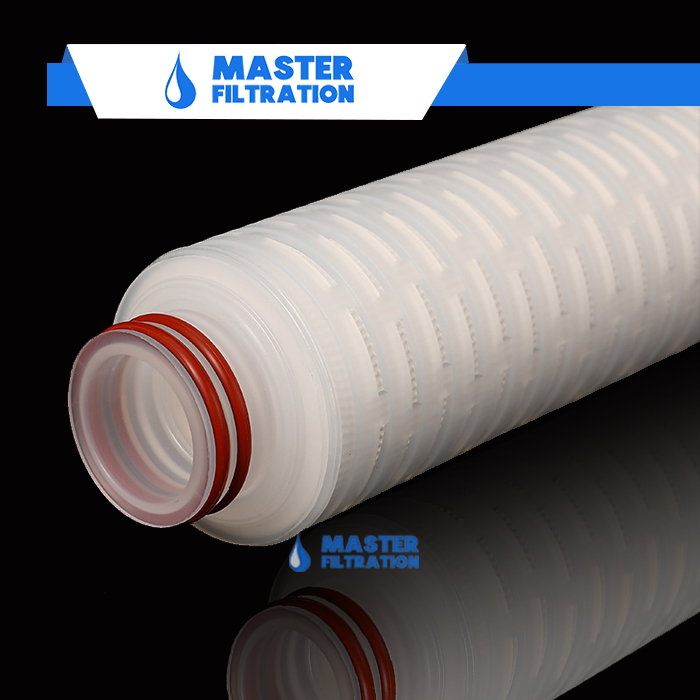

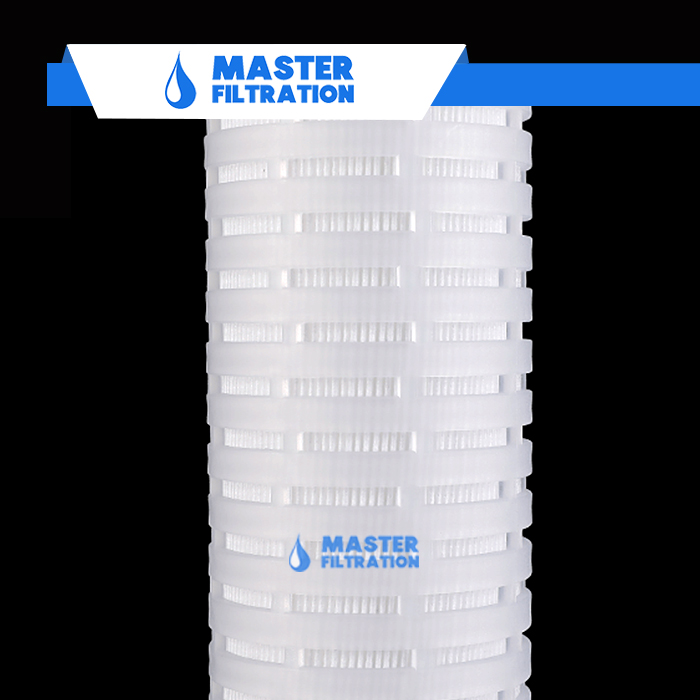

Master Filtration MFPB Series Fiber Glass Pleated Filter Cartridge is made of ultra-fine borosilicate glass fiber and diversion layer. Our GF filter cartridge has a special 3D capillary fiber structure and can absorb more water than the same fiber filter membrane. It can be used for liquid and gas filtration in chemical industry, medicine, energy, and other industries media filtration and water treatment.
- No adhesive, No chemical pollution
- Ultrasonic hot melting, no media shedding
- Adsorption more water, fast flow rate
- High temperature resistance
- Suitable for pre-filtration of fine particles in colloid and high viscosity liquid
|
Cartridge Dimensions |
Length(DOE end caps) |
10"- 254mm, 20"- 508mm, 30"-762 mm, 40"-1016mm |
|
Outer Diameter |
69mm |
|
|
Inner Diameter |
28mm 30mm |
|
|
Filtration Area(m2) |
0.5 m2 per 10' |
|
|
End cap: |
DOE,222,226,215 and others |
|
|

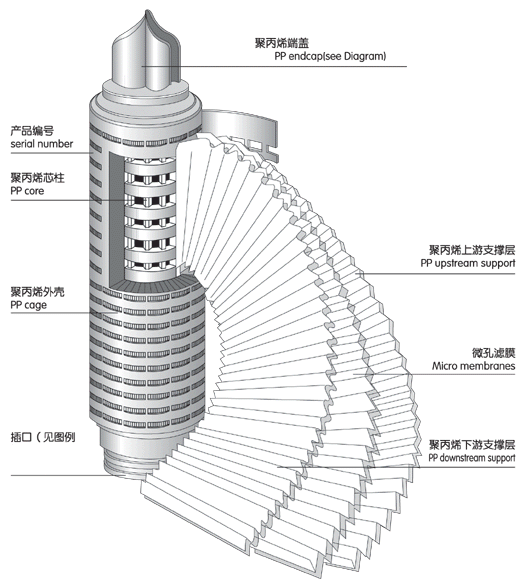

Materials |
Filter Media: |
Glass Microfiber(GF) |
|
Support Layers: |
Polypropylene |
|
|
Micron Rating: |
0.1,0.2, 0.45, 1.0, 3.0, 5.0,10um (customized) |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded. No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
85℃ (185°F) at △P≤1.0 bar (14psi) |
|
|
Max. Differential Pressure |
|
|
|
Normal Flow direction: |
4.2 bar (60 psi) at 25℃ (77°F) |
|
|
Reverse flow direction: |
2.1 bar (30 psi) at 25℃ (77°F). |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
In-line steam sterilization is not recommended, Flush with hot water at 82℃ (180°F) for 30 minutes |
|
|
Cartridge Safety |
Endotoxin: |
<0.25 EU/ml |
|
Extractables: |
0.03g/10" |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
End Cap Connection |
Seal material |
Core |
|
MFPB |
5=5" |
0.45= 0.45μm |
A = DOE |
S=Silicone |
P=PP |
|
10=10" |
1= 1μm |
B = 226/FIN |
E = EPDM |
S=Stainless steel |
|
|
20=20" |
3= 3μm |
C=226/Flat |
N=NBR |
|
|
|
30=30" |
5= 5μm |
D=226/Fin/SS |
V = Viton |
|
|
|
40=40" |
10= 10μm |
E=226/Flat/SS |
T=Teflon |
|
|
|
|
20= 20μm |
F=222/Flat |
F=E-FKM |
|
|
|
|
|
G=222/Fin |
|
|
|
|
|
|
H=222/Fin/SS |
|
|
|
|
|
|
I=222/Flat/SS |
|
|
|
|
|
|
J=213/Flat |
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
