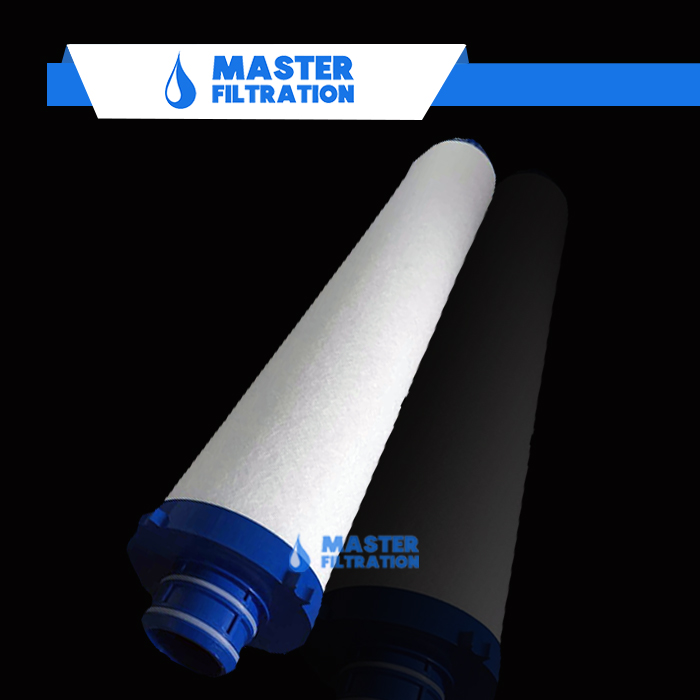

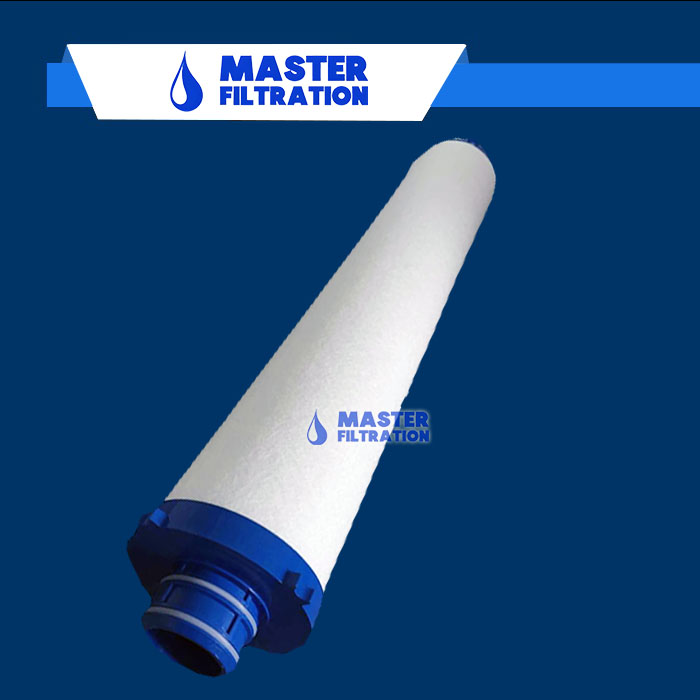

Master Filtration MFHT Series PP Melt Blown High Flow Filter Cartridge is made of polypropylene microfiber hot melt entangling, no any chemical adhesive. The fiber randomly self-bonds to form a three-dimensional microporous structure: surface loose, inner high density, gradient pore to realize deep filtration structure. High filtration precision & contaminant capacity, small pressure difference. It efficiently removes particles, rust and other impurities in liquid.









  • Gradient density structure, increase contaminant capacity
  • Strengthened surface fiber structure, fiber not easy to drop
  • PP Microfiber, high filtration precision
  • 100% new PP material, good chemical corrosion resistance
  • Hot melting technology, no any adhesive







Cartridge Dimensions

Length

 40"-1016mm; 60"- 1524mm;

Outer Diameter

6 inches (152mm)

Micron Rating:

1 5 10 15 20 40 70 100 um (customized)

Materials

Filter Media:

Polypropylene pp

Support Layers:

Polypropylene pp

Inner core:

Polypropylene pp

Outer Cage, End caps:

Polypropylene pp

Seal Method:

Thermal Bonded, No Adhesives

O-rings/gaskets:

Silicone, Nitrile, EPDM, Viton, Teflon, etc

Operating conditions

Normal Operating Temperature:

≤ 60℃(140°F)

Max.Operating Temperature.:

82℃ (PP)

Max. Differential Pressure

3.44bar@82℃

Recommended replacement pressure :

2.4Bar @ 20℃

Remark

We are factory and support customized specification





Model

Length

Removal Rating

End Cap Type

Core

MFHT

40=40"

 1=1μm

A=OD152mm

P=PP

60=60"　

3=3μm





5=5μm

B=OD155mm





10= 10μm





25= 25μm







50= 50μm







75= 75μm







100= 100μm







150= 150μm









Water Treatment

Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment.

Industry

LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing.

Power Plant

CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment.

Petrochemical

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Food & Beverage

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Oil & Chemicals

Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint.

Microelectronics

LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater.

Pharmaceuticals

Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery.
