Membrane Pleated Filter Cartridges

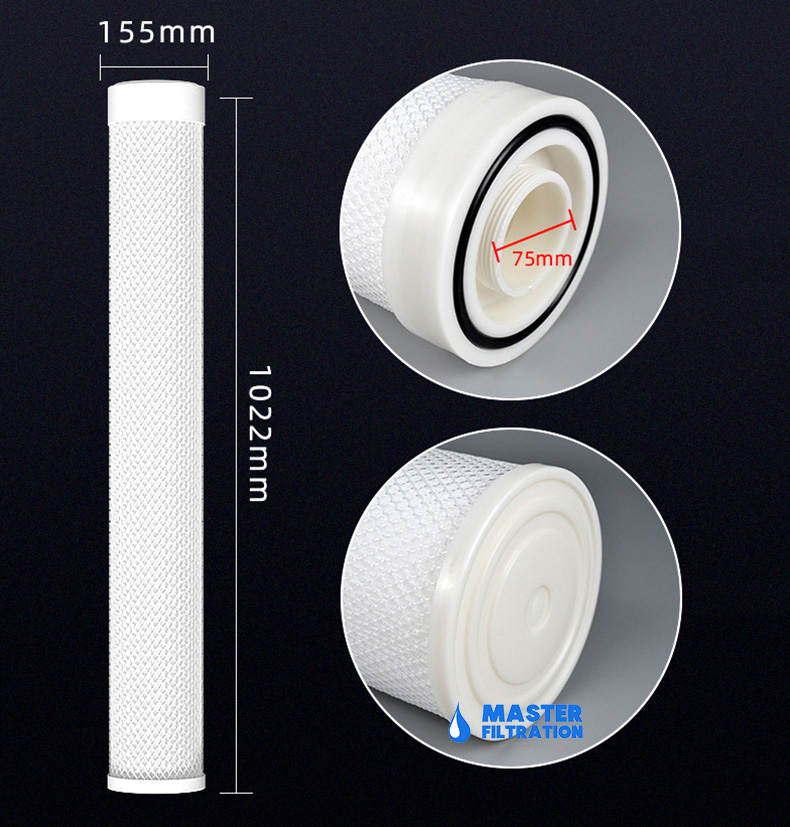

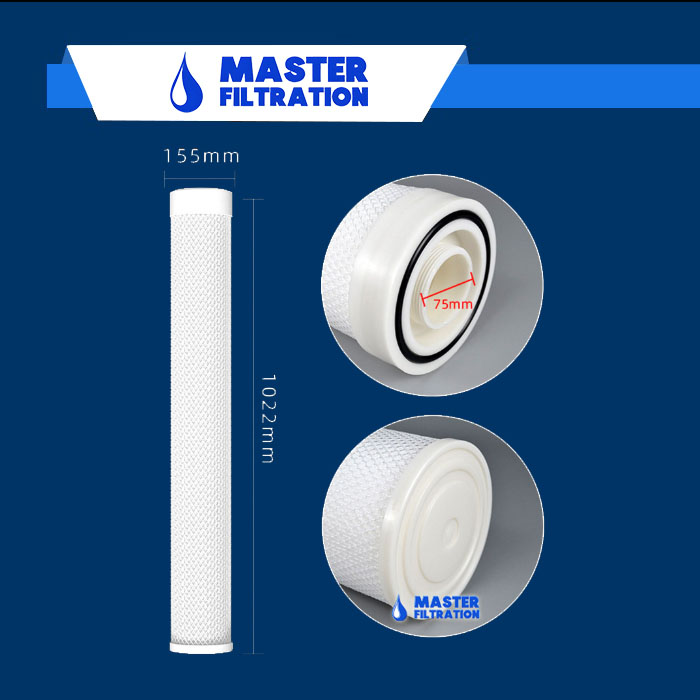

Master Filtration MFHC Series Customized Irregular Thread Pleated High Flow Filter Fartridge, adopting pleated deep fine membrane polypropylene membrane filter material, multi-layer gradient pore filter structure design, achieves higher contaminant dust capacity, longer service life time.
- Gradient density structure, increase contaminant capacity
- Strengthened surface fiber structure, fiber not easy to drop
- PP Microfiber, high filtration precision
- 100% new PP material, good chemical corrosion resistance
- Hot melting technology, no any adhesive
|
Cartridge Dimensions |
Length |
40"-1016mm; 60"- 1524mm; |
|
Outer Diameter |
6 inches (152mm) |
|
|
Micron Rating: |
1 5 10 15 20 40 70 100 um (customized) |
|
|
Materials |
Filter Media: |
Polypropylene pp |
|
Support Layers: |
Polypropylene pp |
|
|
Inner core: |
Polypropylene pp |
|
|
Outer Cage, End caps: |
Polypropylene pp |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
82℃ (PP) |
|
|
Max. Differential Pressure |
||
|
Recommended replacement pressure : |
2.4Bar @ 20℃ |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
End Cap Type |
Core |
|
MFHC |
40=40" |
1=1μm |
A=OD152mm |
P=PP |
|
60=60" |
3=3μm |
|
||
|
|
5=5μm |
B=OD155mm |
|
|
|
|
10= 10μm |
|
||
|
|
25= 25μm |
|
|
|
|
|
50= 50μm |
|
|
|
|
|
75= 75μm |
|
|
|
|
|
100= 100μm |
|
|
|
|
|
150= 150μm |
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
