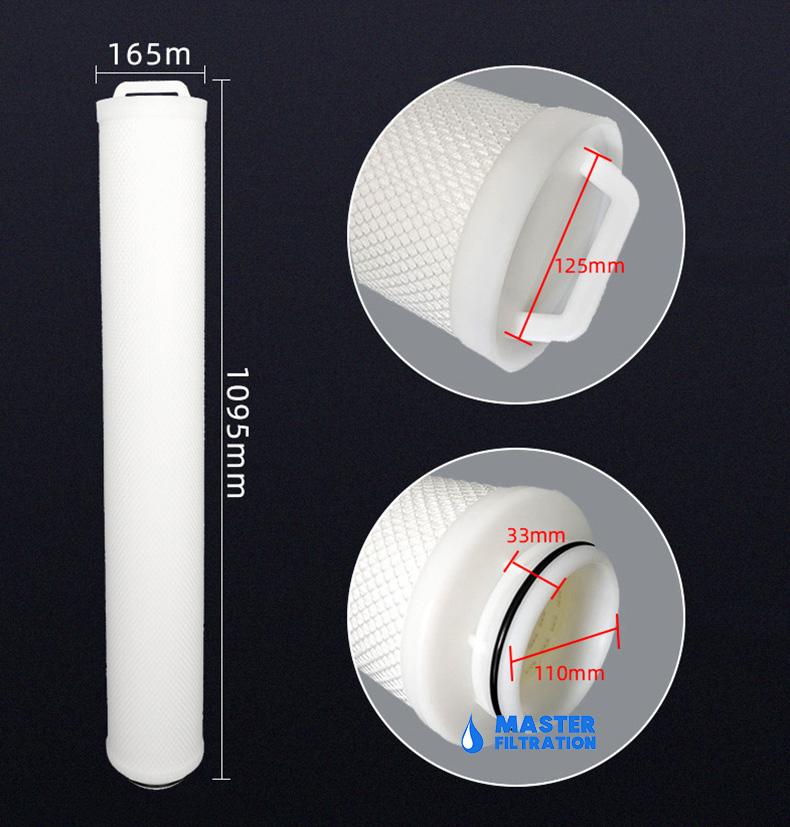

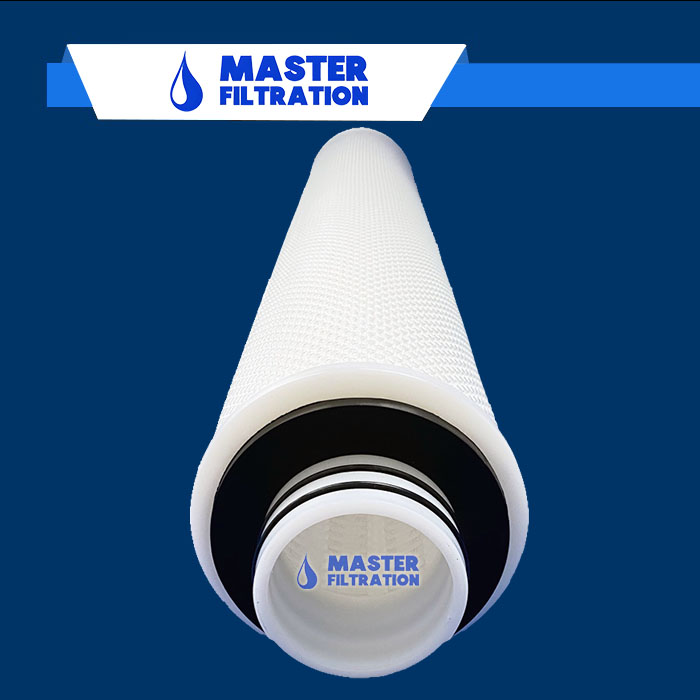

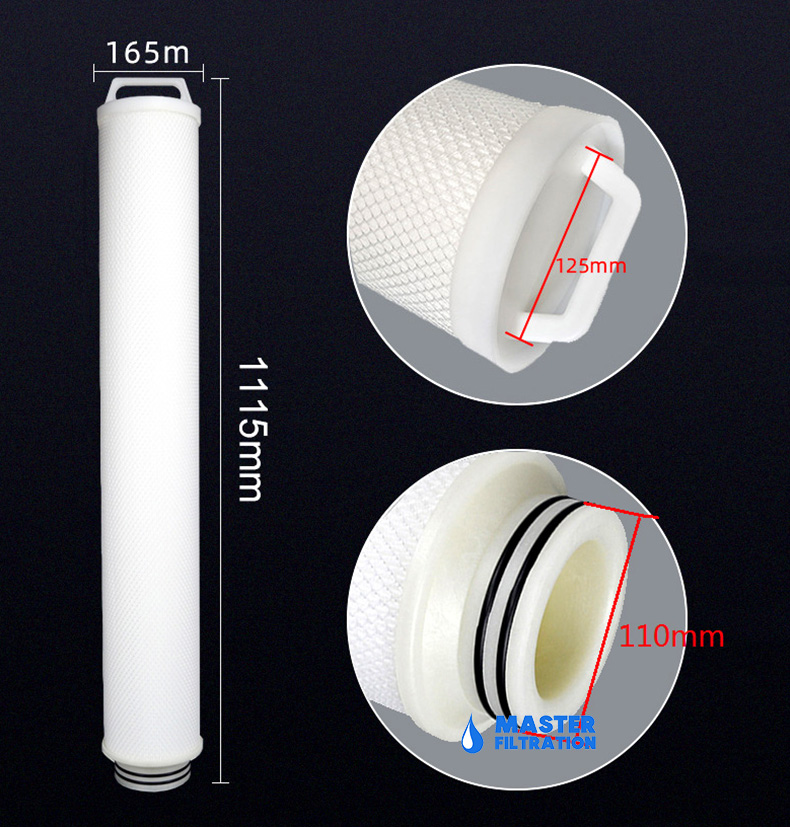

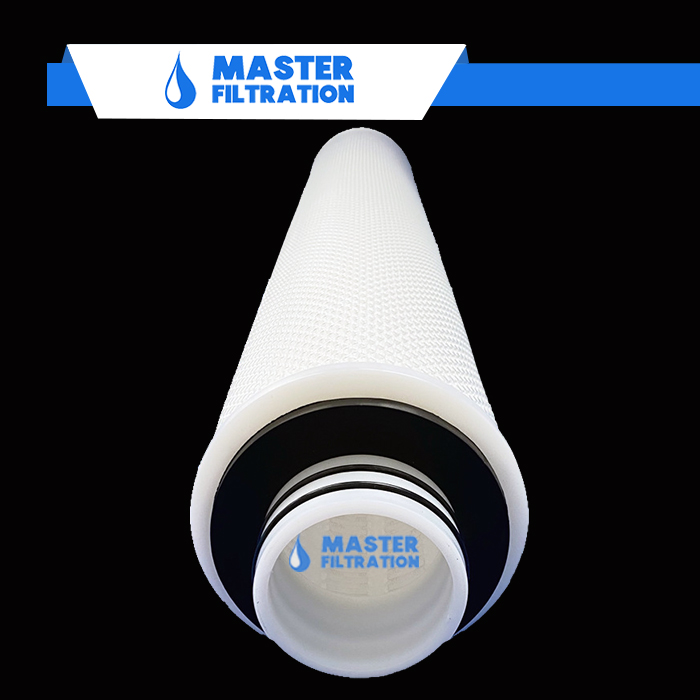

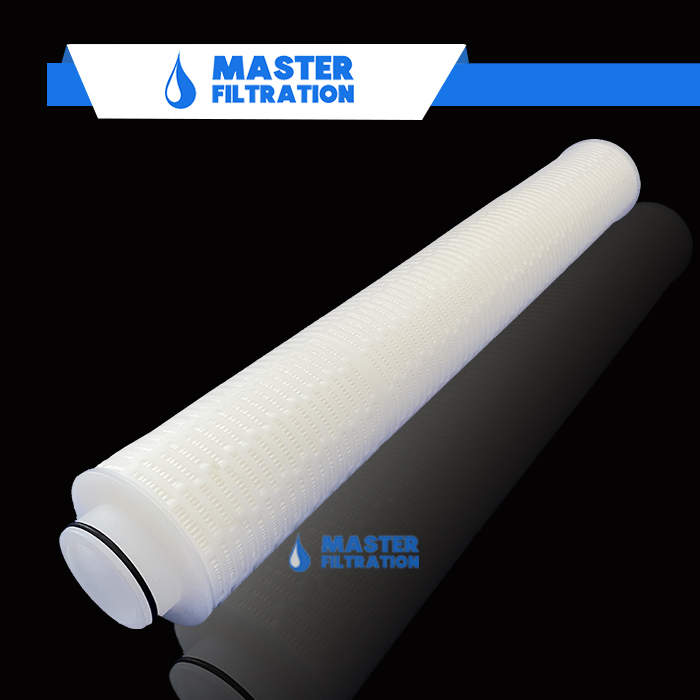

MFHF Series 6.5'' Large Dia High Flow Pleated Filter Cartridge Replaces Phosphor, adopting deep fine membrane polypropylene membrane filter media, gradient pore multilayer filter structure design, high contaminant dust capacity, long service life time.
- 6.5'' large dia meter, excellent chemical ability
- Large filtration area, high flow ability, low pressure drop
- Good contaminant and dust capacity
- Ultrasonic hot melting, no chemical glue
- PP inside support enforced frame
- Handle design, quick installation
|
Cartridge Dimensions |
Length |
40"-1016mm; 60"- 1524mm; |
|
Outer Diameter |
6.5 inches (165mm) |
|
|
Micron Rating: |
1 5 10 15 20 40 70 100 um (customized) |
|
|
Materials |
Filter Media: |
Polypropylene pp, fiber glass |
|
Support Layers: |
Polypropylene pp |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
82℃ (PP) ; 121℃ (Fiber glass) |
|
|
Max. Differential Pressure |
3.44bar@82℃ (PP); 3.44bar@121℃(Fiber glass) |
|
|
Recommended replacement pressure : |
2.4Bar @ 20℃ |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
End Cap Type |
Seal Material |
Core |
|
MFHF |
40=40" |
1=1μm |
A=Single O ring |
S=Silicone |
P=PP |
|
60=60" |
3=3μm |
E = EPDM |
|
||
|
|
5=5μm |
B=Double O-ring |
V = Viton |
|
|
|
|
10= 10μm |
F= E-FKM |
|
||
|
|
20= 20μm |
|
|
|
|
|
|
40= 40μm |
|
|
|
|
|
|
70= 70μm |
|
|
|
|
|
|
100= 100μm |
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industry |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
