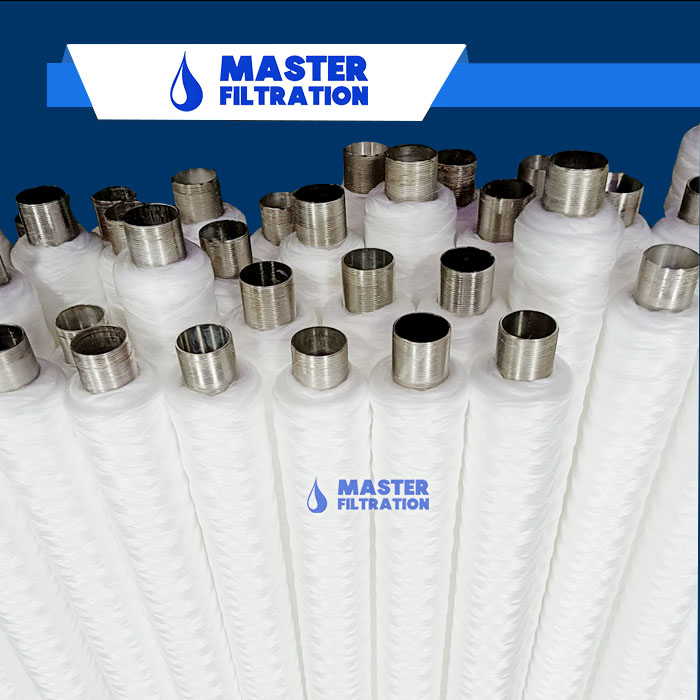

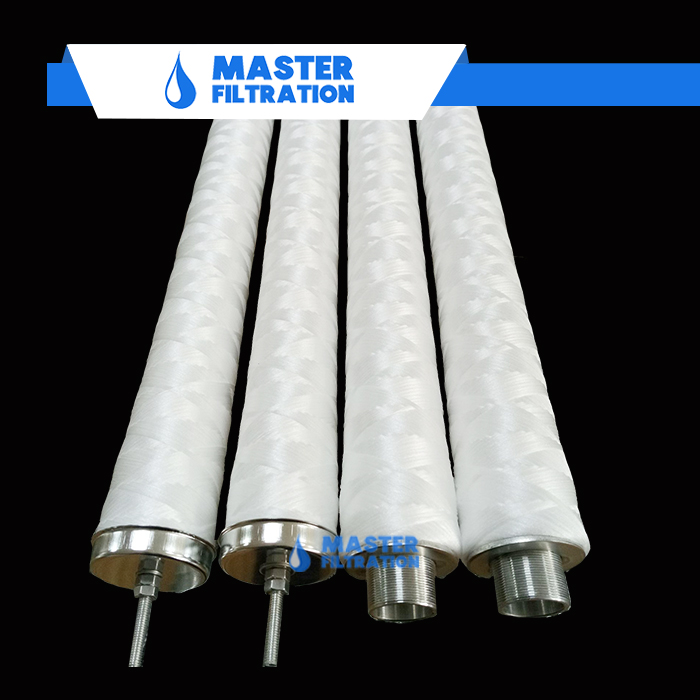

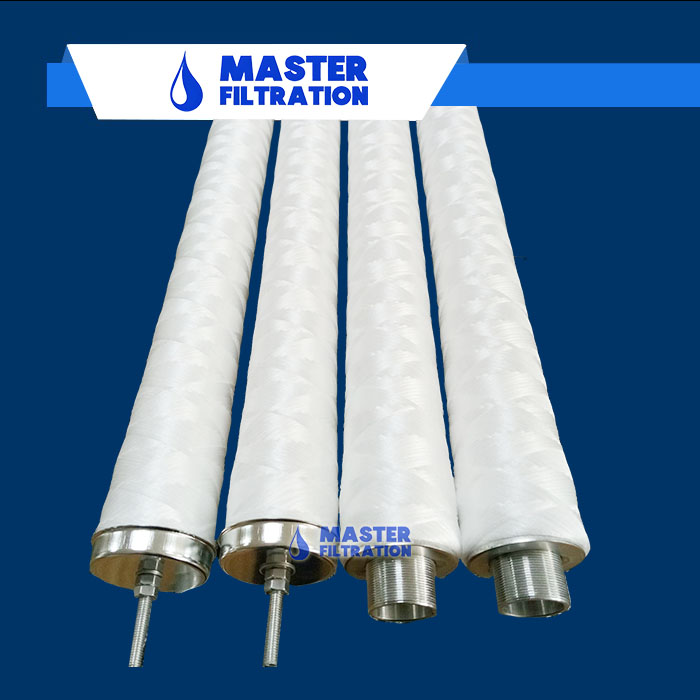

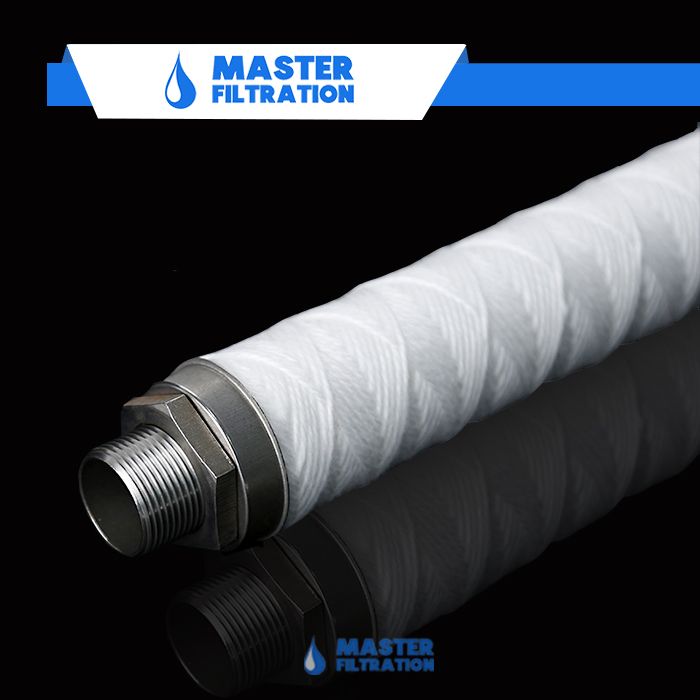

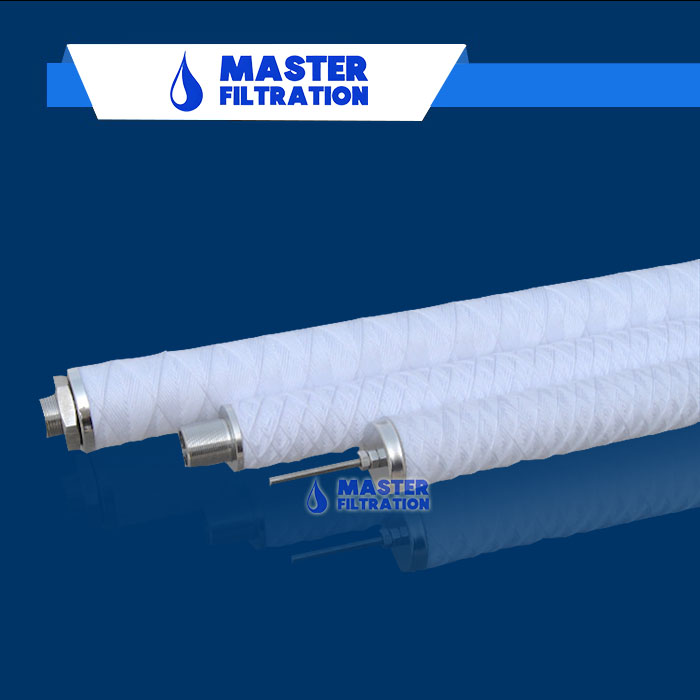

Master Filtration MFYC Series Condensate String Wound Filter Cartridge, is a deep filter cartridge and composed of textile fiber yarn(superfine polypropylene fiber, degreasing cotton fiber) wrapped on the stainless steel frame according to technical parameter demands. This yarn is made of high structural strength, not easy to fall off, able to be backwashed imported long fiber, making filter cartridge effectively remove suspended matter, particles, rust in liquid and mainly used in the power plant condensed water treatment for filtration of iron and corrosion in condensed water.
- The filter cartridge parameters are arranged and operated by computer to ensure the product comprehensive performance
- Stainless steel core and fittings with threaded interface,special design for backwash
- Low working resistance and pressure drop
- Product clean and smooth, no chaos
|
Cartridge Dimensions |
Length: |
1778mm(70") ; 1524mm (60") |
|
Outer Diameter: |
50 mm |
|
|
Inner Diameter: |
30mm 35mm |
|
|
Materials Of Construction |
Filter Media: |
Polypropylene/Degreasing Cotton/Glass Fiber |
|
Micron Rating: |
2um, 5um, 10um |
|
|
Inner core: |
Stainless Steel 304 316L |
|
|
Operating conditions |
Normal Operating Temperature.: |
≤50℃ |
|
Max.Operating Temperature.: |
|
|
|
Max. Differential Pressure |
0.25MPa Maximum operating temperature: 85°C |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Outside Diameter |
Inner Diameter |
Removal Rating |
Length |
End Cap |
Seal Material |
Core |
|
MFYC |
A=50mm |
30=30mm |
2=2μm |
60=60" |
Screw thread |
Blank=without |
S=Stainless steel |
|
|
35=35mm |
5=5μm |
70=70" |
|
|
|
|
|
|
|
10= 10μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
