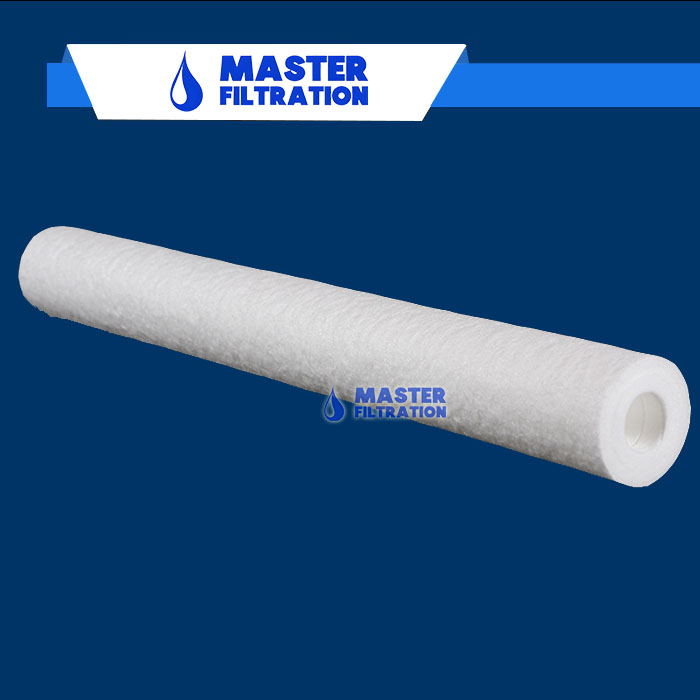

Master Filtration MFRO Series Rough Surface PP Melt Blown Filter Cartridge, uses a new technology to make pp filter cartridge surface rough, which greatly increases filtration area and improve filter cartridge mechanical strength & pressure resistance. it is especially suitable for high viscosity, high solid sediment liquid filtration and has high filtration precision and good particle interception effect.





  • Rough surface design, increase filtration area
  • Three layer gradient filtration structure,deep filtration and high contaminant capacity
  • PP particles directly hot melting, no any adhensive
  • 100% pure PP, good chemical compatibility
  • Able to match various end cap, strong installation adaptability
  • Economical and high efficient
  • Long serve life





Cartridge Dimensions

Length ( DOE end)

5''- 127mm,10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm

Outer Diameter

60mm ~115mm

Inner Diameter

28mm, 30mm

Filtration Area(m2)

0.4 m2 per 10"

End cap:

DOE, 226, 222, and other Ends

Materials Of Construction

Filter Media:

Melt Blown PolypropylenePP

Micron Rating:

1, 5, 10 ,20, 50, 70,100um

Inner core:

PolypropylenePP

O-rings/gaskets(Only for 226, 222 Ends):

Silicone, Nitrile, EPDM, Viton

Operating conditions

Normal Operating Temperature:

 50(122°F)

Max.Operating Temperature.:

80°C (176°F) at P 1.0 bar (14 psi)

Max. Differential Pressure



Normal Flow direction:

4.0 bar (58psi) at 25°C (77°F)

Reverse flow directi on:

2.0 bar (29psi) at 25°C (77°F).

PH Value compatibility:

1-13PH

Sterilization:

Not recommended

Remark

We are factory and support customized specification





Model

Length

Removal Rating

End Cap Connection

O.D

Seal material

Core

MFRO

5=5"

 1=1μm

Blank = DOE

60=60mm

S=Silicone

P=PP

10=10"

 3=3μm



63=63mm

 E = EPDM

Blank=No core

20=20"

 5=5μm



115=115mm

N=NBR



30=30"

10= 10μm





 V = Viton



40=40"

20= 20μm









50=50"

50= 50μm









60=60"

70= 70μm











100= 100μm











150= 150μm













Water Treatment

Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment.

Industrial

LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing.

Power Plant

CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment.

Petrochemical

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Food & Beverage

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Oil & Chemicals

Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint.

Microelectronics

LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater.

Pharmaceuticals

Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery.
