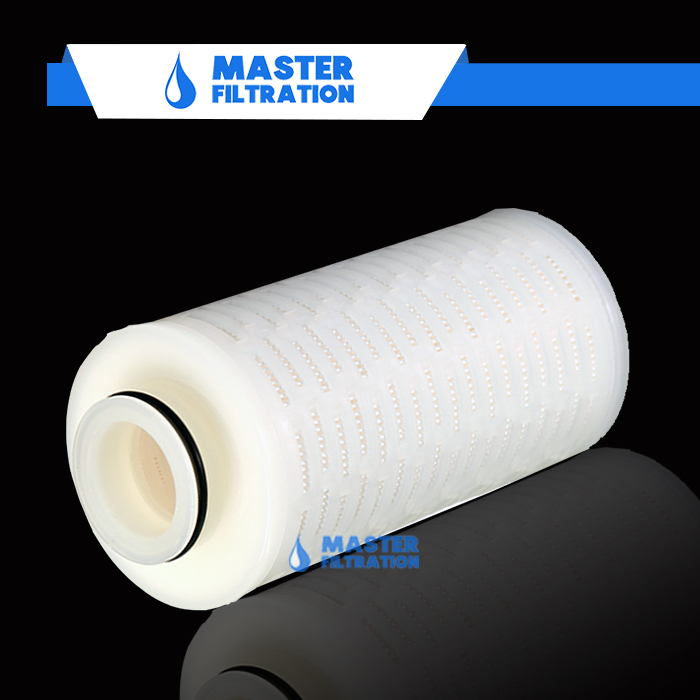

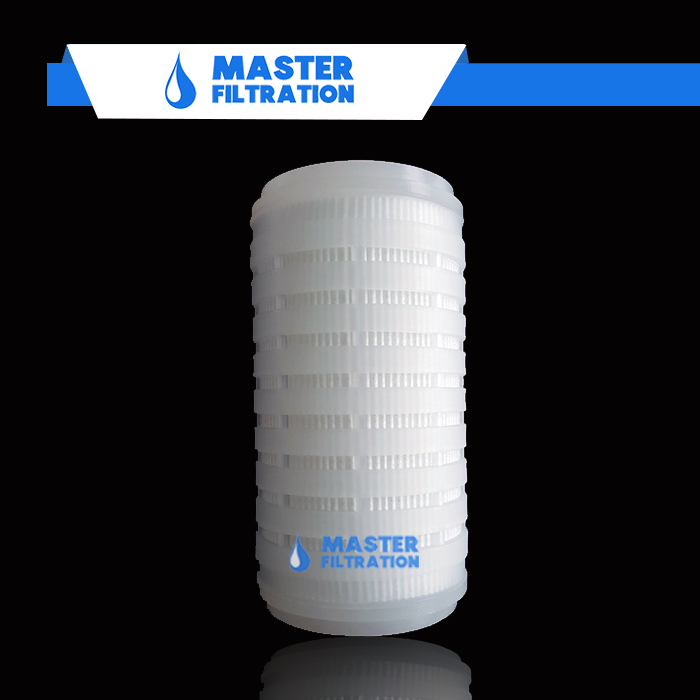

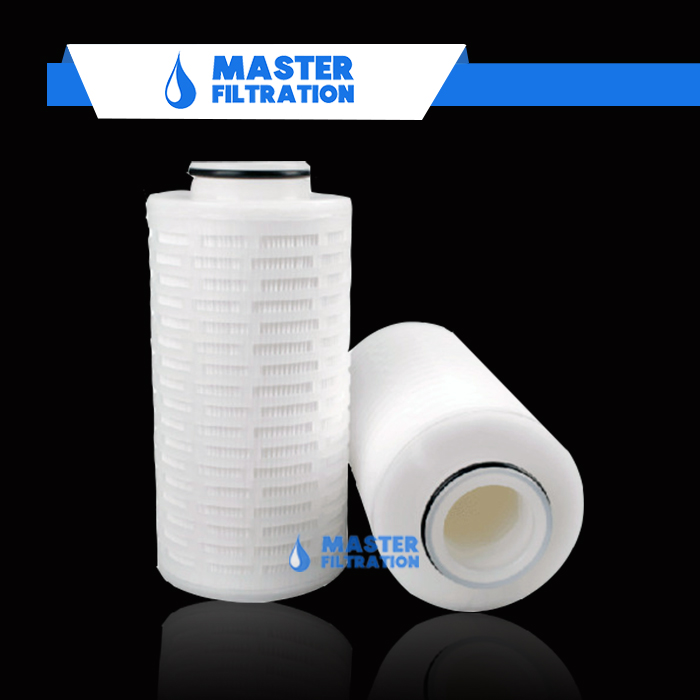

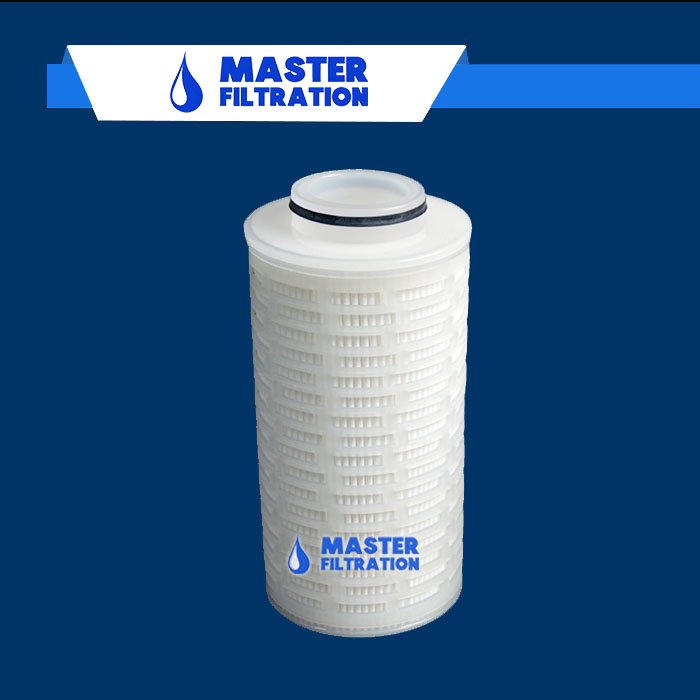

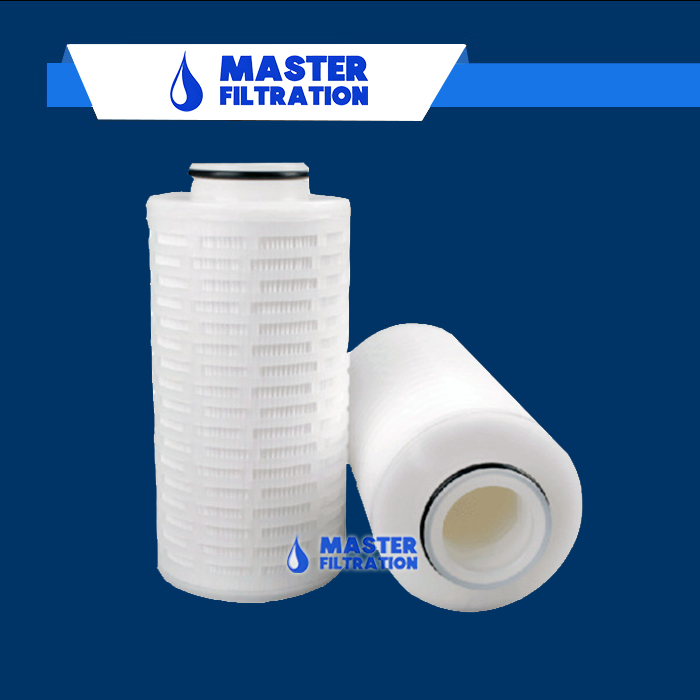

Master Filtration MFPJ Series 83mm 131mm Dia Jumbo Pleated Filter Cartridge, with 83mm, 131mm large dia, uses ultrafine polypropylene fiber membrane as filter media and adapts hot melting technology,no adhensive, glue contaminant. 100% PP new material, end cap, shell and inner frame make filter cartridge with good chemical compatibility. The filter media has PES, PTFE,PVDF,N6 , N66,PP,glass fiber optional.
- Stable physical and chemical properties, good chemical compatibility;
- High porosity, excellent contamination capacity
- Wide filtration accuracy and length setectable
- Good temperature resistance
- Gradient pore layer to block various size particles
- Hydrodynamic design, high efficiency
- More filter media selectable
|

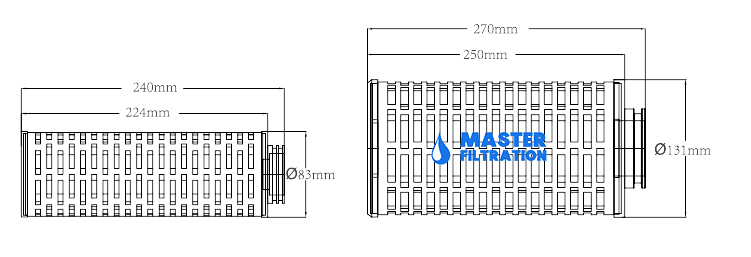

Cartridge Dimensions |
Length (DOE end caps) |
10"- 254mm |
|
Outer Diameter |
83mm 131mm |
|
|
Inner Diameter |
38mm, 55mm |
|
|
Filtration Area(m2) |
83mm dia:≥1 m2 per 10" |
|
|
|
131mm dia:≥2 m2 per 10" |
|
|
Materials |
Filter Media: |
PP, PES, PTFE, PVDF, Nylon, Fiber Glass |
|
Support Layers: |
Polypropylene |
|
|
Micron Rating: |
0.1, 0.2 0.45, 0.65, 1.0. 2.0, 3.0, 5.0, 10, 30, 40, 50. 70, 100 um (customized) |
|
|
Inner core: |
Polypropylene |
|
|
Outer Cage, End caps: |
Polypropylene |
|
|
Seal Method: |
Thermal Bonded, No Adhesives |
|
|
O-rings/gaskets: |
Silicone, Nitrile, EPDM, Viton, Teflon, etc |
|
|
End cap: |
DOE, 222,226,215 and others |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 60℃(140°F) |
|
Max.Operating Temperature.: |
80℃ (176°F) at △P≤1.0 bar (14psi) |
|
|
Max. Differential Pressure |
|
|
|
Normal Flow direction: |
4.2 bar (60 psi) at 25℃ (77°F) |
|
|
Reverse flow direction: |
2.1 bar (30 psi) at 25℃ (77°F). |
|
|
Cartridge Safety |
Endotoxin: |
<0.25 EU/ml |
|
Extractables: |
0.03g/10" |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Filter Media |
Removal Rating |
End Cap Type |
Seal material |
|||
|
PP |
PES |
Hydrophobic PTFE |
Hydrophilic PTFE |
|||||
|
MFPJ |
10=10" |
P = PP |
0.22 = 0.22μm |
0.04 = 0.04μm |
0.01 = 0.01μm |
0.05 = 0.05μm |
A = 222/Flat |
E = EPDM |
|
20=20" |
E= PES |
0.45 = 0.45μm |
0.1 = 0.1μm |
0.02 = 0.02μm |
0.1 = 0.1μm |
B = 226/Flat |
V = Viton |
|
|
|
S = Hydrophobic PTFE |
1 = 1μm |
0.22 = 0.22μm |
0.05 = 0.05μm |
0.22 = 0.22μm |
|
|
|
|
|
3 = 3μm |
0.45 = 0.45μm |
0.1 = 0.1μm |
0.45 = 0.45μm |
|
|
||
|
|
Q = Hydrophilic PTFE |
5 = 5μm |
0.65 = 0.65μm |
0.22 = 0.22μm |
1 = 1μm |
|
|
|
|
|
10 = 10μm |
1.2 = 1.2μm |
0.45 = 0.45μm |
|
|
|
||
|
|
|
20 = 20μm |
|
1 = 1μm |
|
|
|
|
|
|
|
30 = 30μm |
|
5 = 5μm |
|
|
|
|
|
|
|
40 = 40μm |
|
10 = 10μm |
|
|
|
|
|
|
|
50 = 50μm |
|
|
|
|
|
|
|
|
|
70 = 70μm |
|
|
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
