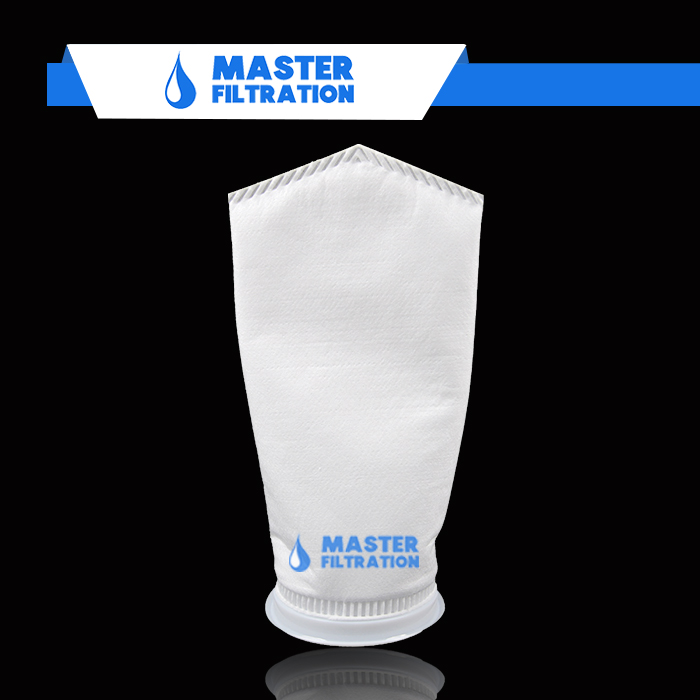

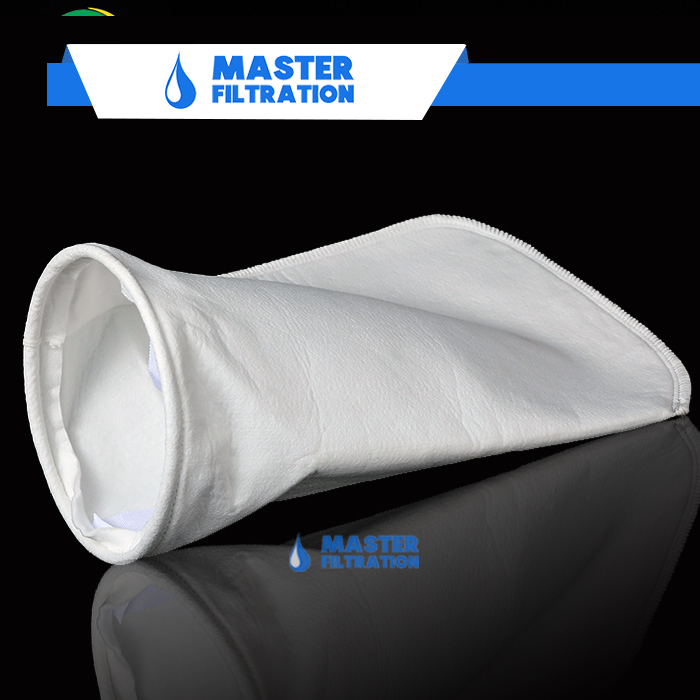

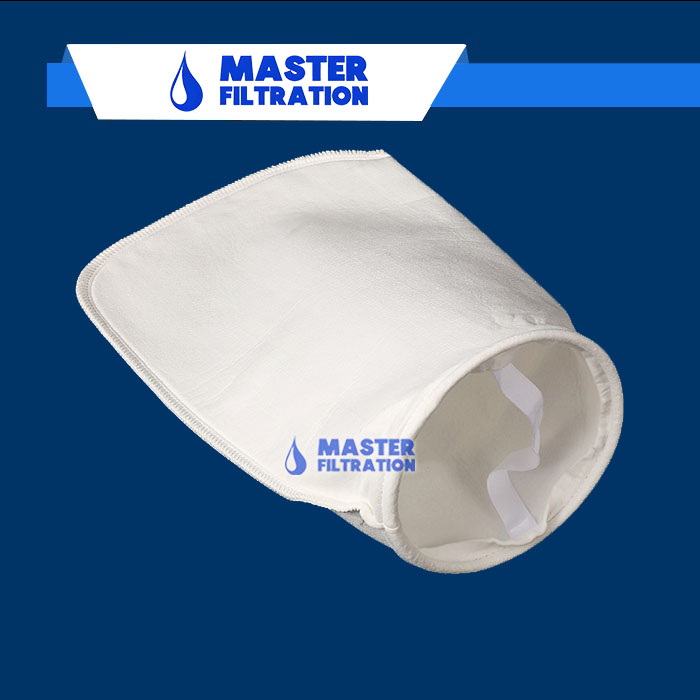

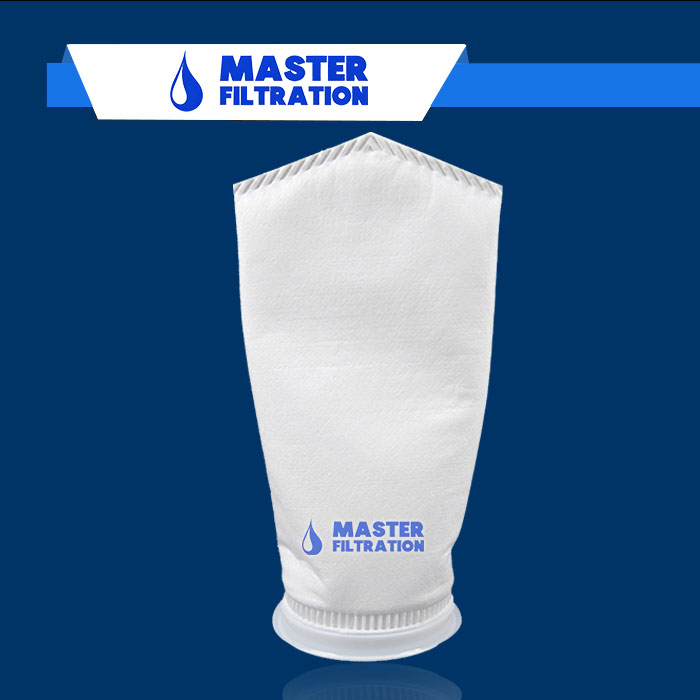

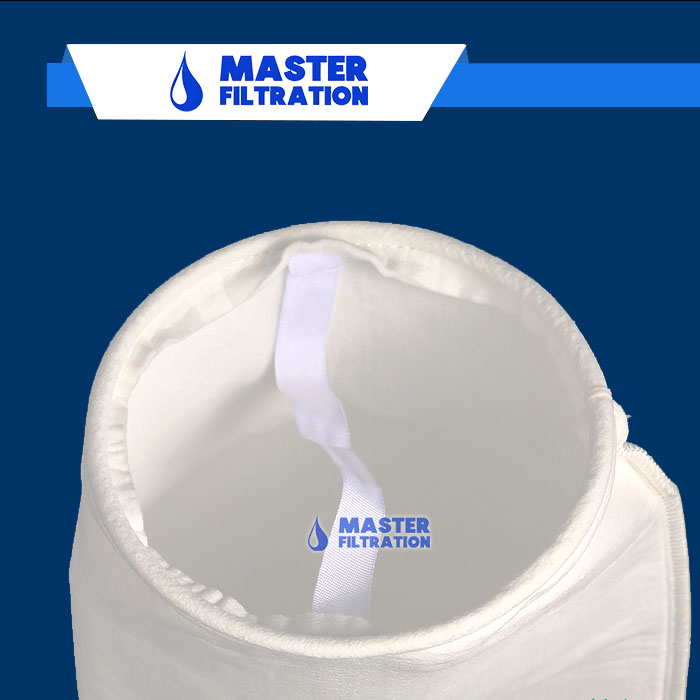

Master Filtration MFBP Series Non-woven PP PE Liquid Filter Bag, adapts more than 30 kinds of PP, PE different length fiber to form, mainly using in petrochemical industry, paint, biomedicine, automobile manufacturing, food and beverage and other fields for industrial particle removal. PP fiber filter material forms a highly fluffy three-dimension circuitous filter layer. Loose fiber structure increases contaminant capacity. This fiber material belongs to a compound interception way, which can effectively remove solid and soft particles. Large particles are blocked on the surface of fiber, while fine particles are captured in the deep layer of filter material to ensure the pp filter bag is not damaged due to the increase of pressure. Therefore, it has a high filtration efficiency. In addition, the high temperature surface singeing and calendering treatment, can effectively prevent the fiber from being affected by liquid high-speed impact during filtration, which is not only to avoid fiber dropping from be polluted, but also to reduce the pressure drop and increase the flow rate. The best replacement pressure difference is 0.10Mpa and the maximum is 0.16Mpa.
- High speed cooling no silicone oil sewing machine, without silicone oil pollution
- Good chemical corrosion resistance,able to be used in acid, alkali and other corrosive liquids
- High porosity, small fiber pore structure, good air permeability, high flow rate
- Simple operation, easy installation and replacement
- High filtration efficiency, effectively blocking small particles
- Wide filtration accuracy setectable:1～200um
- Surface singeing and calendering treatment, prevent fiber dropping
- 3D deep filtration structure, high contaminant capacity
|
Model: |
MFBP-1 |
MFBP-2 |
MFBP-3 |
MFBP-4 |
MFBP-5 |
|
Size: |
180*450mm |
180*810mm |
105*230mm |
105*380mm |
150*560mm |
|
Flow rate (M3/H): |
20 |
40 |
6 |
12 |
20 |
|
Filtration area |
0.25 ㎡ |
0.5 ㎡ |
0.09 ㎡ |
0.16 ㎡ |
0.25 ㎡ |
|
Filtration volume: |
8 L |
17 L |
1.3 L |
2.5 L |
8L |
|
Filtration media: |
Polyester(PE), PP |
||||
|

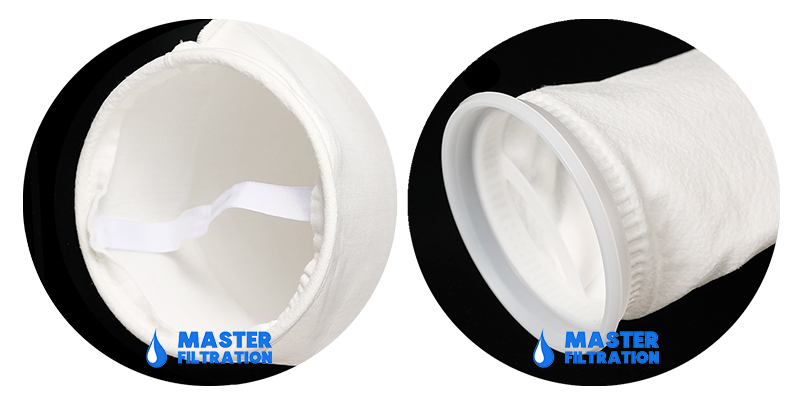

Ring material: |
Galvanized ring, SS304, PP or PE plastic ring |
||||
|
Filtration class: |
1,5,10,25,50,80,100,125,150,200micron (um) |
||||
|
Bag construction: |
Sewing/welding |
||||
|
Working temperature: |
PP<90℃；PE<130℃; |
||||
|
Application: |
Used for water, beverage, industry water, chemical liquid, oil, paint, seawater desalination, food, pharmaceuticals, biotech,dairy, brewing, semiconductor, RO filtration system. |
||||
|
Remark |
We are factory and support customized specification |
||||
|
MICRON, MESH CONVERSION CHART |
||||||
|
Micron |
1 |
2 |
5 |
10 |
15 |
20 |
|
Mesh |
12500 |
6250 |
2500 |
1250 |
800 |
625 |
|
|
|
|
|
|
|
|
|
Micron |
25 |
33 |
35 |
50 |
53 |
63 |
|
Mesh |
500 |
425 |
400 |
300 |
270 |
230 |
|
|
|
|
|
|
|
|
|
Micron |
80 |
88 |
100 |
125 |
150 |
200 |
|
Mesh |
200 |
170 |
150 |
120 |
100 |
80 |
|
|
|
|
|
|
|
|
|
Micron |
210 |
250 |
354 |
420 |
500 |
595 |
|
Mesh |
70 |
60 |
45 |
40 |
35 |
30 |
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
