Cartridge Dimensions

Length(DOE end caps)

10"- 254mm, 20"- 508mm, 3C"-762 mm, 40"- 1016mm

Outer Diameter

69mm

Inner Diameter

28mm, 30mm

Filtration Area(m2)

0.65 m2 per 10"

End cap:

DOE, 222,226,215 and others

Materials

Filter Media:

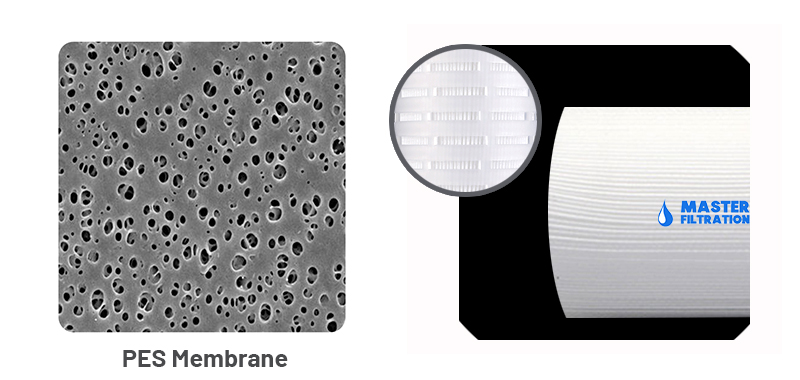

Asymmetric PES Membrane

Support Layers:

Polypropylene PP

Micron Rating:

0.04, 0.1, 0.2, 0.45, 0.65, 0.85, 1.2 um (customized)

Inner core:

Reinforced Polypropylene

Outer Cage, End caps:

Reinforced Polypropylene

Seal Method:

Thermal Bonded, No Adhesives

O-rings/gaskets:

Silicone, Nitrile, EPDM, Viton, Teflon, etc

Operating conditions

Normal Operating Temperature:

≤  60℃(1407)

Max.Operating Temperature.:

85℃ (185°F)at △P≤1.0 bar (14psi)

Max. Differential Pressure

Normal Flow direction:

4.2 bar (60 psi) at 25℃ (77T)

Reverse flow direction:

2.1 bar (30 psi) at 25°℃ (77°F).

PH Value compatibility:

2-13PH

Sterilization:

Steam Sterilization for 30 minutes at 121±2 ℃, Cumulative Time:8 hours;

Cartridge Safety

Endotoxin:

<0.25 EU/ml

Extractables:

0.03g/10"

Remark

We are factory and support customized specification

Integrity Test （PES Membrane）

Aperture(um)：

0.04

0.10

0.20

0.45

0.65

Minimum bubble point(Mpa)：

ethyl alcohol≥0.30

ethyl alcohol≥0.21

pure water≥0.34

pure water≥0.20

pure water≥0.14

Diffusion flow(ml/min 0.27Mpa)：

pure water≤25

* Test Liquid: ethyl alcohol or pure water at 25℃

Model

Length

Removal Rating

End Cap Connection

Seal Material

Core

MFPE

5=5"

0.1= 0.1μm

A = DOE

S=Silicone

P=PP

10=10"

0.2=0.2 μm

B = 226/FIN

 E = EPDM

S=Stainless steel

20=20"

0.22= 0.22μm

C=226/Flat

N=NBR

30=30"

 0.45= 0.45μm

D=226/Fin/SS

  40=40"

0.65= 0.65μm

E=226/Flat/SS

F=222/Flat

G=222/Fin

H=222/Fin/SS

I=222/Flat/SS

J=213/Flat

Water Treatment

Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment.

Industrial

LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing.

Power Plant

CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment.

Petrochemical

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Food & Beverage

Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration.

Oil & Chemicals

Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint.

Microelectronics

LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater.

Pharmaceuticals

Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery.
