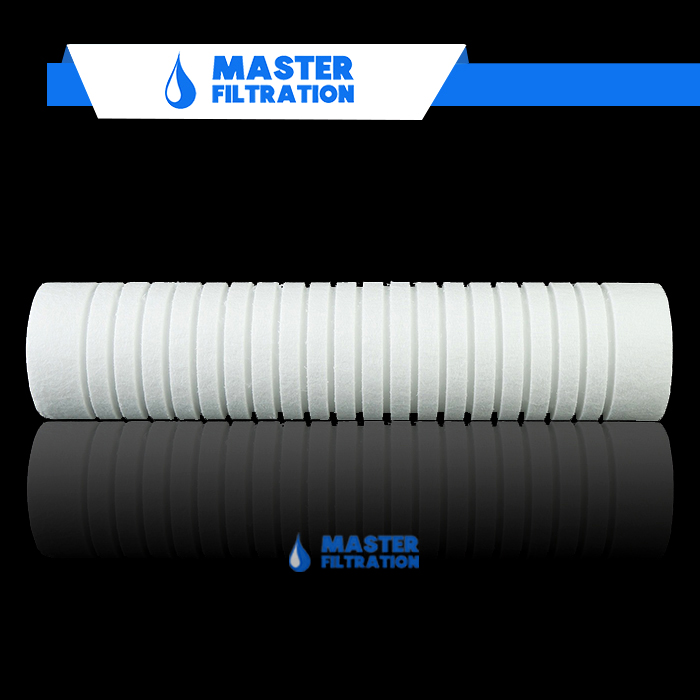

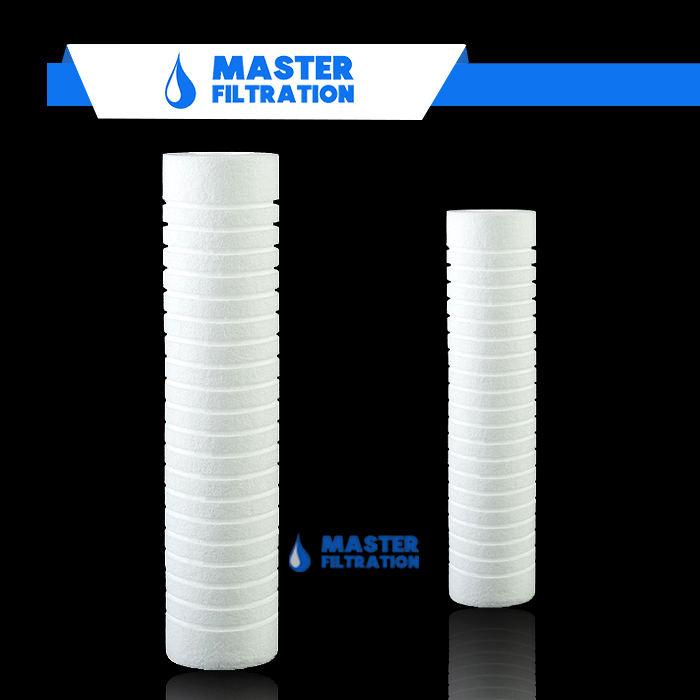

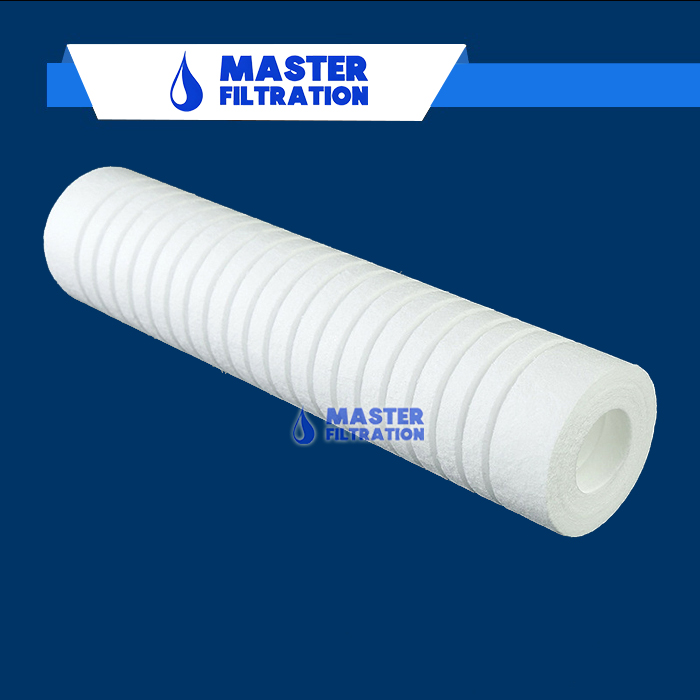

Master Filtration MFRG Series Grooved PP Melt Blown Filter Cartridge, uses grooving technology to groove at the surface of normal pp filter cartridge and adopts radient filtration structure, making the filter cartridge contaminant capacity is more than 3 times of normal pp melt blown filter cartridge.The grooving design also reduces the initial pressure drop and improve flow rate. It is especially suitable for high desity sediment liquid.
- Surface grooving design, increase filtration area
- Highly effective in filtering certain VOC's, rusty, red worm
- Three layer gradient filtration structure,deep filtration and high contaminant capacity
- PP particles directly hot melting, no any adhensive
- 100% pure PP, good chemical compatibility
- Able to match various end cap, strong installation adaptability
- Economical and high efficient
- Long serve life
|
Cartridge Dimensions |
Length |
5''- 127mm,10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm |
|
Outer Diameter |
60mm ~115mm |
|
|
Inner Diameter |
28mm, 30mm |
|
|
Filtration Area(m2) |
0.4 m2 per 10" |
|
|
End cap: |
DOE, 226, 222, and other Ends |
|
|
Materials Of Construction |
Filter Media: |
Melt Blown Polypropylene（PP） |
|
Micron Rating: |
1, 5, 10 ,20, 50, 70,100um |
|
|
Inner core: |
Polypropylene（PP） |
|
|
O-rings/gaskets(Only for 226, 222 Ends): |
Silicone, Nitrile, EPDM, Viton |
|
|
Operating conditions |
Normal Operating Temperature: |
≤ 50℃(122°F) |
|
Max.Operating Temperature.: |
80°C (176°F) at △P≤ 1.0 bar (14 psi) |
|
|
Max. Differential Pressure |
|
|
|
Normal Flow direction: |
4.0 bar (58psi) at 25°C (77°F) |
|
|
Reverse flow directi on: |
2.0 bar (29psi) at 25°C (77°F). |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Length |
Removal Rating |
End Cap Connection |
O.D |
Seal material |
Core |
|
MFRG |
5=5" |
1=1μm |
Blank = DOE |
60=60mm |
S=Silicone |
P=PP |
|
10=10" |
3=3μm |
A=226/FIN |
63=63mm |
E = EPDM |
Blank=No core |
|
|
20=20" |
5=5μm |
B=226/Flat |
115=115mm |
N=NBR |
|
|
|
30=30" |
10= 10μm |
C=222/FIN |
|
V = Viton |
|
|
|
40=40" |
20= 20μm |
D=222/Flat |
|
|
|
|
|
50=50" |
50= 50μm |
|
|
|
|
|
|
60=60" |
70= 70μm |
|
|
|
|
|
|
|
100= 100μm |
|
|
|
|
|
|
|
150= 150μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, Inkjet Printers, Sovlent Filtration, Chemical Filtration, Oil & Gas Filtration, Inkjet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
