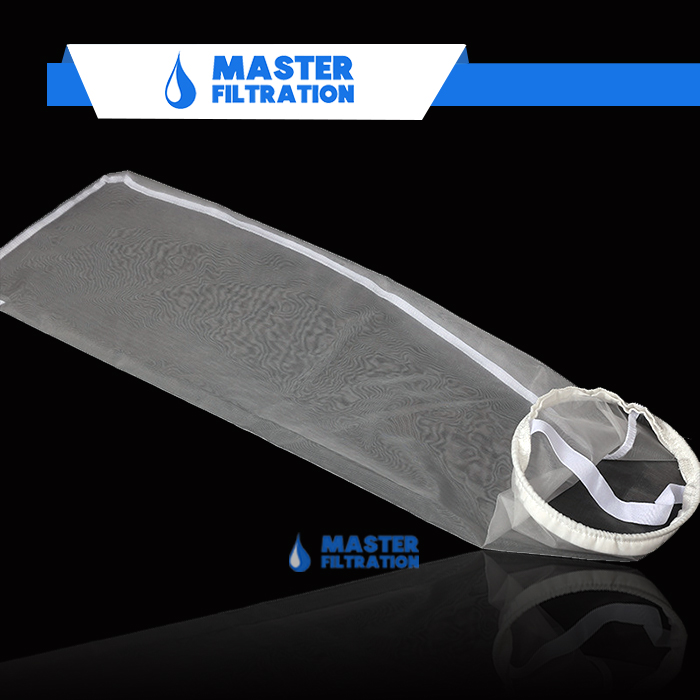

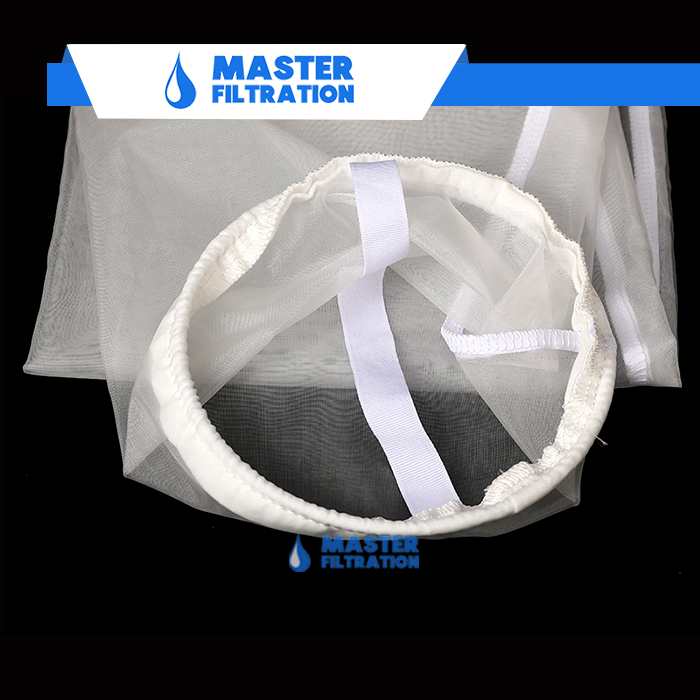

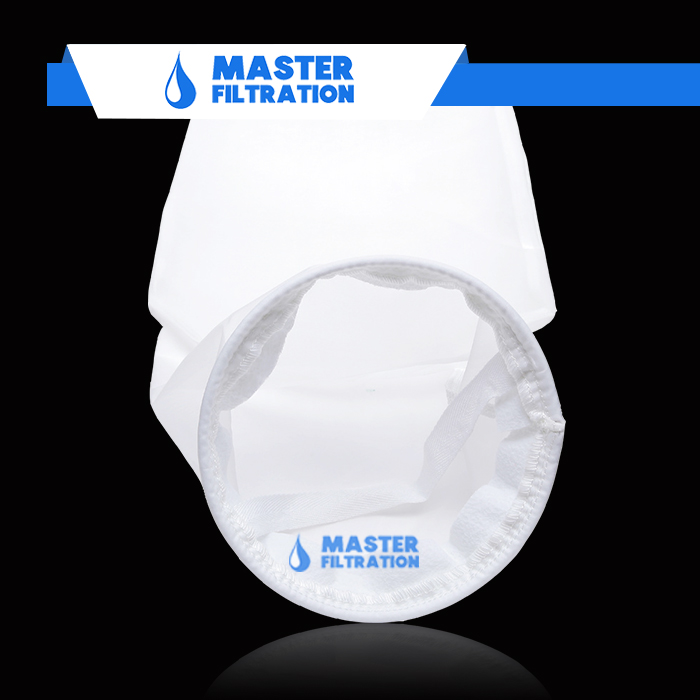

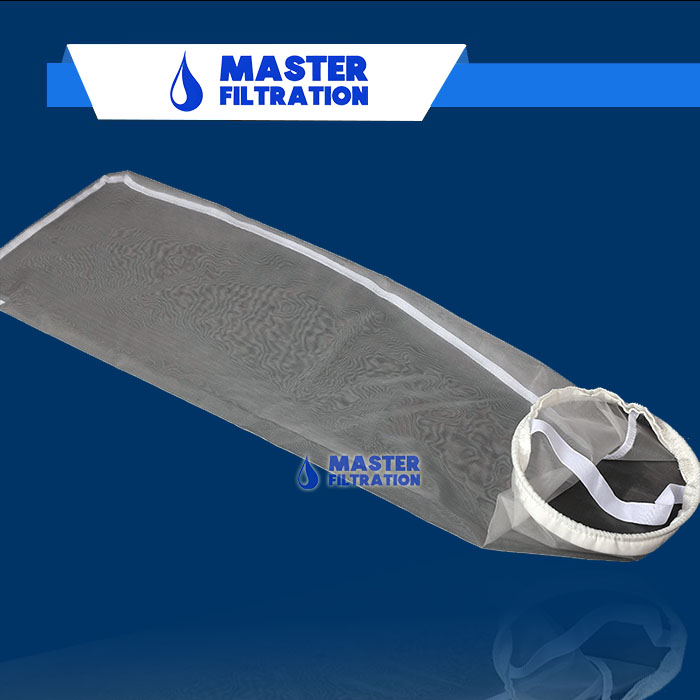

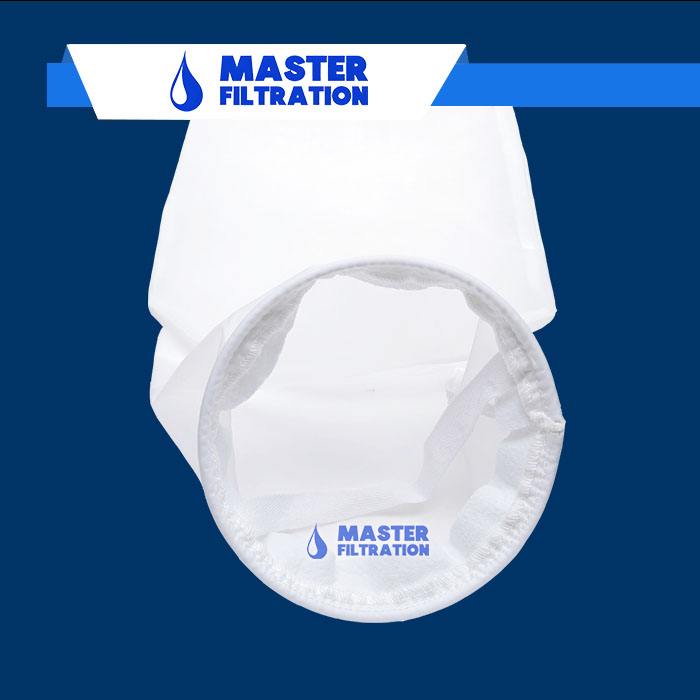

Master Filtration MFBN Series Nylon Liquid Filter Bag, uses nylon fiber through high temperature melting, spinning ect process to make for liquid and gas filtration, separation, purification. Unique edge wrapping technology greatly prevent bypass leakage.Nylon filter bag has high strength, wear resistance, high temperature resistance, corrosion resistance advantages, and is widely applied in chemical, food, pharmaceutical, electronics, water treatment and other fields.The best replacement pressure difference is 0.10Mpa and the maximum is 0.16Mpa.
- High speed cooling no silicone oil sewing machine, without silicone oil pollution

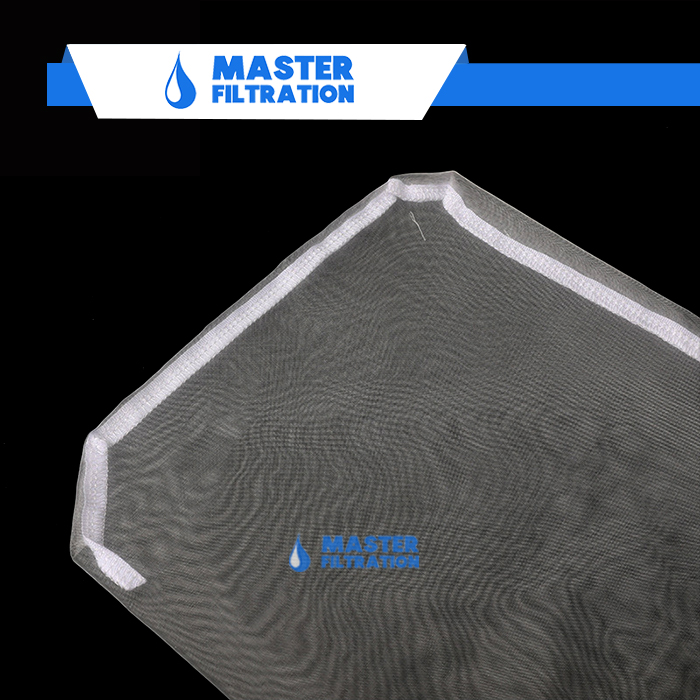

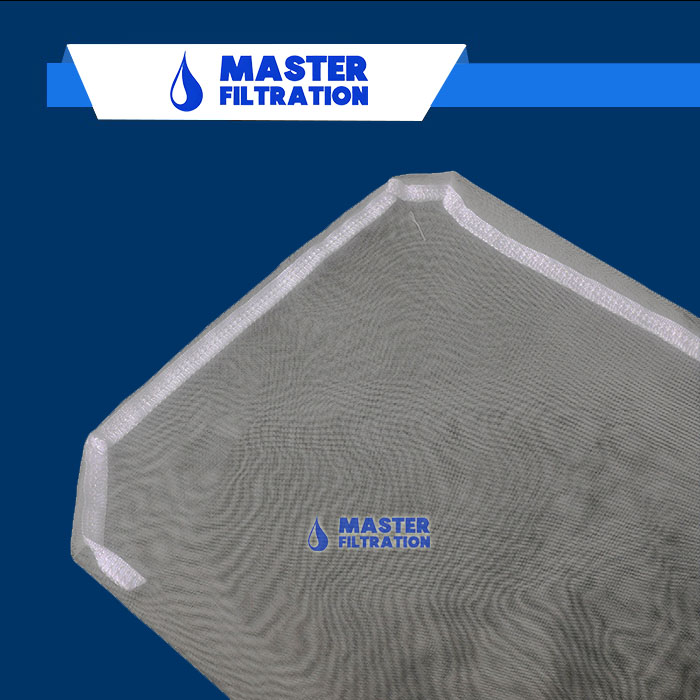

- Adapt edge wrapping technology, avoid bypass leakage
- High strength and wear resistance, not easy to break or damage in filtration.
- Good chemical corrosion resistance, able to work in acid, alkali liquid
- High temperature resistance, 150℃ to 170℃
- Nylon monofilament, easy to clean
- Washable, recycle to use, long service life
|
Liquid filter bag: |
MFBN-1 |
MFBN-2 |
MFBN-3 |
MFBN-4 |
MFBN-5 |
|
Size: |
180*450mm |
180*810mm |
105*230mm |
105*380mm |
150*560mm |
|
Filtration area |
0.25 ㎡ |
0.5 ㎡ |
0.09 ㎡ |
0.16 ㎡ |
0.25 ㎡ |
|
Filtration media: |
Nylon (NMO) |
||||
|
Ring material: |
Galvanized ring, SS304 |
||||
|
Filtration class: |
25,50,80,100,125,150,200,250,300,400,500,1000 micron (um) |
||||
|
Bag construction: |
Sewning |
||||
|
Working temperature: |
NMO<150℃ |
||||
|
Application: |
Used for water, beverage, industry water, chemical liquid, oil, paint, seawater desalination, food, pharmaceuticals, biotech,dairy, brewing, semiconductor, RO filtration system. |
||||
|
Remark |
We are factory and support customized specification |
||||
|
MICRON, MESH CONVERSION CHART |
||||||
|
Micron |
1 |
2 |
5 |
10 |
15 |
20 |
|
Mesh |
12500 |
6250 |
2500 |
1250 |
800 |
625 |
|
|
|
|
|
|
|
|
|
Micron |
25 |
33 |
35 |
50 |
53 |
63 |
|
Mesh |
500 |
425 |
400 |
300 |
270 |
230 |
|
|
|
|
|
|
|
|
|
Micron |
80 |
88 |
100 |
125 |
150 |
200 |
|
Mesh |
200 |
170 |
150 |
120 |
100 |
80 |
|
|
|
|
|
|
|
|
|
Micron |
210 |
250 |
354 |
420 |
500 |
595 |
|
Mesh |
70 |
60 |
45 |
40 |
35 |
30 |
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
