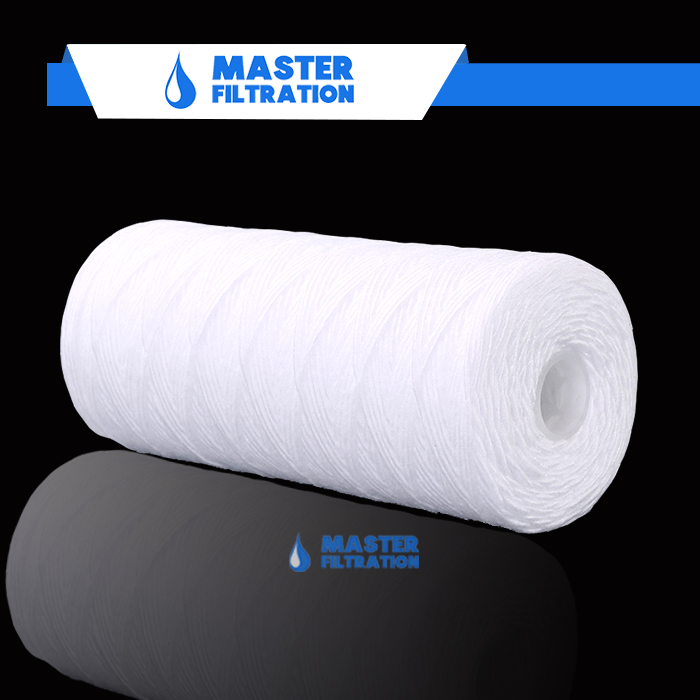

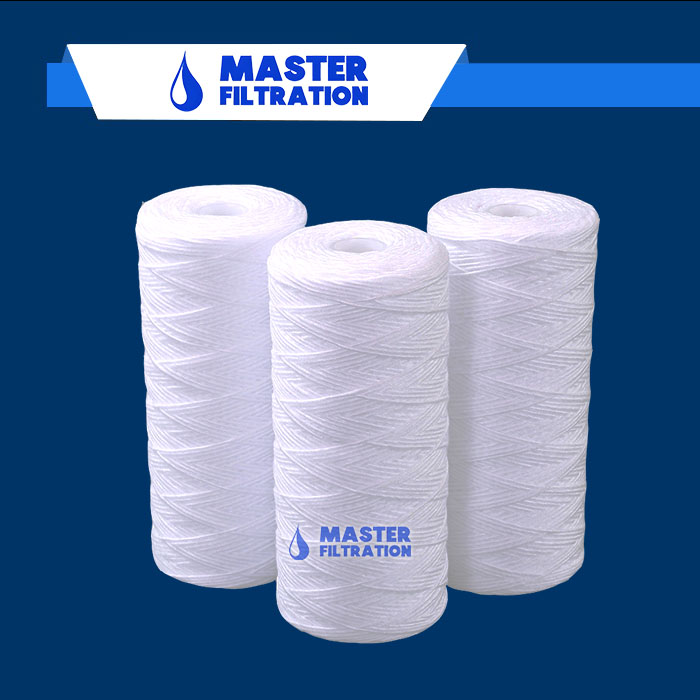

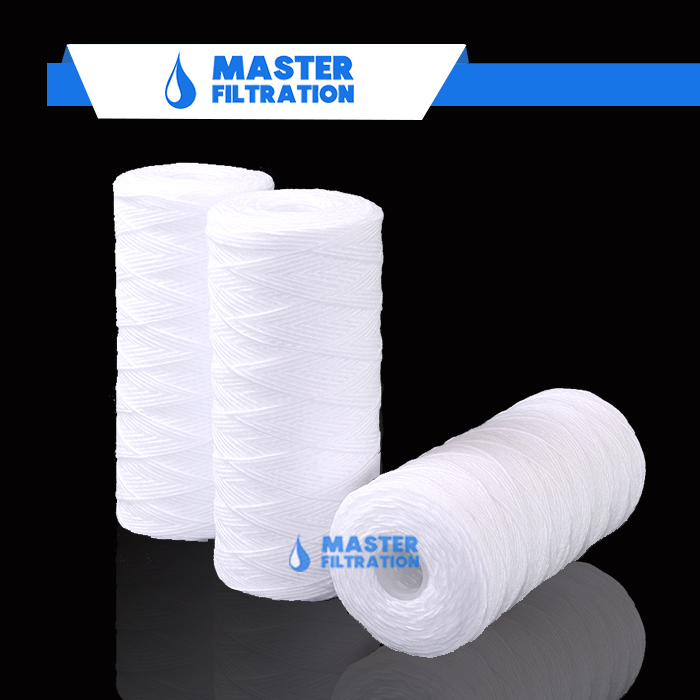

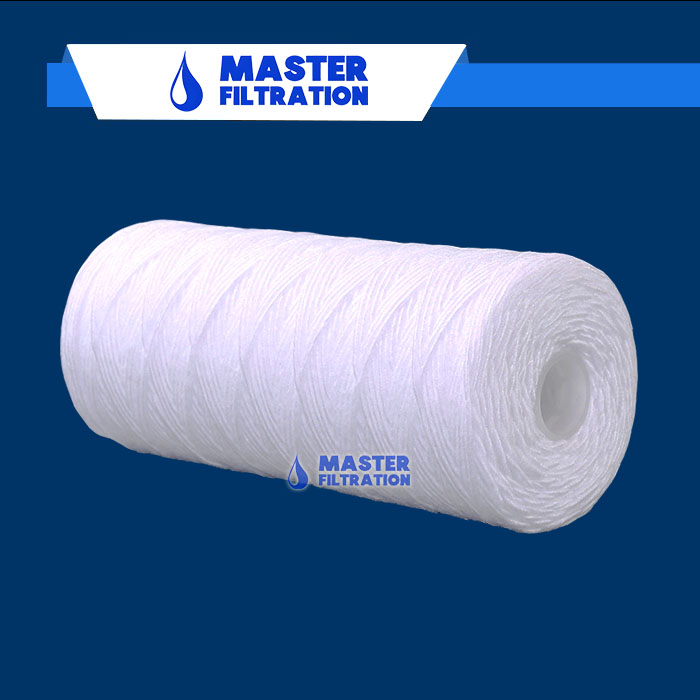

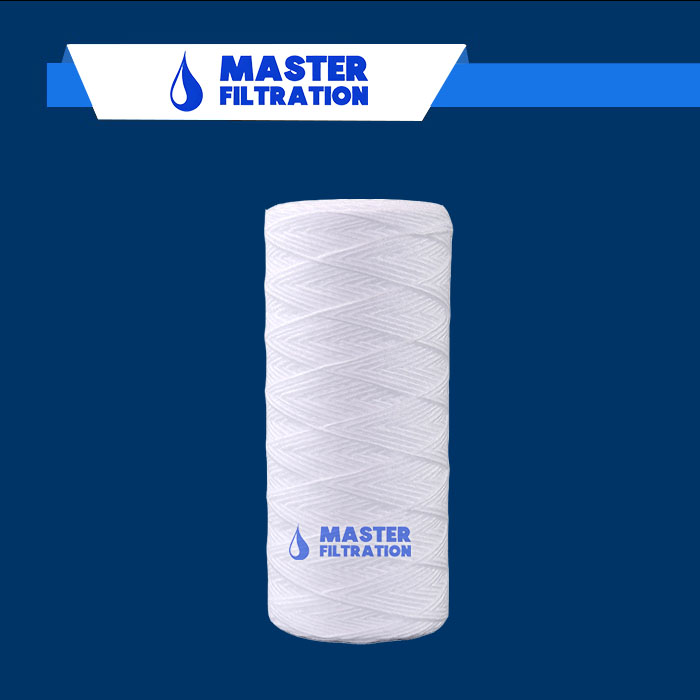

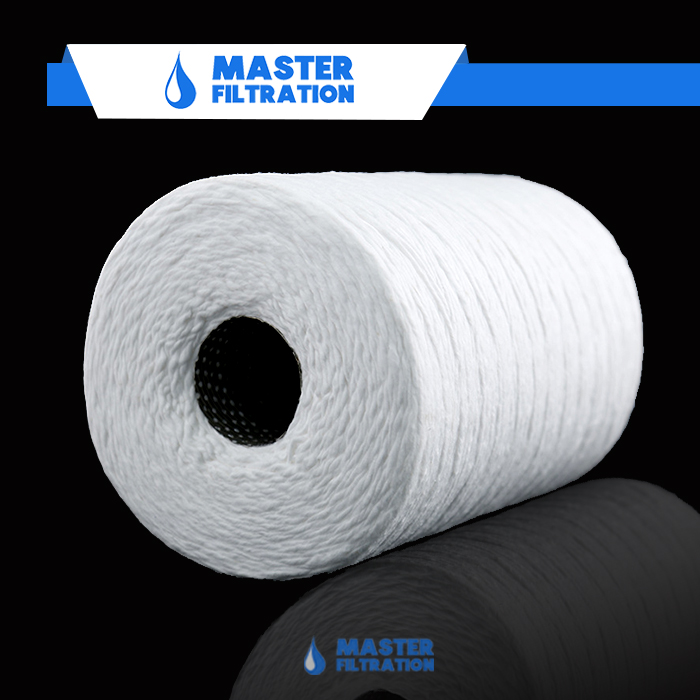

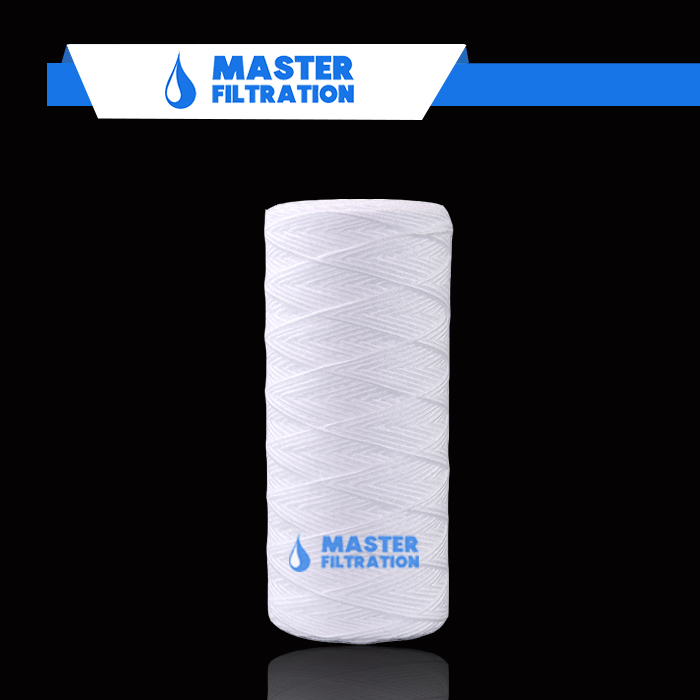

Master Filtration MFYJ Series Jumbo String Wound Filter Cartridge, with 115mm large diameter, a kind of depth filter cartridge, is made of fiber textile yarn (polypropylene fiber, degreasing cotton, fiber glass etc.) The yarn is wound according to technical parameters. The string wound filter cartridge is formed from large to small diamond shaped filtration channel. The size of the inner diamond shaped pore determines the precision of the filter cartridge. The smaller the diamond pore is, the higher the precision of the filter cartridge is. It is used for low viscosity, low sediment liquid filtration in seawater desalination pre-filter treatment, R0 system precision filter cartridge, power plant condensate water filter cartridge, wastewater filtration system, ect.
- Various filter media setectable, suitable for different liquid filtation
- Gradient filtration design, deep filtration
- 115mm big dia, high contaminant capacity
- Strong pressure resistance,up to 0.5MPa
- No adhensive to secondary pollution
- Good chemical compatibility
- Long serve life
|
Cartridge Dimensions |
Length(DOE Ends): |
10''- 254mm, 20''- 508mm, 30''-762 mm, 40''-1016mm, 50''-1270mm, 60''-1524mm,70''-1778mm |
|
Outer Diameter: |
115mm |
|
|
Inner Diameter: |
28mm, 30mm |
|
|
Filtration Area(m2): |
0.4 m2 per 10" |
|
|
End cap: |
DOE,222 226 and other ends |
|
|
Materials Of Construction |
Filter Media: |
Polypropylene/Degreasing Cotton/Glass Fiber |
|
Micron Rating: |
1, 5, 10, 20,30,50,70,100um |
|
|
Inner core: |
Polypropylene/Stainless Steel |
|
|
O-rings/gaskets(Only for 226, 222 Ends): |
Silicone, Nitrile, EPDM, Viton |
|
|
Operating conditions |
Normal Operating Temperature.: |
≤50℃ |
|
Max.Operating Temperature.: |
|
|
|
Polypropylene: |
80℃ (176°F) at △P≤ 1.0 bar (14psi) |
|
|
Degreasing Cotton: |
150 ℃(300°F) at △P≤ 1.0 bar (14psi) |
|
|
Glass Fiber： |
220°C (428°F) at △P≤ 1.0 bar (14 psi) |
|
|
Max. Differential Pressure |
|
|
|
Polypropylene: |
4.0 bar(58psi) at 25°C (77°F) |
|
|
Degreasing Cotton: |
5.0 bar(72psi) at 25°C (77°F) |
|
|
Glass Fiber： |
5.0 bar(72psi) at 25°C (77°F) |
|
|
PH Value compatibility: |
1-13PH |
|
|
Sterilization: |
Not recommended |
|
|
Remark |
We are factory and support customized specification |
|
|
Model |
Outside Diameter |
Innere Diameter |
Removal Rating |
Length |
End Cap |
Seal Material |
Core |
|
MFYJ |
G=115mm |
28=28mm |
1=1μm |
10=10" |
Blank = DOE |
S=Silicone |
p=pp |
|
|
30=30mm |
3=3μm |
20=20" |
|
E = EPDM |
S=Stainless steel |
|
|
|
|
5=5μm |
30=30" |
|
N=NBR |
||
|
|
|
10= 10μm |
40=40" |
|
V = Viton |
|
|
|
|
|
20= 20μm |
|
|
Blank=without |
|
|
|
|
|
30= 30μm |
|
|
|
|
|
|
|
|
50= 50μm |
|
|
|
|
|
|
|
|
75= 75μm |
|
|
|
|
|
|
|
|
100= 100μm |
|
|
|
|
|
|
|
|
150= 150μm |
|
|
|
|
|
Water Treatment |
|
Process Water, RO Pre-filtration, Condensate Water, Potable Water System, Wastewater Treatment, Sea Water Desalination, Ballast Water Treatment. |
|
Industrial |
|
LEDS, Wastewater, Pulp & Paper, Tank Venting, Fine Chemicals, Surface Finishing. |
|
Power Plant |
|
CVCS, RWCU, Spent Fuel Pool, Suppression Pool, Condensate Polishing, Steam Generator Blow Down, Stator Cooling Water Treatment, Liquid Radioactive Water Treatment. |
|
Petrochemical |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Food & Beverage |
|
Lube Oil Filtration, Amine Sweetening, Chemicals Filtration, Desiccant Dehydration, Completion Fluid Filtration, Oil & Natural Gas Filtration, Injection Well Water Filtration. |
|
Oil & Chemicals |
|
Painting, In kjet Printers, Solvent Filtration, Chemical Filtration, Oil & Gas Filtration, Ink jet Inks Filtration, Automotive Painting & Paint. |
|
Microelectronics |
|
LCD Cleaning, CMP Filtration, Flat Panel Film, Semiconductor Wastewater, Electronic Chemical Filtration, Typical Ultrapure Water System, Wafer Grinding/Cutting Wastewater. |
|
Pharmaceuticals |
|
Opthalmic Filtration, Pharmaceutical Water, Blood Plasma Product, Formulation LVP/SVP Filtration, Sterile Filtration & Bioburden Control, API's, Intermediates, Fermentation Broths, Precious Metal Catalyst Removal/Recovery. |
